Application planning
6.3 Configuration versions

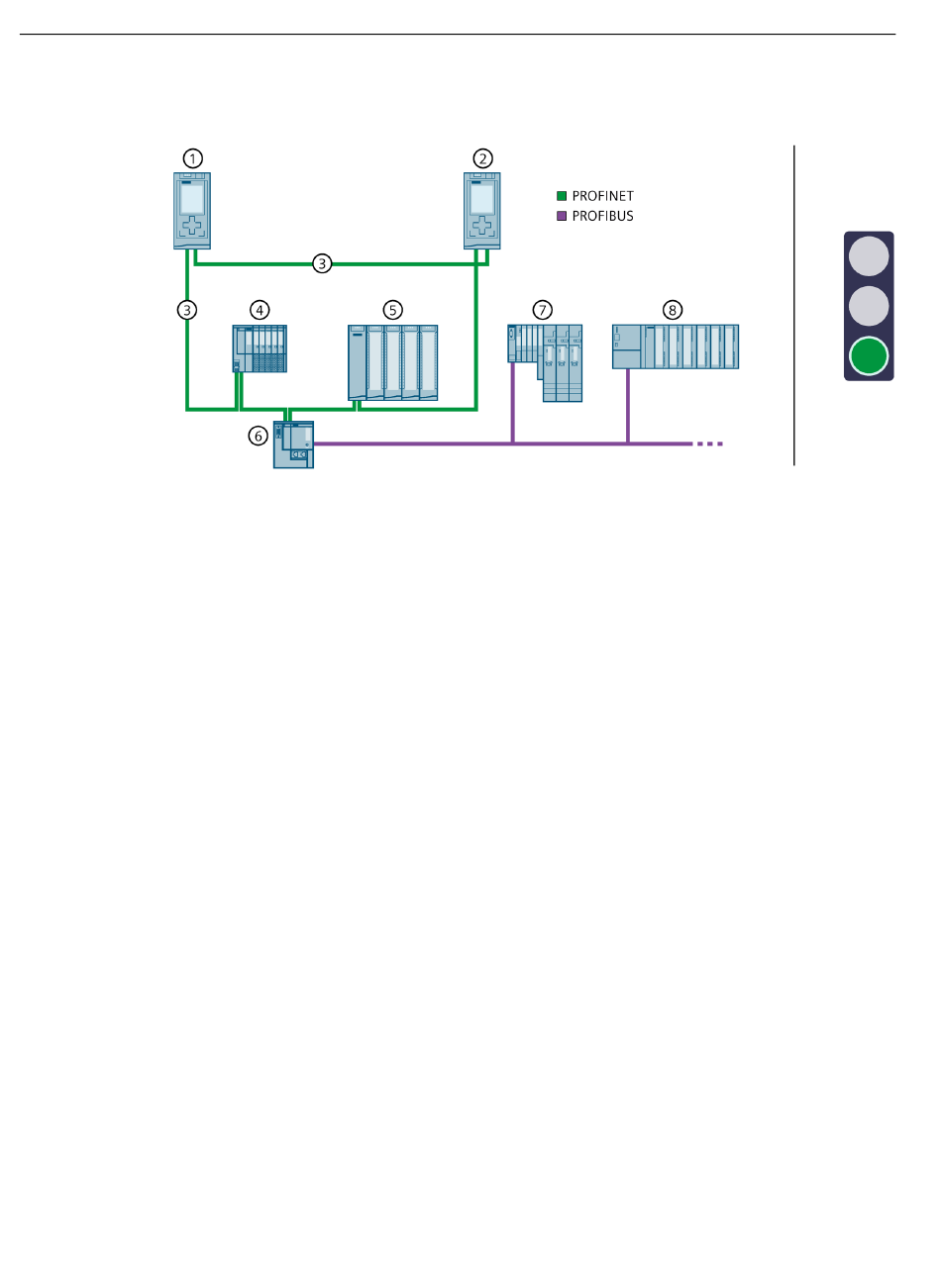

S7-1500R configuration with IE/PB LINK HA
①
②
③
④
⑤
⑥
⑦
⑧
Figure 6-12
148
CPU 1
CPU 2
PROFINET cable (redundancy connections, PROFINET ring)
IO device ET 200SP (with system redundancy S2)
IO device ET 200MP (with system redundancy S2)
IE/PB LINK HA (with system redundancy S2)
DP Device ET 200S
DP Device ET 200M
S7-1500R configuration with IE/PB LINK HA
S7-1500R/H redundant system
