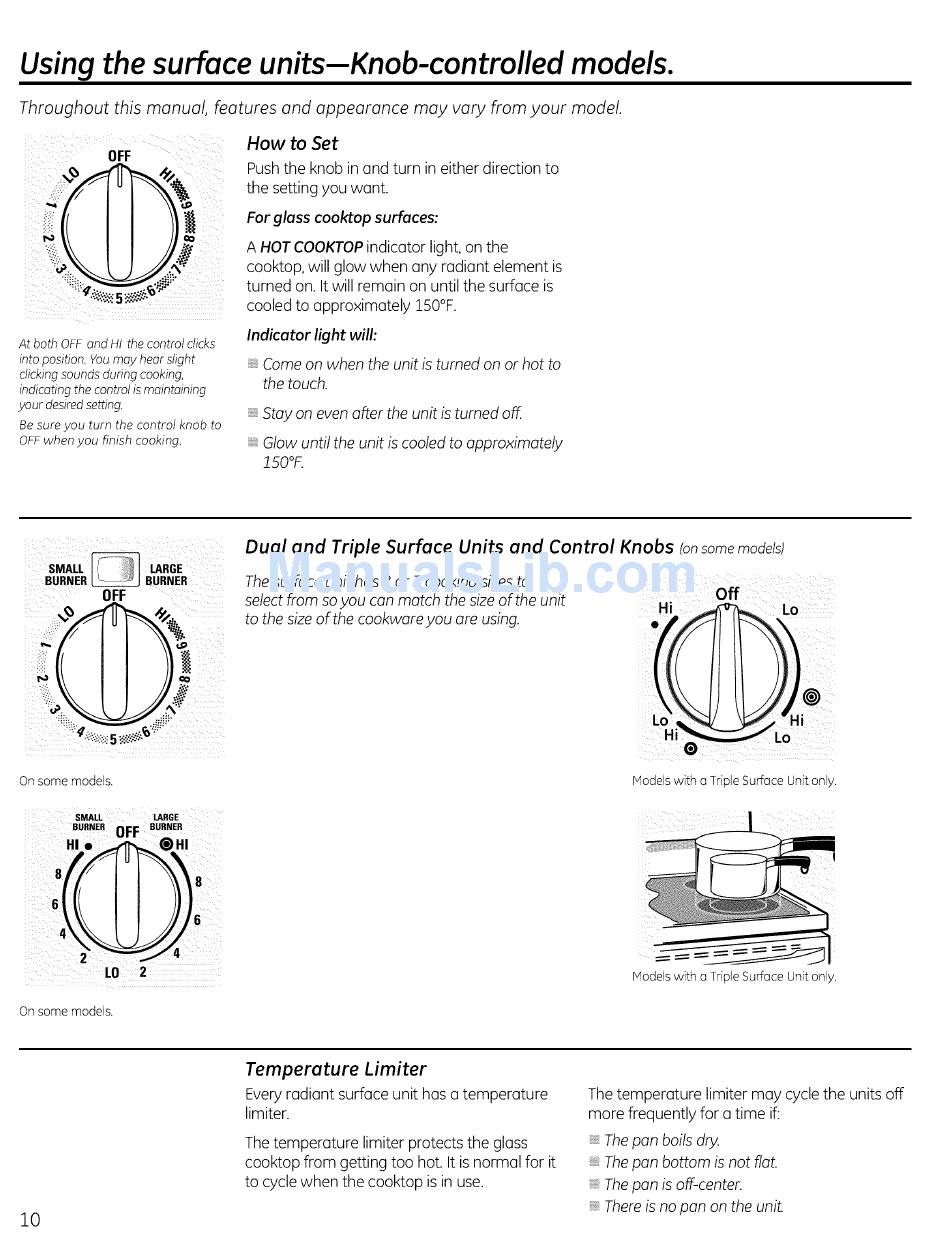

Using the surface units-Knob-controlled models.
Throughout this manual, features and appearance may vary from your model.
OFF
ii__%111111_i_i i
!_ i .,i:ili '_ _ii_
Z/ I I //
At both OFF and HI the control clicks
into position. Youmay hear slight
clicking sounds during cooking,
indicating the control is maintaining
your desiredsetting.
Be sure you turn the control knob to
OFFwhen you finish cooking.
How to Set
Pushthe knob in and turn in either direction to
the setting you wont.
For glass cooktop surfaces:
A HOTCOOKTOPindicator light, on the
cooktop, will glow when any radiant element is
turned on. It will remain on until the surface is
cooled to approximately 150°F.
Indicatar light will:
Come on when the unit is turned on or hot to
the touch.
Stay on even after the unit is turned off.
Glow until the unit is cooled to approximately
150°K
i i
sMALL LARGE
BURNER _ BURNER
OFF
i :f I I
On some models.
sMALL LARGE
BURNER
OFF
BURNER
H e_ @HI
On some models.
Dual and Triple Surface Units and Control Knobs
(onsome models)
Thesurface unit has 2 or 5 cooking sizesto
select from soyou can match the size of the unit
to the size of the cookware you are using.
¸Off¸¸¸¸¸
Hi,,, _ Lo
Models with a Triple Surface Unit only.
Models with a Triple Surface Unit only.
10
Temperature Limiter
Every radiant surface unit has a temperature
limiter.
The temperature limiter protects the glass
cooktop from getting too hot. It is normal for it
to cycle when the cooktop is in use.
The temperature limiter may cycle the units off
more frequently for a time if:
Thepan boils dry.
Thepan bottom is not flat.
Thepan is off-center.
Thereis no pan on the unit.
