Cisco TelePresence SX20 Quick Set
AdministrAtor guide
Table of contents Introduction

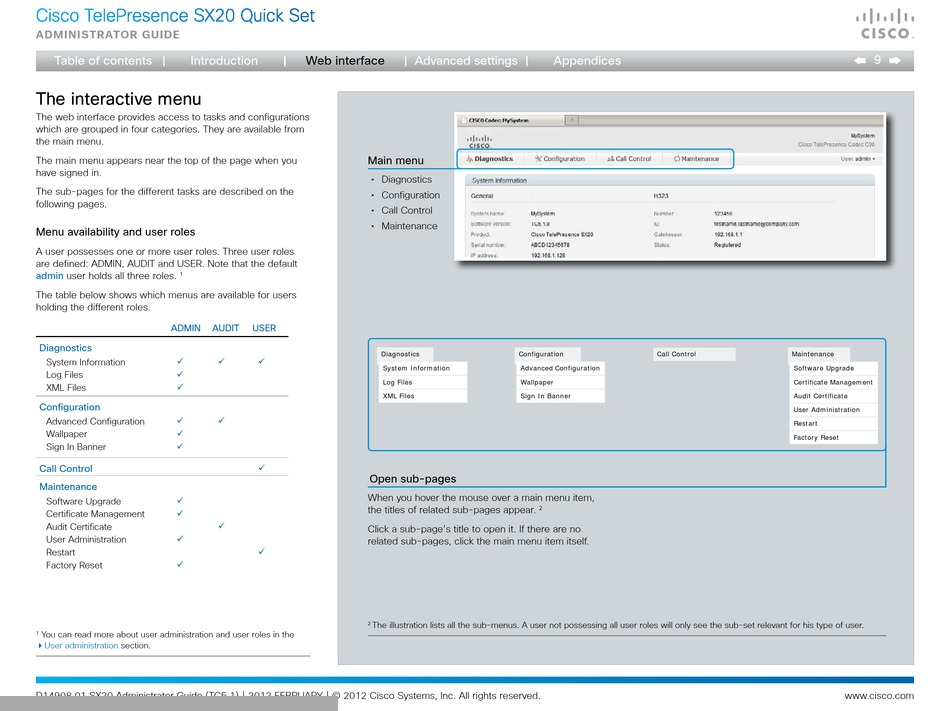

The interactive menu
The web interface provides access to tasks and configurations
which are grouped in four categories. They are available from
the main menu.
The main menu appears near the top of the page when you
have signed in.
The sub-pages for the different tasks are described on the
following pages.
Menu availability and user roles
A user possesses one or more user roles. Three user roles
are defined: ADMIN, AUDIT and USER. Note that the default
admin user holds all three roles.
1
The table below shows which menus are available for users
holding the different roles.
ADMIN AUDIT
Diagnostics
System Information

Log Files

XML Files

Configuration
Advanced Configuration 
Wallpaper 
Sign In Banner

Call Control
Maintenance
Software Upgrade 
Certificate Management 
Audit Certificate
User Administration

Restart
Factory Reset

You can read more about user administration and user roles in the
1
User administration section.
D14908.01 SX20 Administrator Guide (TC5.1) | 2012 FEBRUARY | © 2012 Cisco Systems, Inc. All rights reserved.
Web interface Web interface
Main menu
• Diagnostics
• Configuration
• Call Control
• Maintenance
USER
Diagnostics
 
System Information
Log Files
XML Files


Open sub-pages
When you hover the mouse over a main menu item,
the titles of related sub-pages appear.

Click a sub-page's title to open it. If there are no
related sub-pages, click the main menu item itself.

2 The illustration lists all the sub-menus. A user not possessing all user roles will only see the sub-set relevant for his type of user.
Advanced settings Appendices
Configuration
Advanced Configuration
Wallpaper
Sign In Banner
2
Call Control Maintenance
Software Upgrade
Certificate Management
Audit Certificate
User Administration
Restart
Factory Reset
9
