HUAWEI RP100&RP200 Room Presence
Commissioning Guide

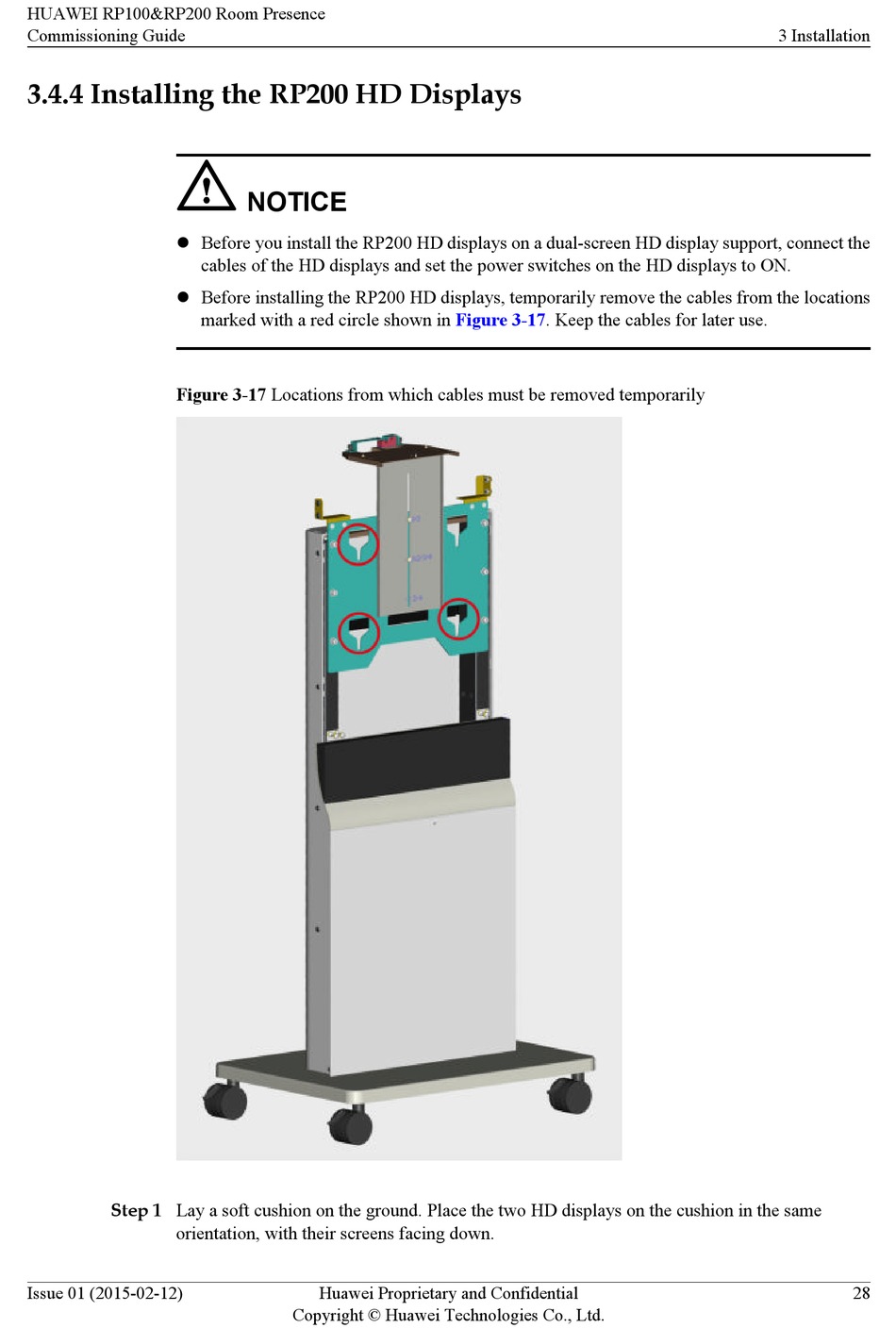

3.4.4 Installing the RP200 HD Displays

l Before you install the RP200 HD displays on a dual-screen HD display support, connect the
l Before installing the RP200 HD displays, temporarily remove the cables from the locations
Figure 3-17 Locations from which cables must be removed temporarily
Step 1 Lay a soft cushion on the ground. Place the two HD displays on the cushion in the same
orientation, with their screens facing down.
Issue 01 (2015-02-12)
NOTICE
cables of the HD displays and set the power switches on the HD displays to ON.
marked with a red circle shown in
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Figure 3-17. Keep the cables for later use.
3 Installation
28
