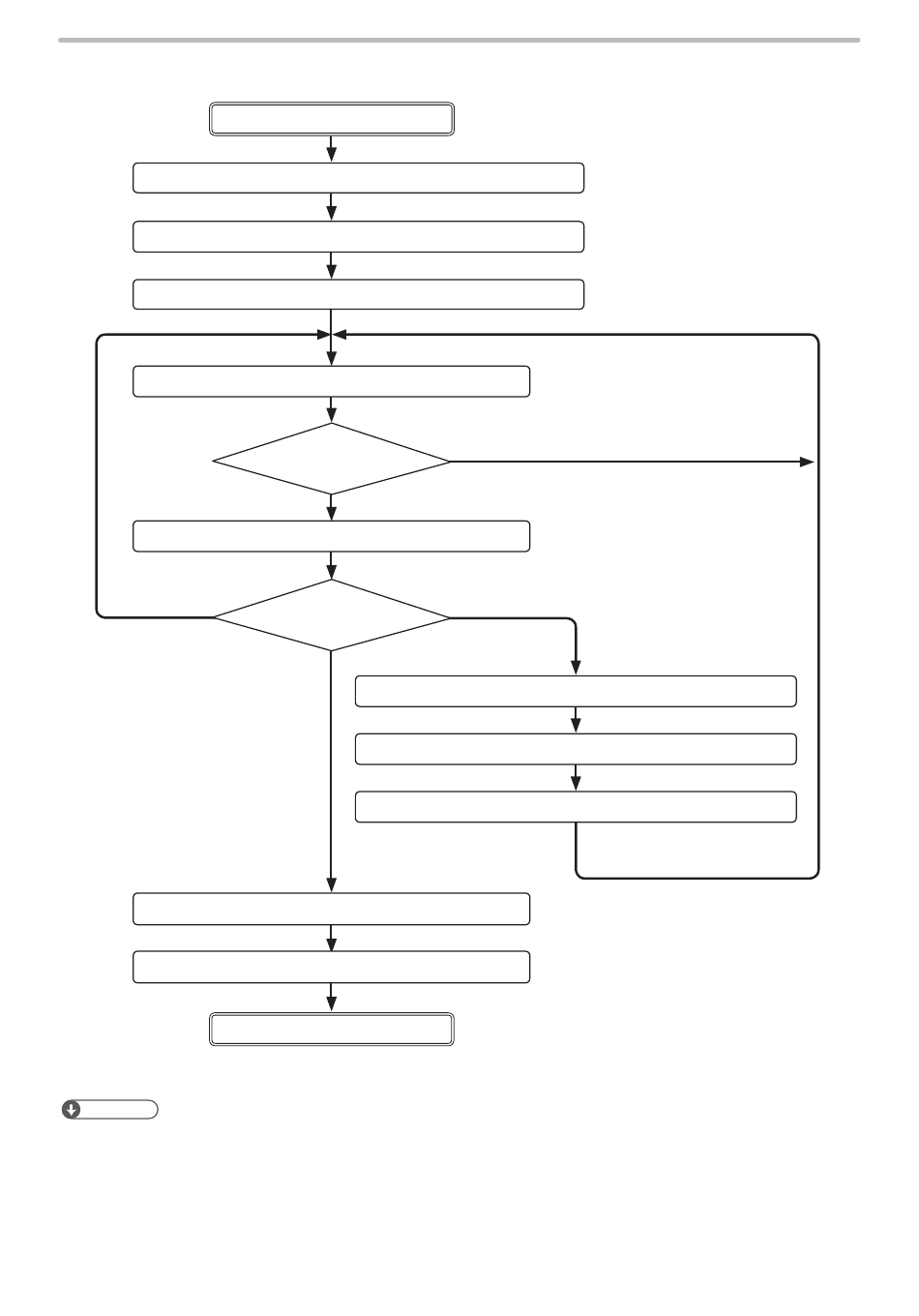

⿎ Control sample 1-1: Changing the marking characters
1. Laser pumping (ON)
2. Marking character string setting
3. Shutter setting (open)
4. Status request
5. Marking trigger
Mark the same
character.
9. Shutter setting (close)
10. Laser pumping (OFF)
Reference
• Other than STR and MCS command, SIN command can be used for changing character of marking command. SIN
command is recommended to use in case faster processing is required.
Remote mode ON
LSR command
MCS command or STR command
SHT command
STS command
"READY": ON
Yes
MRK command
Change the character
to be marked
To finish the
marking
6. Command reception mode ON
7. Marking character string setting
8. Command reception mode OFF
SHT command
LSR command
Remote mode OFF
ME-LP400V-EX-6
Send the character
to be marked.
No.
Send STS command
again after a while.
Change the character.
MKM command
MCS command or STR command
MKM command
* To memorize the last marked
character into the laser marker,
save it with "File Overwriting
Registration (FOR)".
