• Location of rogue access points
• Location of clients associated with the access points
• Location of blacklisted clients
To view the heat map for a building floor and to adjust access points:
1. Select Plans > Deployed. The Deployed Buildings screen displays.
.

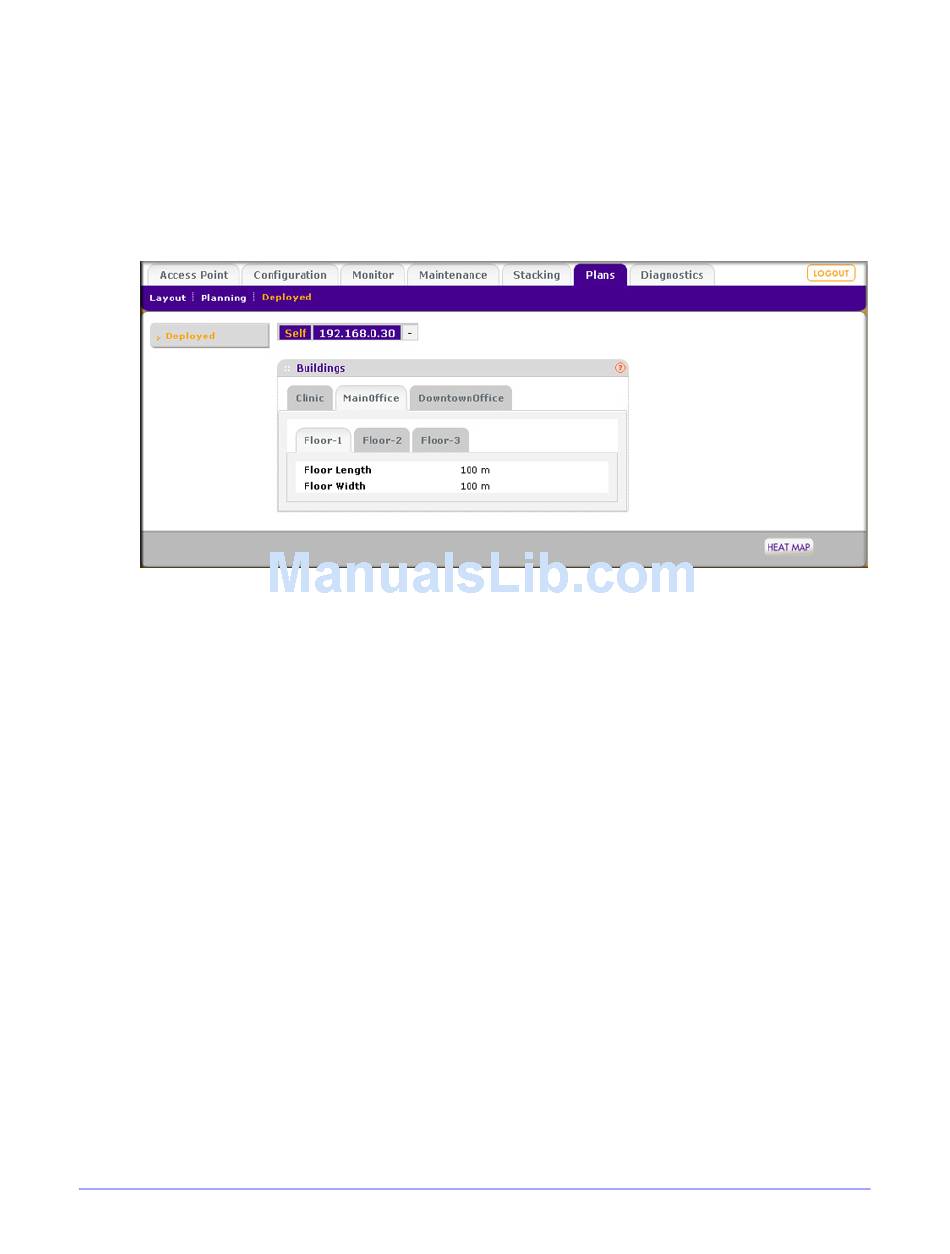

Figure 17.
The Deployed Buildings screen shows a tab for each building that you previously defined.
For each building, the screens shows the floors that you previously defined.
2. Select the building and floor for which you want to view the heat map by clicking on the
corresponding tabs.
3. Click Heat Map. The heat map for the selected floor displays (see the next figure).
