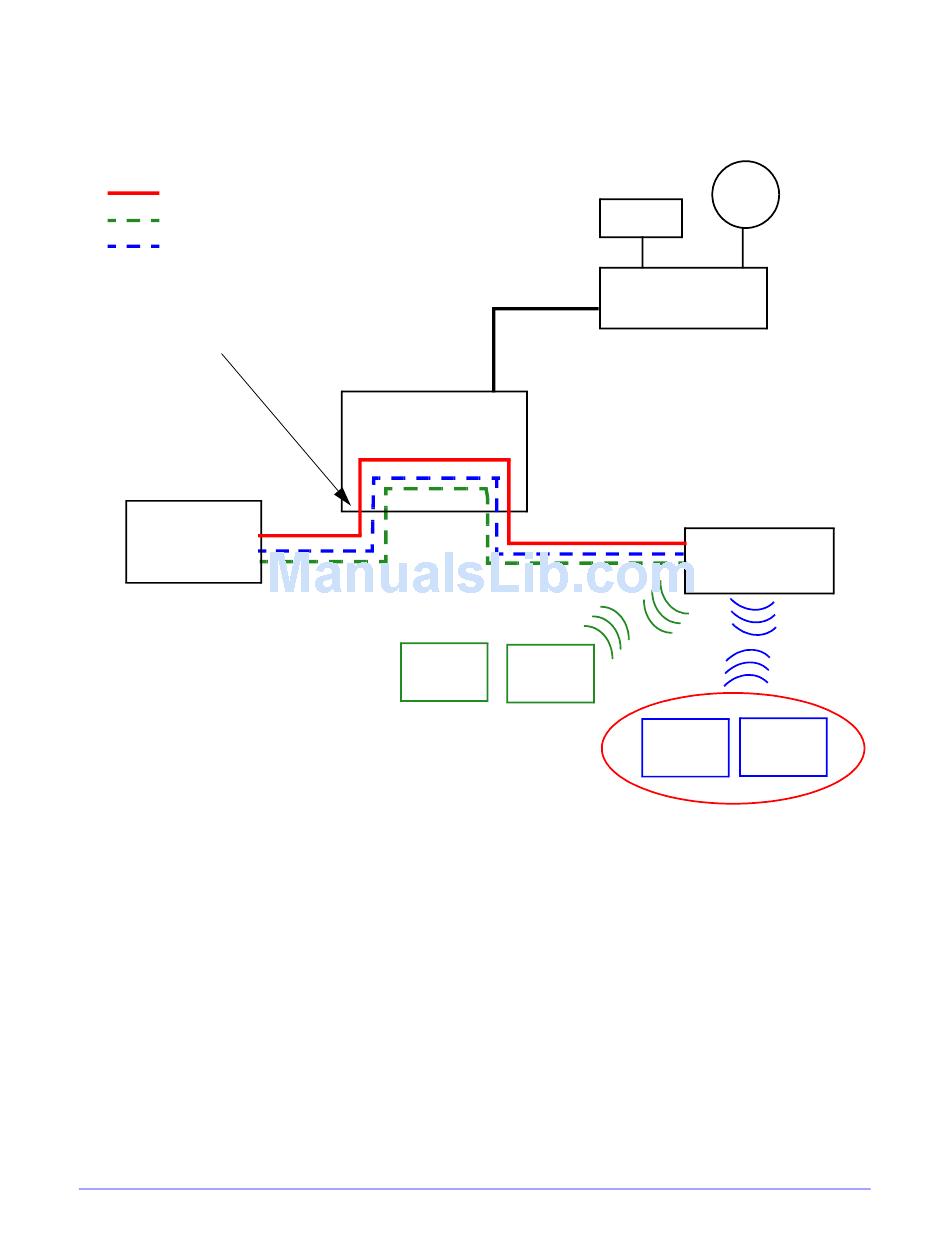

The following illustration shows a simplified view of how you can use VLANs to segregate
traffic by category of user.
Management VLAN 100 Ethernet traffic
Finance VLAN 10 Ethernet traffic
Employees VLAN 20 Ethernet traffic
Deploy the
controller
on a trunk
port.
Controller
WC7520
Figure 9. Management VLAN and Data VLANs
The wireless controller uses the management VLAN to continually exchange packets with the
access points. For large networks, if all traffic uses a single VLAN, the client traffic could
potentially flood the network. If this happens, and the wireless controller is not able to
exchange packets with the access points, it can cause network performance to slow down
and the access points can lose their connectivity with the wireless controller.
You should deploy the wireless controller on a trunk port on your switch. The trunk port
should have access to all VLANs. Use a high speed port on your switch as the trunk port to
accommodate the traffic load of the trunk.
