ProSafe 20-AP Wireless Controller WC7520 Reference Manual

Deployment Scenarios

This section provides three deployment scenarios to illustrate how the wireless controller can
function in a variety of network configurations:
•

Scenario Example 1: Basic Network with Single VLAN

• Scenario Example 2: Advanced Network with VLANs and SSIDs
• Scenario Example 3: Advanced Network With Redundancy

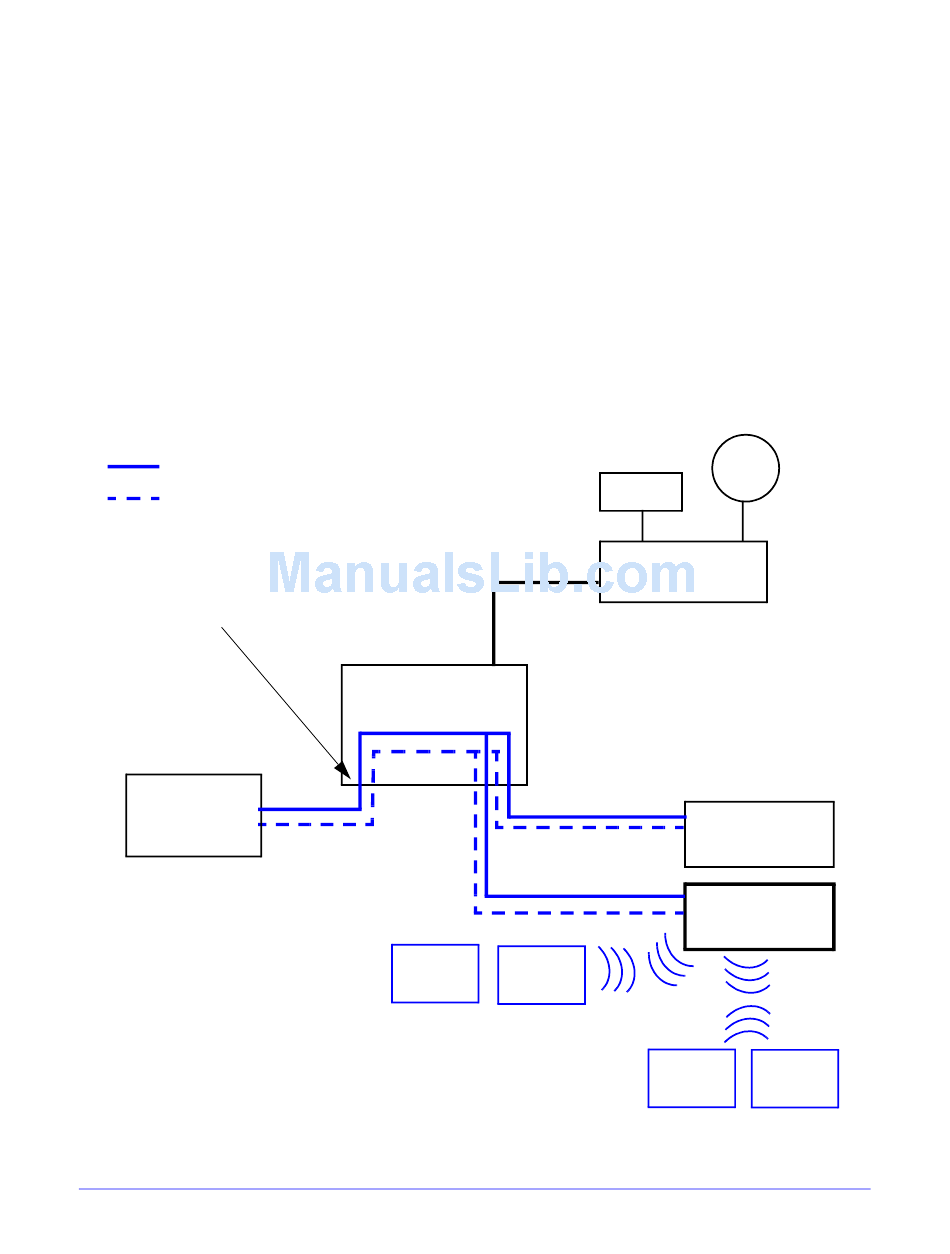

Scenario Example 1: Basic Network with Single VLAN
This sample scenario consists of a simple network with a wireless controller, PoE switch,
layer 3 switch or router, and access points.
Management VLAN Ethernet traffic
All client Ethernet traffic
Deploy the
controller
on a trunk
port.
Controller
WC7520
Figure 10.
Wireless PoE switch
Finance
Marketing
computer
computer
Chapter 2: System Planning and Deployment Scenarios
on this page
on page 31
on page 33
Internet
Printer
Backend
L3 switch or router
Access Point
WNDAP350
Access Point
WNDAP350
Employee Employee
computer
computer
