ProSafe 20-AP Wireless Controller WC7520 Reference Manual
Table 1. LED Functions (Continued)
LED Status
Left LAN Off
port LED
(one for
each port)
On (green)
Blink (green) Data is being transmitted or received by the port.
Right LAN Off
port LED
(one for On (amber)
each port)
On (green)

Rear Panel Features

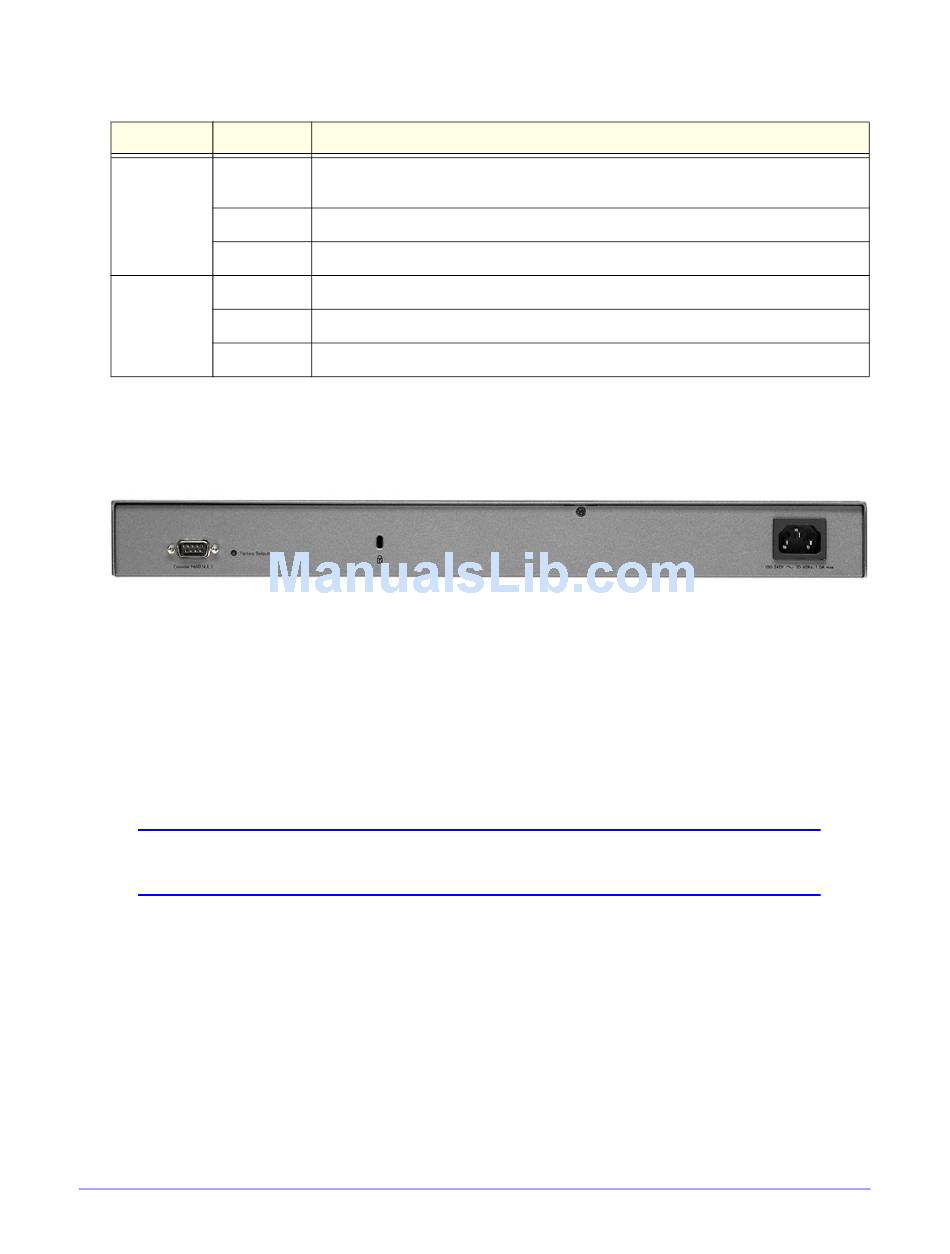

The following figure shows the rear panel components of the wireless controller.
Figure 2.
From left to right, the wireless controller's rear panel components are:
• Console port. RS232 port for connecting to an optional console terminal. The port has a
DB9 male connector. The default baud rate is 9600 K. The configuration is 8 bits, no
parity, and 1 stop bit.
• Factory default reset button. Using a sharp object, press and hold this button for about
10 seconds until the front panel Test light flashes and the wireless controller returns to
factory default settings.
Note: If you reset the wireless controller, all configuration settings are lost
and the default password is restored.
• Kensington lock. Attach an optional Kensington lock to prevent unauthorized removal of
the wireless controller.
• AC power socket. Attach the power cord to this socket. (There is no separate on/off
power switch.)
Description
The port has no physical link, that is, no Ethernet cable is plugged into the
wireless controller (see also
The port has detected a link with a connected Ethernet device.
The port is operating at 10 Mbps.
The port is operating at 100 Mbps.
The port is operating at 1000 Mbps.
LAN Port LEDs Not On on page 145).
Chapter 1: Introduction and Overview | 11
