Quick Start Guide; Preparation: Check The Items - Yamaha RX-Z11 Owner's Manual

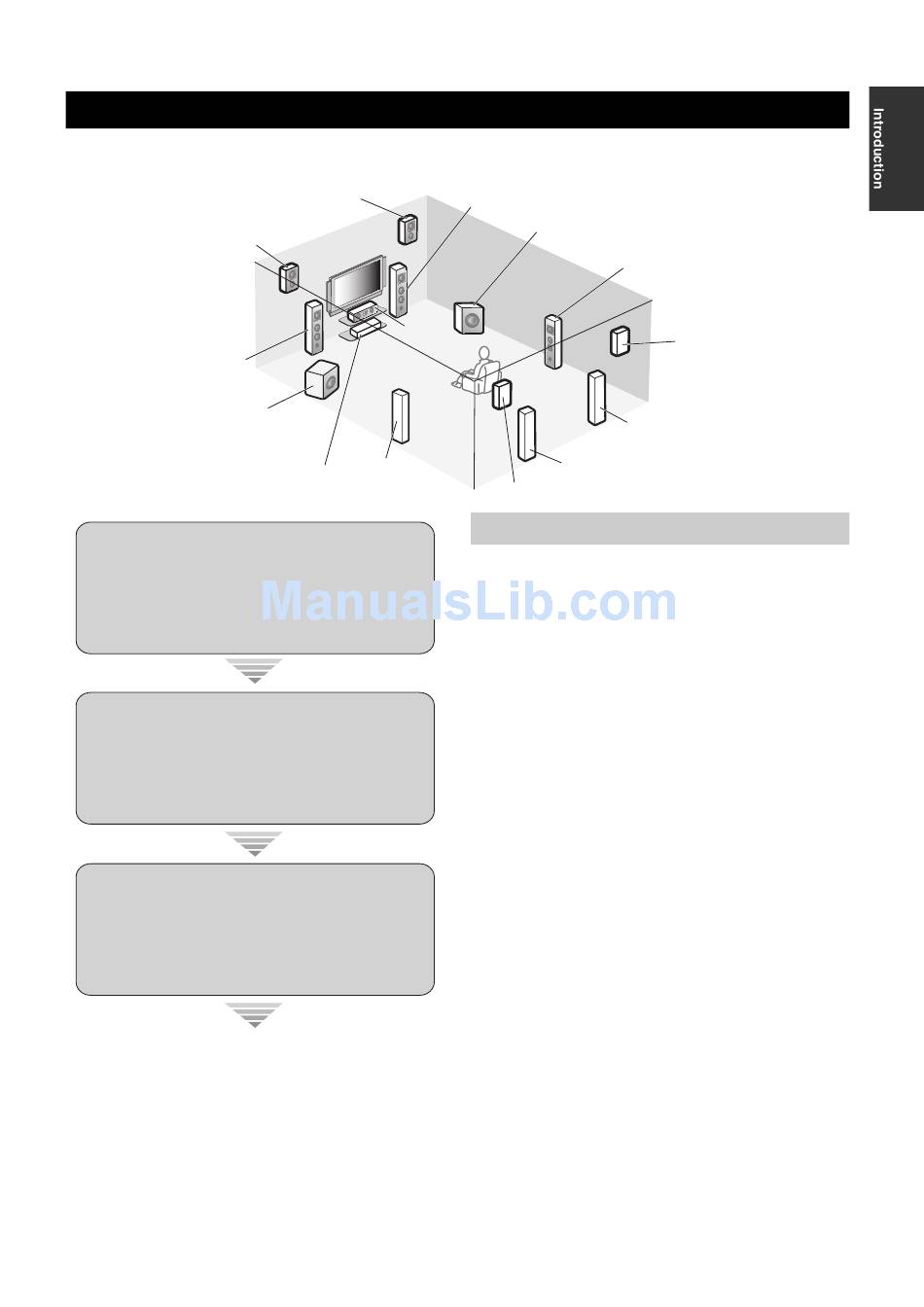

The following steps describe the easiest way to enjoy Blu-ray Disc/HD DVD movie playback in your home theater.
See pages 21 to 25 for details of the speaker placement.
Left front
presence
Front left
subwoofer
Blu-ray Disc/HD DVD player
Step 1: Set up your speakers
Step 2: Connect your Blu-ray Disc/
HD DVD player and other
components
Step 3: Turn on the power and start
playback
Enjoy Blu-ray Disc/HD DVD
playback!

Quick start guide

Right front
presence
Center
Left
Surround left
☞ P. 14
☞ P. 16
☞ P. 17
Front right
Right
subwoofer
Surround
right
Surround
back right
Surround
back left
Left rear
presence

Preparation: Check the items

In these steps, you need the following supplied accessory.
❏ Power cable
The following items are not included in the package of this unit.
❏ Speakers
❏ Front speaker ................................................... x 2
❏ Center speaker ................................................ x 1
❏ Surround speaker ............................................ x 4
❏ Front presence speaker .................................. x 2
❏ Rear presence speaker ................................... x 2
Select magnetically shielded speakers. The minimum
required speakers are two front speakers. The priority of the
requirement of other speakers is as follows:
1. Two surround speakers
2. One center speaker
3. One (or two) surround back speaker(s)
4. Two front presence speakers
5. Two rear presence speakers
❏ Active subwoofers ............................................... x 2
Select active subwoofers equipped with an RCA input jack.
❏ Speaker cable ..................................................... x 11
❏ Subwoofer cables ................................................ x 2
Select monaural RCA cables.
❏ HDMI cables ......................................................... x 2
Select HDMI cables shorter than 5 meters (16 feet) with the
HDMI logo printed on it.
❏ Blu-ray Disc/HD DVD player ................................ x 1
Select Blu-ray Disc/HD DVD player equipped with an
HDMI output jack.
❏ Video monitor........................................................ x 1
Select a TV monitor, video monitor or projector equipped
with an HDMI input jack.
Right rear
presence
