Operation
6.10 Operation with the IOP

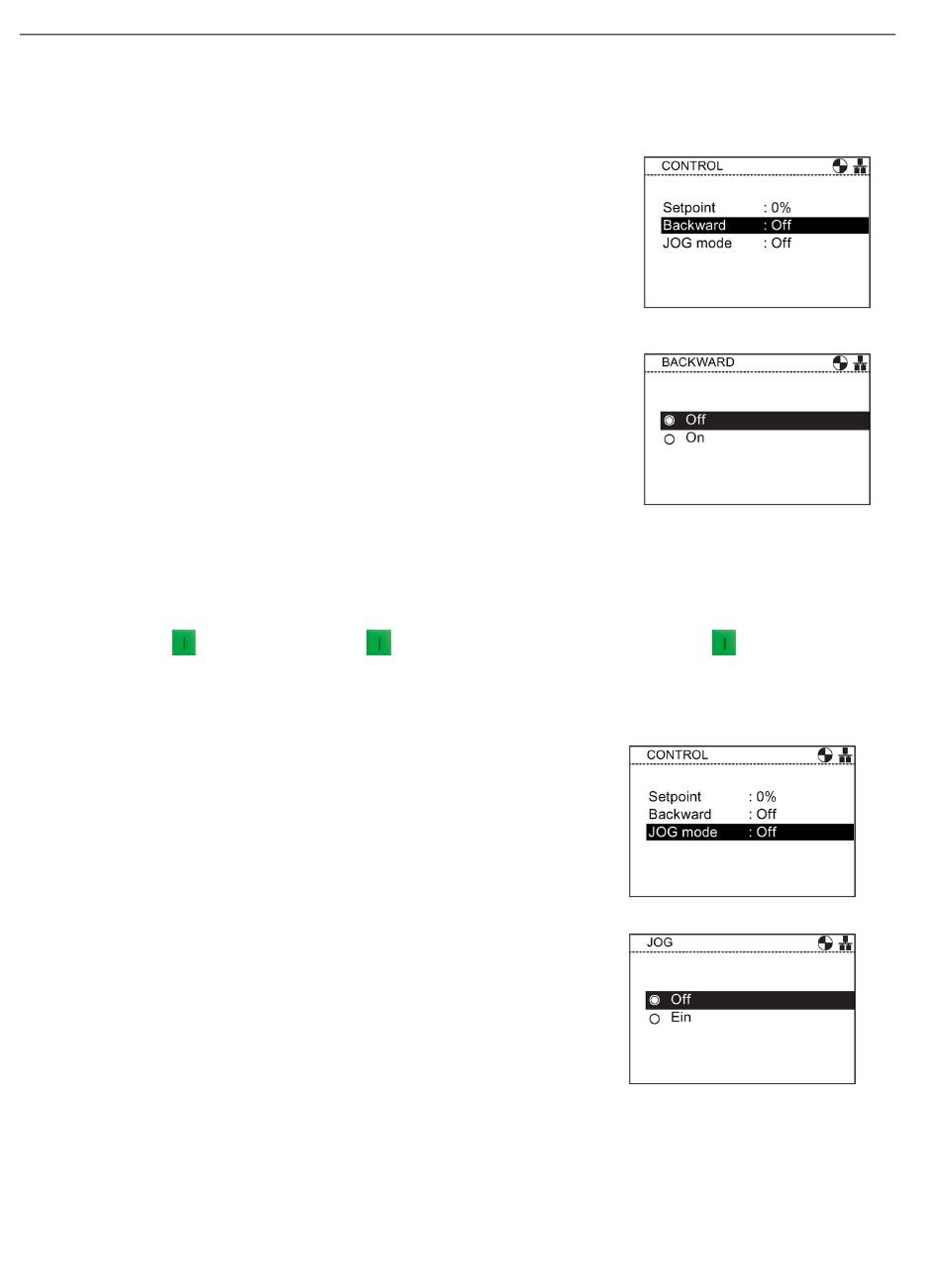

Proceed as follows to reverse the rotational direction of the motor:
1. Turn the navigation wheel and select "Control".
2. Confirm the selection by pressing the navigation wheel.
3. The "Control" screen appears.
4. Turn the navigation wheel and select "Backward".
5. Confirm the selection by pressing the navigation wheel.
6. The "Backward" screen appears.
7. Turn the navigation wheel and select "On" or "Off".
8. Confirm the selection by pressing the navigation wheel.
9. The IOP returns to the "Control" screen.
10. Press the "Esc" key to return to the "Status" screen.
JOG operation
If the JOG mode is activated, the motor is brought manually to a specified speed when the
key is pressed. If the
again.
Proceed as follows to activate or deactivate the JOG mode:
1. Turn the navigation wheel and select "Control".
2. Confirm the selection by pressing the navigation
wheel.
3. The "Control" screen appears.
4. Turn the navigation wheel and select "JOG mode".
5. Confirm the selection by pressing the navigation
wheel.
6. The "JOG" screen appears.
7. Turn the navigation wheel and select "On" or "Off".
8. Confirm the selection by pressing the navigation
wheel.
9. The IOP returns to the "Control" screen.
10. Press the "Esc" key to return to the "Status"
screen.
310
is held pressed, the motor turns until the
key is released
Inverter cabinet units
Operating Instructions, 12/2014, A5E32923362A
