microHAM Digi Keyer II Instruction Manual

Microham digi keyer ii instruction manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

microHAM © 2010 All rights reserved
DIGI KEYER II
microHAM
fax: +421 2 4594 5100
e-mail:
support@microham.com
homepage:
www.microham.com
Version 7.9
5 Decenber, 2010
1

Advertisement

Table of Contents
loading

Related Manuals for microHAM Digi Keyer II

Summary of Contents for microHAM Digi Keyer II

  • Page 1 © 2010 All rights reserved DIGI KEYER II microHAM fax: +421 2 4594 5100 e-mail: support@microham.com homepage: www.microham.com Version 7.9 5 Decenber, 2010...

  • Page 2: Table Of Contents

    Windows (Windows XP, Vista, 7) Installation ............... 9 Installing microHAM USB Device Router..............9 Configuring microHAM CODEC ................. 10 Configuring microHAM USB Device Router ............... 11 Creating and Using Virtual Ports ................12 5. microHAM USB DEVICE ROUTER ....................13 Menu: Router ......................

  • Page 3: Features And Functions

    © 2010 All rights reserved 1 - FEATURES AND FUNCTIONS No serial or parallel port required: just one USB cable between your computer and DIGI KEYER II Fully integrated: Sound Radio Control, true FSK, CW and PTT Computer sound card is not used Complete "Computer <->...

  • Page 4: Important Warnings

    If you power DIGI KEYER II from an external power supply ALWAYS check the polarity of the external 13.8 V supply. DO NOT use the same external power supply for DIGI KEYER II and your transceiver unless DK II receives power from the transceiver.

  • Page 5: Panel Description

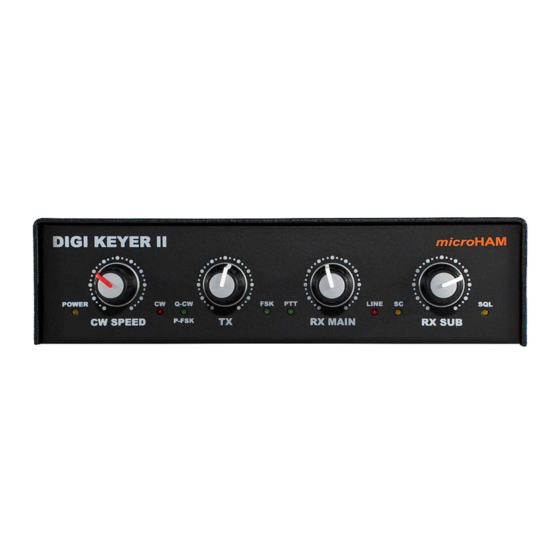

    © 2010 All rights reserved 3 - PANEL DESCRIPTION FRONT PANEL (1) – POWER YELLOW color indicates when power is applied to the “Radio” connector. (2) – CW SPEED WinKey speed control. Range (MIN, MAX) is defined by software (3) –...

  • Page 6: Rear Panel

    Maximum rating for the relay is: 48V AC/DC @ 1A. NOTE: The RE/SS labels are REVERSED in DIGI KEYER II. The picture below shows jumpers in the RE position. TIP: If you are not sure about the keying voltage of your Power Amplifier or LNA, use the RE position.

  • Page 7: Installation

    Preparing DIGI KEYER II for Use 1. Remove the top cover from DIGI KEYER II and set the CAT jumpers as shown in the following chart. The CAT interface jumpers must be configured to select the proper level for each radio type.

  • Page 8: Macintosh (Os X) Installation

    NOTE: If you will be installing on a Windows computer, skip to page 9. Mac OS X INSTALLATION 1. Insert the microHAM CD in your CDROM/DVD drive and navigate to Drivers/OS-X or use your web browser to go to http://www.ftdichip.com/Drivers/VCP.htm and down load the latest driver image for OS-X.

  • Page 9: Windows (Windows Xp, Vista, 7) Installation

    © 2010 All rights reserved MICROSOFT WINDOWS (XP, Vista, Windows 7) INSTALLATION Installing microHAM USB Device Router To install Router click on the Install USB Device Router link on the installation CD or download the most recent installation package from the web site: www.microHAM.com/downloads.html.

  • Page 10: Configuring Microham Codec

    © 2010 All rights reserved Configuring microHAM CODEC Windows will automatically install the USB Audio Device driver to support the microHAM CODEC in DIGI KEYER II. Windows automatically selects any newly installed audio device as the default device for Sound Playback and Sound recording.

  • Page 11: Configuring Microham Usb Device Router

    To configure and use DIGI KEYER II with Windows compatible application programs it is necessary to have installed the USB driver, started the Router, and applied power to DIGI KEYER II by turning on the attached radio or external power supply. Router is then configured to match the requirements of the application (logger or digital mode) software.

  • Page 12: Creating And Using Virtual Ports

    © 2010 All rights reserved Creating and Using Virtual Serial Ports microHAM Router provides a set of virtual serial ports which allow Windows applications (loggers and digital software) to work with DK II just as they would work with "real" (hardware) serial ports.

  • Page 13: Microham Usb Device Router

    (sound card) in the appropriate fields at Audio Mixer tab and will actively control the audio devices - Automatically assign microHAM audio devices: when checked, Router will automatically assign proper audio device of the same name if multiple microHAM interfaces of the same kind are connected to the one computer.

  • Page 14: Menu: Preset

    Each preset contains the settings for all devices connected to, and controlled by, Router. For example, if Router controls a microKEYER, a DIGI KEYER II and a USB Interface, each preset remembers the settings for all devices including the assignment of COM ports and the contents of all sub-tabs except the FSK/CW Messages and DVK tabs.

  • Page 15: Menu: Device

    When clicked, Router will open a standard File dialog – the default location is: C:\Documents and Settings\All Users\Application Data\microHAM\cfg - and the desired template can be chosen. When Router loads a template, it looks for an html or txt file with the same name as the template in the same directory.

  • Page 16: Menu: Virtual Port

    TIP: When you upgrade Router, the upgrade will include the latest firmware file. The new firmware will be automatically uploaded to DIGI KEYER II when the new version of Router connects for the first time, you have just to allow the upgrade when prompted.

  • Page 17: Menu: Help

    Change logs: Shows the Router and firmware changes. DEVICE CONFIGURATION TABS There are nine (9) tabs for configuring DIGI KEYER II. Each tab controls a part of the device functions. Any change is applied immediately to DIGI KEYER II. Changes in Messages are NOT applied automatically. To store them use buttons Store or Store All.

  • Page 18: Ports Tab

    Proper configuration of the port assignments in this tab is critical for integration with logging and digital mode softwre. Read the following information carefully. DIGI KEYER II has eleven functions with indication of the state and settings applied by the host application CAT (uses RxD and TxD) ●...

  • Page 19: Nd Cat

    © 2010 All rights reserved CAT PORT & 2 CAT PORT The CAT channel is used by application software to control transceiver frequency, mode, T/R switching and many other parameters using a serial (CAT) protocol. Most modern radios implement some form of CAT but almost every radio implementation is different.
  • Page 20 © 2010 All rights reserved PW1 on radio bus – When this box checked, Router periodically generates an Icom "Transceive" broadcast to keep the PW1 synchronized. NOTE: Check this box if you have an IC-PW1 or other Icom compatible accessory physically connected in parallel with the transceiver.

  • Page 21: Nd Fsk

    (from the front panel of the radio) should not be used. NOTE: Despite extensive testing using various combinations of applications for the CAT and 2 CAT ports, microHAM cannot guarantee proper operation with every potential combination of applications. FSK & 2 FSK PORTS The FSK channel is used by the application program to send the FSK keying signal.
  • Page 22 © 2010 All rights reserved An initial indication of proper audio drive level can be seen on the ALC meter of the radio. Provided that there is NO audio processing in circuit and that the microphone gain control is in its normal operating position, then, if the ALC does not show or just starts to indicate during transmission, the signal is likely to be clean.

  • Page 23: Nd Ptt

    PA when the PTT channel is used for T/R switching. More information about T/R switching, DIGI KEYER II PTT outputs and the sequencer is provided under the Keying Tab (page 21). Router allows assigning virtual serial ports for PTT using the DTR or RTS signals. DTR* and RTS* are identical to DTR/RTS except that the output is inhibited for one second after the COM port is opened and .

  • Page 24: Foot Switch

    © 2010 All rights reserved FOOT SWITCH Even though many applications do not monitor the status of the foot switch and do not have the ability to perform specific functions base on closing or releasing the foot switch, we have decided to implement this feature to the Router.

  • Page 25: Winkey

    USB packets. CONTROL PORT The Control Port allows an application program (logger) that implements the microHAM Control Protocol to make use of DIGIKEYER II's CW and FSK message memories When an application opens the control port, Router reports port as open and displays settings used to configure COM port.

  • Page 26: Audio Tab

    AUDIO TAB In addition to providing for basic “Line Out” audio for digital mode operations, DIGI KEYER II has expanded capabilities to support the microHAM micro2R two radio controller and the special on/off keying modes (p-FSK and q-CW) of fldigi by W1HKJ. These enhanced capabilities are controlled from the Audio tab.

  • Page 27: Audio Mixer

    Select microHAM CODEC to use the internal soundcard in DIGI KEYER II. Router displays separate controls for the left and right Wave, Line Out (Volume) and Line In channels. DIGI KEYER II uses the left channel for all audio output. The right channel is used by the P-FSK/Q-CW detector.
  • Page 28 Note, the display is active only if a sample rate is selected. DIGI KEYER II shows one slider for each input – Left for the Main RX and Right for the Sub RX. Keep the sliders at about 80% and use the RX Main and RX Sub pots on the front panel for adjustment.

  • Page 29: Ptt Tab

    PTT TAB DIGI KEYER II has three (3) PTT outputs: PTT, PA PTT and LNA PTT. PTT is brought out to the DB15 Radio connector. PA PTT and LNA PTT are available on RCA connectors at the DIGI KEYER II rear panel.
  • Page 30 © 2010 All rights reserved FOOTSWITCH SEQUENCER Additional functions can be associated with the footswitch (or hand mic PTT). DIGI KEYER II recognizes when the footswitch is closed (pressed) or open (released) and can manipulate CW, FSK, PTT and audio routing when the footswtich is closed or opened.

  • Page 31: Cw & Winkey Tab

    © 2010 All rights reserved CW / WinKey TAB This tab provides the configuration for the WinKey based, internal CW keyer. A complete WinKey manual can be downloaded from: http://k1el.tripod.com/docfiles.html. Thanks to Steve Elliott, K1EL for this great product.

  • Page 32: Cw Messages Tab

    Test: plays a message without storing it Store: saves one message to DIGI KEYER II memory Store All: saves all messages to DIGI KEYER II memory Load from File: loads all messages from file...

  • Page 33: Fsk Messages Tab

    © 2010 All rights reserved FSK MESSAGES TAB DIGI KEYER II allows defining nine messages of up to 50 characters each which are stored in non-volatile memory. Each memory may repeat with a programmable delay (loop) or call another memory (chain).

  • Page 34: Keyboard Tab

    © 2010 All rights reserved KEYBOARD TAB The Keyboard Tab controls the operation of a PS/2 keyboard or numeric keypad connected to the PS/2 jack. It is also possible to define control functions for the numeric keypad. Custom controls are invoked by pressing and holding the asterisk key (*) with Numkey0-9.

  • Page 35: System Settings Tab

    (for Vista or Windows 7, skip to the next section) . 1. On the Audio Mixer and select microHAM CODEC in both the TX and RX boxes. 2. Click on the "Get ID" button and confirm that the correct sound card is selected.
  • Page 36 7. Set the RX RECORDING/DIGIAL sliders to approximately 80% and adjust receive audio levels with the RX MAIN and RX SUB controls on the front panel of DIGI KEYER II. 8. You may want to store these Router settings to the last preset. Click Preset | Save as, choose position number 12, name it Default and store settings.
  • Page 37 © 2010 All rights reserved 3. Click the TX Mixer button. If the Mixer does not appear, open the Windows Sound Control Panel and select the "Playback" tab. 4. Click the "Test Signal" button on the Audio Devices screen and verify that the VU Meter for connected sound card reaches maximum.

  • Page 38: External Keyboard/Keypad

    NOTE: The keyboard or keypad must be PS/2. A USB device with PS/2 adapter will not work properly. DIGI KEYER II includes the ability to generate CW/FSK or record and play CW/FSK messages using a keyboard or numeric keypad connected to the PS/2 jack. A numeric key pad will allow recording/playing CW messages, control CW speed (WPM) or play a serial number message.
  • Page 39 © 2010 All rights reserved std. key Numeric Keypad mode mode start/stop recording of message (recording mode is indicated NUM LOCK by NUM LED) Tune (can be canceled by keys NUM 0 or ESC, or by the NUM *...

  • Page 40: System Considerations

    © 2010 All rights reserved 8 - System Considerations DIGI KEYER II can be used with a wide variety of software. The capabilities of those packages will have large influence on the level of computing power needed to utilize DK II.

  • Page 41: Warranty

    © 2010 All rights reserved 10 - WARRANTY microHAM warrants this product for three (3) years. The product must not be modified in any way or the warranty is voided. Cables are warranted against defects in materials and workmanship for a period of 60 days.

  • Page 42: Specifications

    DIGI KEYER II is connected to the computer using a single A-B USB cable which is included. The transceiver and DIGI KEYER II are connected by single radio cable terminated on one side by a DB15M and on the other side by the appropriate plugs for the specific transceiver. The cable carries power for DK II, audio, CAT control and keying.

  • Page 43: Declaration Of Conformity

    © 2010 All rights reserved DECLARATION OF CONFORMITY Federal Communications Commission Statement (USA) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 44: Appendix A - Connectors

    © 2010 All rights reserved APPENDIX A – CONNECTORS Radio - DB15 Pin # Label Description Power +13.5V 12 - 16V DC input CAT IN Control port input CAT OUT Control port output SQL1 Level squelch input SQL2 Impedance squelch input PTT output "open collector"...

  • Page 45: Appendix B - Rfi Considerations

    It is absolutely important to prevent ground currents from flowing to the common ground point by way of the signal cable. If you use a microHAM "keyer," a good test is to remove the DB15/DB37 connector and USB cable from the keyer and measure the resistance from the shell of the DB15/DB37 to the shell of the USB cable.

  • Page 46: Appendix C - Tracking

    Router 7.5.0 . Mode linking and bidirectional frequency tracking are not currently supported. microHAM will be expanding features and adding support for additional radios in the future. The initial version has been tested with Perseus SDR only.
