TF Series Probes (cont.)
Moisture Image Series
Probes
Installation
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
STD/TF Probe
Terminal Block

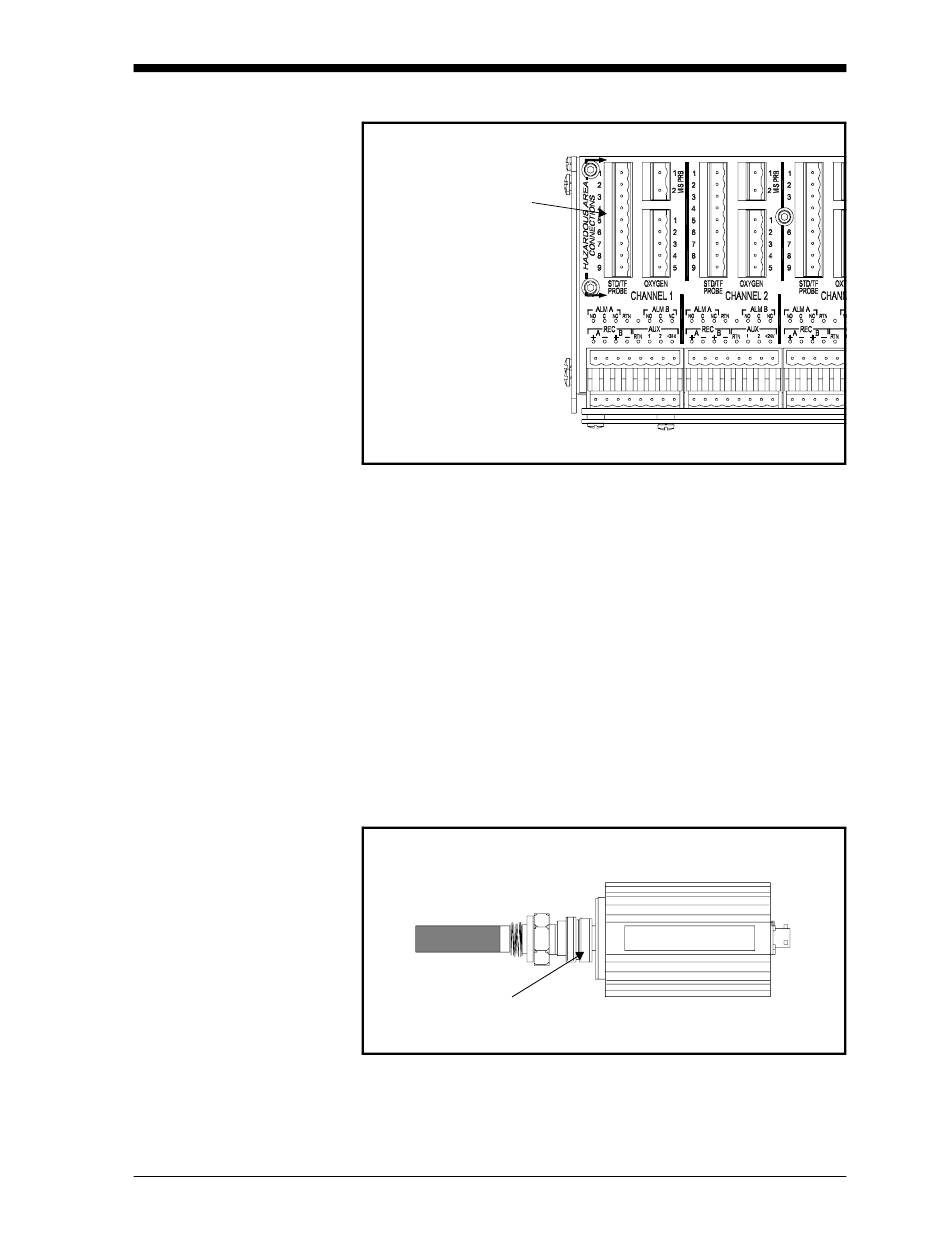

Figure 1-13: STD/TF Probe Terminal Block Location
Connect the Moisture Image Series probes to the Series 1 using a
standard twisted-pair cable with a bayonet-type connector. You can
locate the Moisture Image Series Probe up to 915 meters (3000 feet)
from the electronics unit.
Before making any electrical connections, you must assemble the
probe. The Moisture Image Series probes may be shipped in two
parts: a probe and an electronics module, each of which has a serial
number. Match the appropriate probe to the matching electronics
module using the serial numbers that are listed on the Calibration
Data Sheet. Insert the probe into the probe connector on the
electronics module and turn counterclockwise (see Figure 1-14
below).
Connector
Figure 1-14: Moisture Image Series Probe Assembly
April 2004
1-25
