KCU105 Software Install and Board Setup Xilinx KCU105 Board Software Requirements KCU105 Hardware Setup UART Driver Install Ethernet Setup Optional Hardware Setup References Note: This presentation applies to the KCU105...
Page 4

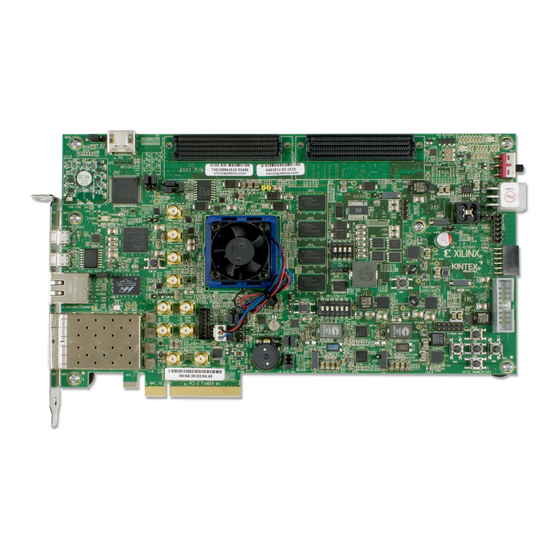

Xilinx KCU105 Board Note: Presentation applies to the KCU105...
Software Requirements Xilinx Vivado Design Suite 2014.4.1, Design Edition with SDK – Note: The Board Interface Test requires use of 2014.4.1 for proper operation – 2014.4.1 is installed on top of 2014.4 Note: Presentation applies to the KCU105...
Page 6
– KCU105 Board – Two SFP Modules and fiber optic Patch cable – XM107 FMC Loopback board – PCIe Loopback board (not shown) – Two Micro USB cables – Mini USB cable – Power supply Note: Presentation applies to the KCU105...
Page 7
KCU105 Hardware Setup Two Avago SFP+ Optical Transceivers – http://www.avagotech.com – Part number: AFBR-709ASMZ – 10Gb Ethernet, 850 nm, 10GBASE-SR/SW, SFP+ Transceiver Optical Patch cable – Amphenol Cables on Demand Note: Presentation applies to the KCU105...
Page 8
KCU105 Hardware Setup Insert these transceivers into the SFP cages (P4 & P5) Connect the two transceivers with the included Optical Patch cable – Remove the protective plastic caps before inserting Note: Presentation applies to the KCU105...
Page 9
Class 1 may still pose a hazard when viewed with a telescope or microscope of sufficiently large aperture Therefore, when working with lasers, please observe the following caution: Note: Presentation applies to the KCU105...
Page 10
KCU105 Hardware Setup Ensure that jumpers are installed on J6 and J7 – Required for the IBERT SFP test Note: Presentation applies to the KCU105...
Page 11
KCU105 Hardware Setup Attach the FMC XM107 board to the FMC HPC connector (J22) Note: Presentation applies to the KCU105...
Page 12
KCU105 Hardware Setup Connect a mini USB cable to the PCIe Loopback card for power – Connect this cable to your PC Attach to the PCIe connector (P1) on the KCU105 Note: Presentation applies to the KCU105...
Page 13
(J4) on the KCU105 board Connect a USB Type-A to Micro-B cable to the USB JTAG (Digilent) (J87) connector on the KCU105 board Connect the Ethernet cable to P3 Connect these cables to your PC Note: Presentation applies to the KCU105...
Page 14
KCU105 Hardware Setup Connect the power supply to the KCU105 (J15) – Connect this cable a power outlet Note: Presentation applies to the KCU105...
Page 15
KCU105 Hardware Setup Board connected with all Kit items installed Power on the KCU105 board for the UART driver installation...
Page 16
UART Driver Install Install Si Labs CP210x USB UART Drivers – Refer to UG1033 for details on installing the USB to UART Drivers Note: Presentation applies to the KCU105...
Page 17
– The Enhanced COM Port is the System Controller COM Port – The COM Port numbers will vary from system to system These COM Port Numbers will be used in several of the tutorials Note: Presentation applies to the KCU105...
Terminal Setup Refer to UG1036 regarding Tera Term installation Board Power must be on before starting Tera Term Start the Terminal Program – Select your USB Com Port – Set the baud to 115200 Note: See AR63771 regarding SDK Terminal Program...
Ethernet Setup Open the Windows Control Panel – Set to View by Category Click on “View network status and tasks” Note: Presentation applies to the KCU105...
Page 20
Ethernet Setup Click on “Change adapter settings” Note: Presentation applies to the KCU105...
Page 21
Ethernet Setup Right-click on the Gigabit Ethernet Adapter that you will be using for this test and select Properties Note: Presentation applies to the KCU105...
Page 22
Ethernet Setup Click Configure – Set the Link Speed & Duplex to Auto Negotiation then click OK Note: Presentation applies to the KCU105...
Page 23
Ethernet Setup Reopen the properties after the last step Double-click the Internet Protocol Version 4 Set your host (PC) to this IP Address: Note: Remember to restore your IP settings when finished...
Page 24
Optional Hardware Setup Connect PMOD headers Both J52 and J53: – 1 to 2 – 3 to 4 – 5 to 6 – 7 to 8 Note: Presentation applies to the KCU105...
Page 25
Optional Hardware Setup Attach a second FMC XM107 board to the FMC LPC connector (J2) Available through Whizz Systems Note: Presentation applies to the KCU105...
Page 26
Optional Hardware Setup Five SMA Cables – www.rosenbergerna.com – Part number: 72D-32S1-32S1-00610A SMA Quick connects – RADIALL – Part number: R125791501 – Available here here Note: Presentation applies to the KCU105...
Page 27
Hook up the SMA cables as shown IBERT Test: – J29 to J31 (White) – J28 to J30 (Black) Clocking Test – J33 to J34 (Red) – J32 to J35 (Yellow) User SMA Loopback – J36 to J37 (Green) Note: Presentation applies to the KCU105...
Page 28
Optional Hardware Setup Using a common HDMI cable, connect an HDMI Monitor to the HDMI port (P6) Note: Presentation applies to the KCU105...
