KCU105 Evaluation Kit
Quick Start Guide
The KCU105 Evaluation Kit contains all the necessary hardware, tools, and IP to evaluate and develop your
Kintex
UltraScale™ FPGA design.
®
This quick start guide provides instructions to set up and configure the board, run the Board Self Test, install the
Xilinx tools, and redeem the license voucher.
KCU105 Evaluation Kit
Ethernet
and USB Cables
1x Fiber
Optic Patch Cable
For more information visit
Arrow.com.
Downloaded from
xxxxxxxxxxxxXXXXXXXxxxxxxxXXXXXXXXXXXXXXXX
2x 10 Gbps
SFP+ Modules
www.xilinx.com/kcu105.

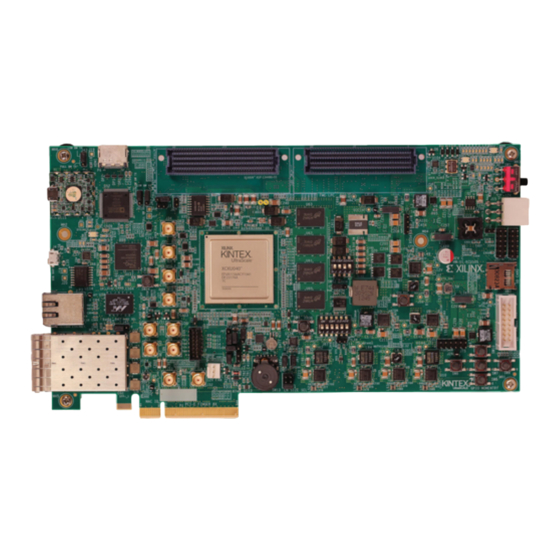

KCU105 Base Board
FMC Loopback Card
1
UltraSCALE
Power
Supply

Advertisement

loading

Related Manuals for Xilinx KINTEX KCU105

Summary of Contents for Xilinx KINTEX KCU105

  • Page 1 The KCU105 Evaluation Kit contains all the necessary hardware, tools, and IP to evaluate and develop your Kintex UltraScale™ FPGA design. ® This quick start guide provides instructions to set up and configure the board, run the Board Self Test, install the Xilinx tools, and redeem the license voucher. KCU105 Evaluation Kit xxxxxxxxxxxxXXXXXXXxxxxxxxXXXXXXXXXXXXXXXX Power Supply...
  • Page 2 Board Self Test Demo KCU105 Evaluation Kit STEP 1 Set Configuration Switches Set the SW15-6 in the OFF position. Note: SW15-6 (FPGA_M2) selects the configuration mode for the UltraScale device: 0: Master SPI configuration mode 1: JTAG configuration mode STEP 2I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I II I I I I I I I I I I I Connect Power Connect the 6-pin power supply plug to J15, and turn on the board power with...
  • Page 3 Note: To skip the DIP, PB, or rotary tests, push the center PB switch (SW7). To run the Board Self Test again, press SW4 (PROG). See Board Self Test XTP at www.xilinx.com/kits/kcu105bist for detailed test descriptions. Arrow.com. Arrow.com. Arrow.com.
  • Page 4 For product warranty, go to www.xilinx.com/kits/warranty. © Copyright 2014 Xilinx, Inc. Xilinx, the Xilinx logo, Artix, ISE, Kintex, Spartan, Virtex, Vivado, Zynq, and other designated brands included herein are trademarks of Xilinx in the United States and other countries. All other trademarks are the property of their respective owners.
