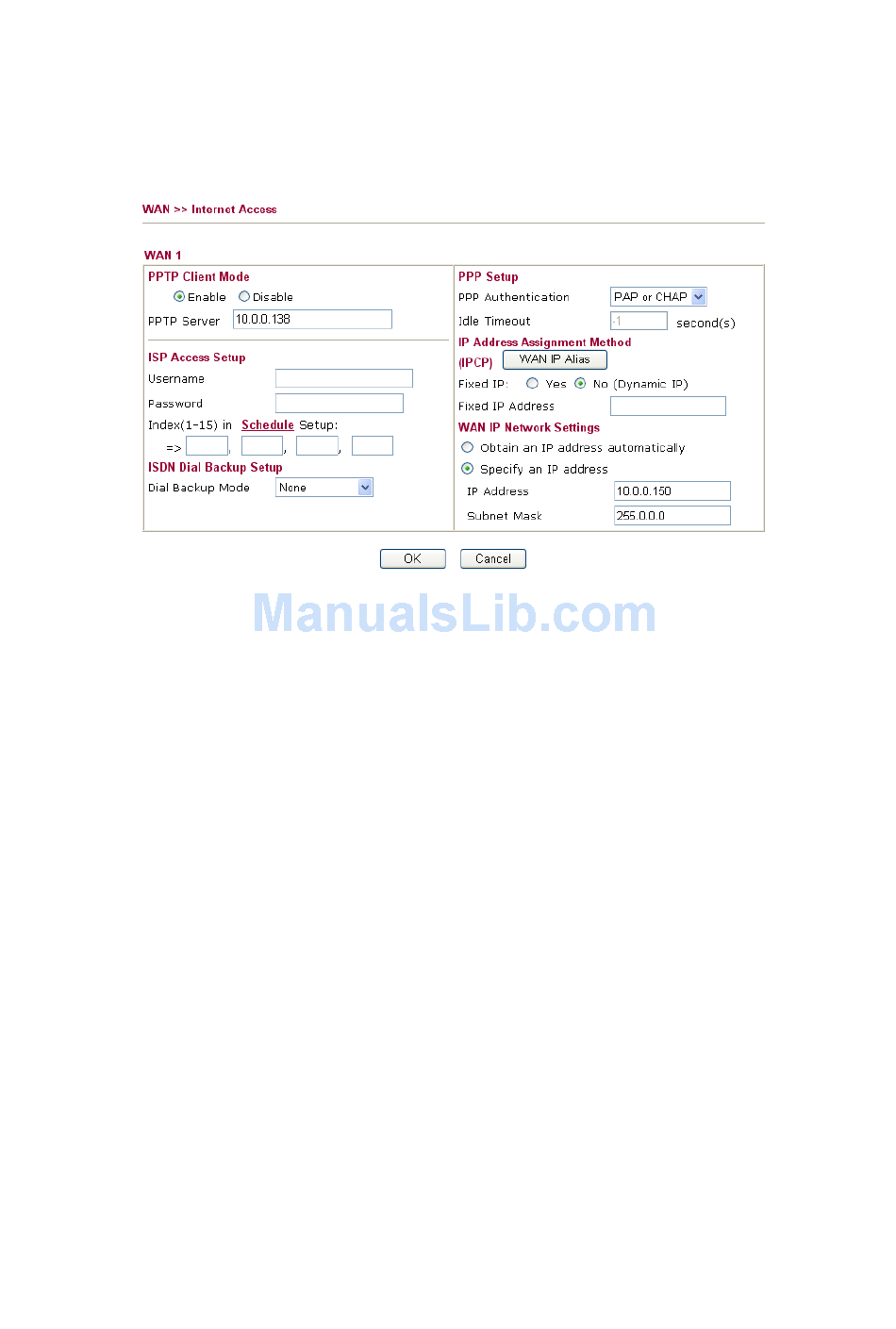

To use PPTP as the accessing protocol of the internet, please choose Internet Access from
WAN menu. Then, select PPTP mode for WAN2. The following web page will be shown.
PPTP Setup
ISP Access Setup
ISDN Dial Backup
Setup
PPP Setup
IP Address
Assignment
Method(IPCP)
Vigor2930 Series User's Guide
necessity in the future.
P a g e f o r P P T P
s P a g e f o r P P T P
PPTP Link - Click Enable to enable a PPTP client to establish a
tunnel to a DSL modem on the WAN interface.
PPTP Server - Specify the IP address of the PPTP server.
Username -Type in the username provided by ISP in this field.
Password -Type in the password provided by ISP in this field.
Index (1-15) in Schedule Setup - You can type in four sets of time
schedule for your request. All the schedules can be set previously
in Application – Schedule web page and you can use the number
that you have set in that web page.
This setting is available for the routers supporting ISDN function
only. Before utilizing the ISDN dial backup feature, you must
create a dial backup profile first. Please click Internet Access
Setup > Dialing to a Single ISP to enter the backup profile.
None - Disable the backup function.
Packet Trigger -The backup line is not on until a packet from a
local host triggers the router to establish a connection.
This setting is available for i model only.
PPP Authentication - Select PAP only or PAP or CHAP for PPP.
Idle Timeout - Set the timeout for breaking down the Internet after
passing through the time without any action. This setting is active
only when the Active on demand option for Active Mode is
selected in WAN>> General Setup page.
Fixed IP - Usually ISP dynamically assigns IP address to you
each time you connect to it and request. In some case, your ISP
provides service to always assign you the same IP address
whenever you request. In this case, you can fill in this IP address
in the Fixed IP field. Please contact your ISP before you want to
use this function. Click Yes to use this function and type in a
35
