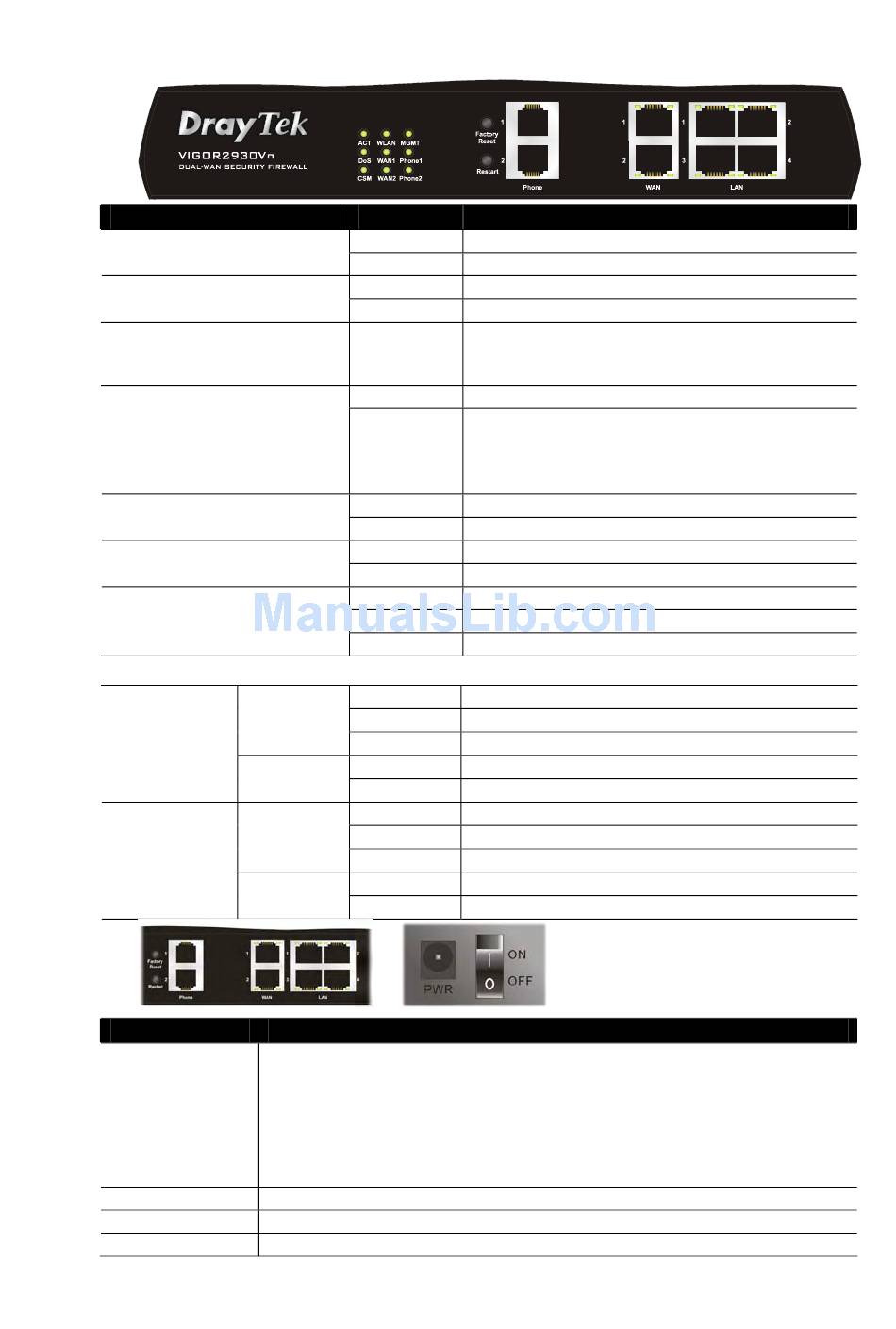

For Vigor2930Vn - Draytek Vigor2930 Series User Manual

1 . 2 . 3 F o r V i g
1 . 2 . 3 F o r V i g
LED
ACT (Activity)
DoS
CSM
WLAN
WAN1/2
MGMT
Phone 1/2
LED on Connector
WAN 1/2
LAN 1/2/3/4
Interface
Factory Reset
Restart
Phone (1/2)
WAN (1/2)
6
o r 2 9 3 0 V n
o r 2 9 3 0 V n
Left LED
(Green)
Right LED
(Green)
Left LED
(Green)
Right LED
(Green)
Description
Press "Factory Reset" button once to make network connection through WPS.
Press "Factory Reset" button twice to enable or disable WLAN function.
Press "Factory Reset" button for 5 seconds to do the factory reset.
Restore the default settings. Usage: Turn on the router (ACT LED is blinking).
Press the hole and keep for more than 5 seconds. When you see the ACT LED
begins to blink rapidly than usual, release the button. Then the router will restart
with the factory default configuration.
Restart the router forcefully.
Connecters for PSTN phones.
Connecters for remote networked devices.
Status Explanation
Blinking The router is powered on and running normally.
Off The router is powered off.
On The DoS/DDoS function is active.
Blinking It will blink while deleting an attack.
On The profile of CSM (Content Security
Management) for IM/P2P application is active. (It
is enabled from CSM >> IM/P2P Profile).
On
Wireless access point is ready.
Blinking
It will blink while wireless traffic goes through.
It will blink fast when WPS is working and it will
return to normal condition after two minutes.
(You need to setup WPS within 2 minutes.)
On The WAN1 or WAN2 port is connected.
Blinking It will blink while transmitting data.
On The router is managed (handled) by Telnet.
Blinking It will blink while being managed by IE browser.
On The phone connected to this port is off-hook.
Off The phone connected to this port is on-hook.
Blinking A phone call comes.
On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting.
On The port is connected with 100Mbps.
Off The port is disconnected with 10Mbps.
On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting.
On The port is connected with 100Mbps.
Off The port is disconnected with 10Mbps.
Vigor2930 Series User's Guide
