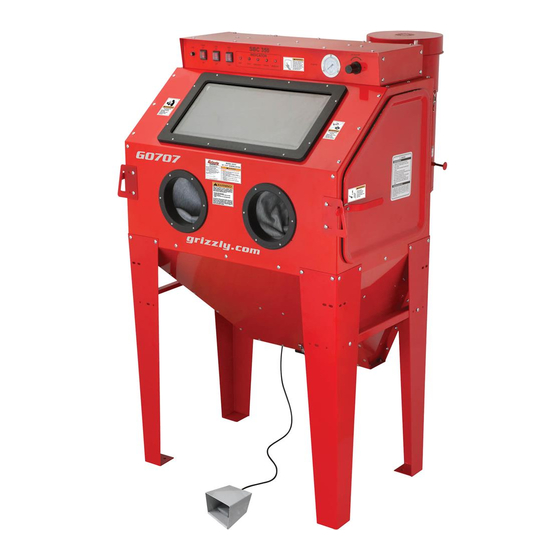

24" x 37" blast cabinet
Hide thumbs Also See for G0707:

Advertisement

Quick Links

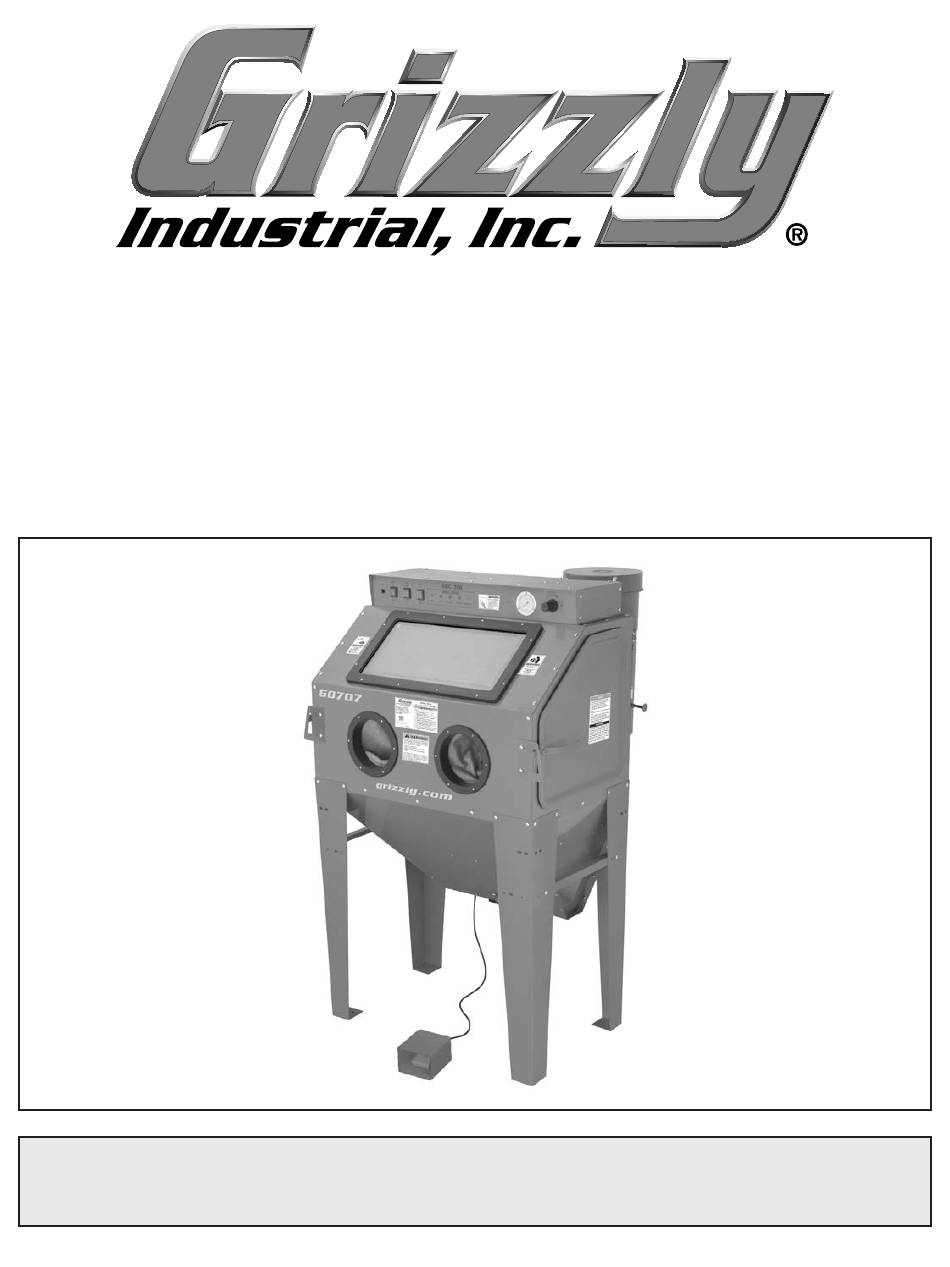

MODEL G0707
24" X 37" BLAST CABINET
OWNER'S MANUAL
(For models manufactured since 12/23)
COPYRIGHT © NOVEMBER, 2009 BY GRIZZLY INDUSTRIAL, INC., REVISED DECEMBER, 2023 (LW)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#CR12334 PRINTED IN CHINA
V5.12.23
***Keep for Future Reference***

Advertisement

Table of Contents
loading

Summary of Contents for Grizzly G0707

  • Page 1 OWNER'S MANUAL (For models manufactured since 12/23) COPYRIGHT © NOVEMBER, 2009 BY GRIZZLY INDUSTRIAL, INC., REVISED DECEMBER, 2023 (LW) WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
  • Page 2 This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators. Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.
  • Page 3: Table Of Contents

    Table of Contents INTRODUCTION ..........................2 Manual Accuracy .........................2 Contact Info ..........................2 Machine Description ........................2 Identification ..........................3 Machine Data Sheet ........................4 SECTION 1: SAFETY ........................6 Safety Instructions for Machinery ....................6 Additional Safety for Blast Cabinets ....................8 SECTION 2: POWER SUPPLY ......................9 SECTION 3: SETUP ........................11 Needed for Setup ........................11 Unpacking ..........................11...
  • Page 4: Introduction

    The cabinet is equipped with two side loading doors for ease of workpiece loading and unload- ing. Media is quickly unloaded through the hopper dump port door, and reloaded through a side door. Model G0707 (Mfd. Since 12/23)
  • Page 5: Identification

    H. Hopper Dump Chute B. Pressure Regulator w/Gauge Gloves C. Dust Collector Foot Pedal Blasting Switch D. LED Light Assembly K. Heavy Duty Leg Support System E. Canister Plunger for Filter Cleaning Viewing Window Side-Loading Door Model G0707 (Mfd. Since 12/23)
  • Page 6: Machine Data Sheet

    Bearings..........................Shielded.&.Permanently.Lubricated Main Specifications: Operation Information Suggested.Operating.Air.Pressure.Range...................... 60.-.80.PSI Maximum.Air.Pressure............................120.PSI Recommended.Air.Supply..........................5.-.28.CFM Maximum.Abrasive.Capacity..........................400.lbs. Suggested.Abrasive.Capacity..........................55.lbs. Abrasive.Type..............................Dry.Only Load.&.Unload.Access..............................Sides Maximum.Load.Capacity..........................20.Gallons Design.Type................................Floor Model G0707 (Mfd. Since 12/23) Model G0707 Page 1 of 2...
  • Page 7 Paint.Type/Finish............................Powder.Coated Other Specifications: Country.of.Origin................................China Warranty.................................... 1.Year Serial.Number.Location..............................ID.Label Assembly.Time................................60.Minutes Features: Dual.Side-Loading.Doors Panel-Mounted.Electric.and.Air.Controls Spare.Blast.Tips Spare.Window.Protection.Sheets Included.Dust.Collector.Filter Screened.Work.Table Foot.Pedal.Blasting.Control Gun.Blasting.System Hands-Free.Blasting.System Hopper.Dump.Gate Easy-Clean.Dust.Collector Reusable.Dust.Collector.Filter.Element External.Lighting.System Model G0707 (Mfd. Since 12/23) Page 2 of 2 Model G0707...
  • Page 8: Section 1: Safety

    Never operate under the influence of drugs or injury or blindness from flying particles. Everyday alcohol, when tired, or when distracted. eyeglasses are NOT approved safety glasses. Model G0707 (Mfd. Since 12/23)
  • Page 9 EXPERIENCING DIFFICULTIES. If at any time debris. Make sure they are properly installed, you experience difficulties performing the intend- undamaged, and working correctly BEFORE ed operation, stop using the machine! Contact our operating machine. Technical Support at (570) 546-9663. Model G0707 (Mfd. Since 12/23)
  • Page 10: Additional Safety For Blast Cabinets

    If normal safety pre- respect. Failure to do so could result in cautions are overlooked or ignored, seri- serious personal injury, damage to equip- ous personal injury may occur. ment, or poor work results. Model G0707 (Mfd. Since 12/23)
  • Page 11: Section 2: Power Supply

    Model G0707 (Mfd. Since 12/23)
  • Page 12 Do not modify or use an adapter on the plug provided—if it will not fit the outlet, have a qualified electrician install the proper outlet with a verified ground. -10- Model G0707 (Mfd. Since 12/23)
  • Page 13: Section 3: Setup

    (or other you are completely satisfied with the machine and lifting equipment) rated for have resolved any issues between Grizzly or the weight of this machine. shipping agent. You MUST have the original pack- aging to file a freight claim. It is also extremely helpful if you need to return your machine later.
  • Page 14: Inventory

    Cabinet Screws M6-1 x 12 ....... 26 Figure 2. Inventory. Q. Flange Nuts M6-1 ........26 R. Door Hinge Pins ......... 4 S. Phillips Head Screws M6-1 x 12 ....8 Flange Nuts M6-1 ........8 -12- Model G0707 (Mfd. Since 12/23)
  • Page 15: Hardware Recognition Chart

    Hardware Recognition Chart USE THIS CHART TO MATCH UP HARDWARE DURING THE INVENTORY AND ASSEMBLY PROCESS. Flat Head Screw -13- Model G0707 (Mfd. Since 12/23)
  • Page 16: Site Considerations

    Only install in an Shadows, glare, or strobe effects that may distract access restricted location. or impede the operator must be eliminated. 81" 22" 22" 36" Figure 3. Space required for full range of movement. -14- Model G0707 (Mfd. Since 12/23)
  • Page 17: Mounting To Shop Floor

    Anchor studs are stronger and more per- manent alternatives to lag shield anchors; however, they will stick out of the floor, which may cause a tripping hazard if you decide to move your machine. -15- Model G0707 (Mfd. Since 12/23)
  • Page 18: Air Supply Setup

    If even small amounts of fine media dust enter the compressor through the intake or during general service, rings, pistons, valves, and bear- ings can be quickly destroyed. -16- Model G0707 (Mfd. Since 12/23)
  • Page 19: Assembly

    (see Figure 9). Figure 6. Leg installation. Plug dust collector in to in-line power sup- ply plug protruding from control box (see With help of assistant, stand blast cabinet up on legs. Figure 9). -17- Model G0707 (Mfd. Since 12/23)
  • Page 20 11. Place spring on plunger shaft, and thread jam nut and knob onto plunger, as shown in Figure 10. Knob Jam Nut Figure 12. Mounting locations for door hinges. Spring & Plunger Figure 10. Canister plunger. -18- Model G0707 (Mfd. Since 12/23)
  • Page 21 ON and media blasting begins, seal may be broken, causing leakage. 24. Inspect all seals, hose clamps, glove clamps, Door Latch Receiver and window seals for any potential leaks. Correct as required. Figure 15. Door latched closed. -19- Model G0707 (Mfd. Since 12/23)
  • Page 22: Test Run

    To test run machine: Congratulations! The Test Run is complete. Clear all setup tools away from machine. POWER LIGHT DUST INDICATOR Light Air Pressure Gauge Regulator Knob Panel Figure 18. Control panel. -20- Model G0707 (Mfd. Since 12/23)
  • Page 23: Section 4: Operations

    Read books/magazines or get formal training before beginning any proj- ects. Regardless of the content in this sec- tion, Grizzly Industrial will not be held liable for accidents caused by lack of training. -21- Model G0707 (Mfd. Since 12/23)
  • Page 24: Control Panel

    CIRCUIT Light: Illuminates when machine controls are ready for use. L. Foot Switch: Controls fixed-blast gun air ON and OFF. G. DOOR-CLOSED Light: Illuminates when both side doors are closed, indicating that blast cabinet is sealed. -22- Model G0707 (Mfd. Since 12/23)
  • Page 25: Basic Operation

    Every five hours of blasting operations, clean canister filter using compressed air This section details the correct order of operations (see Figure 21). for using the Model G0707. To use blast cabinet: Prepare cabinet and workpiece for blasting as discussed in Preparation on Page 21.
  • Page 26 Some media like silicon carbide and aluminium oxide can withstand pressures of up to 120 PSI on this machine; however, most media blasting operations should occur at 80 PSI. -24- Model G0707 (Mfd. Since 12/23)
  • Page 27: Blasting Media

    G6536: 15 lbs. Aluminum Oxide 120 Grit. G6537: 15 lbs. Aluminum Oxide 60 Grit. G6538: 15 lbs. Glass Bead 50-Micron Grit. Figure 25. Canister plunger. 14. When media blasting is complete, disconnect cabinet from power and air supply. -25- Model G0707 (Mfd. Since 12/23)
  • Page 28 The media is very durable and ishing surfaces, removing scratches, and has a long life; however, it MUST be kept very dry basic cleaning of most materials. to prevent rusting. The main types are as follows: -26- Model G0707 (Mfd. Since 12/23)
  • Page 29 It is often used for strip- structure is blocky and sharp-edged. ping sensitive surfaces or delicate parts that may consist of multiple types of com- pounds. It is available in a wide range of grit sizes. -27- Model G0707 (Mfd. Since 12/23)
  • Page 30 Pumice can be used for the most sensitive blasting operations where the painted or finished surface must be entirely unaffected by the removal of the foreign matter. The structure is block-shaped and is honeycombed. -28- Model G0707 (Mfd. Since 12/23)
  • Page 31: Section 5: Accessories

    To reduce this risk, only install accessories lifesaver. Also compatible with safety glasses! recommended for this machine by Grizzly. NOTICE Refer to our website or latest catalog for additional recommended accessories.
  • Page 32: Section 6: Maintenance

    Inspect work gloves for holes/wear. • Empty cabinet, wipe down inside, and inspect for leaks/damage. • Repaint bare metal portions of cabinet (with windows covered). • Replace filter as required. Figure 29. Dust collector service. -30- Model G0707 (Mfd. Since 12/23)
  • Page 33: Section 7: Service

    6. Remove media but leave just enough for blasting operation. 7. Blast gun is damaged or has bad seals. 7. Disassemble blast gun, clean and reseal. 8. Foot valve is damaged, clogged, or has 8. Clean and reseal foot valve. leaks. -31- Model G0707 (Mfd. Since 12/23)
  • Page 34: Filter Replacement

    (see Figure 31). ing stud, then re-install wing nut and dust collector (see Figure 30). Motor Cover Dust Collector Wing Nut Latch Latch Canister Canister Figure 30. Dust collector and filter. Figure 31. Motor cover. -32- Model G0707 (Mfd. Since 12/23)
  • Page 35 DO NOT use emery cloth or sandpaper to clean com- mutator or you will make it out-of-round, which will cause new brushes to arc, over- heat, and wear out quickly. Figure 34. Brush housing removal. -33- Model G0707 (Mfd. Since 12/23)
  • Page 36 Figure 40. Fan cover installation. 12. Install and tighten brush housing retaining 15. Re-install motor cover and dust collector screws. assembly into canister, and latch dust collec- tor in place. 16. Test dust collector operation. -34- Model G0707 (Mfd. Since 12/23)
  • Page 37: Led Replacement

    Turn LED light assembly over and attach light supports to control box frame with screws removed in Step 3. 10. Install control box cover with screws removed in Step 2. Figure 42. Location of light supports and screws. -35- Model G0707 (Mfd. Since 12/23)
  • Page 38: Section 8: Wiring

    Technical Support at (570) 546-9663. The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com. -36- Model G0707 (Mfd. Since 12/23)
  • Page 39: Control Box Wiring Diagram

    In: 110VAC 60Hz Out: 16VAC Circuit Board Spool Valve Fixed Blast Gun Page 40 T-IN T-OUT Control Solenoid Air Regulator PSI Gauge LIGHT DUST POWER 15A Fuse Switch Switch Switch -37- READ ELECTRICAL SAFETY Model G0707 (Mfd. Since 12/23) ON PAGE 36!
  • Page 40: Electronic Component Photos

    Electrical Component Photos Control Door Limit Switch (1 of 2) Dust Collector Motor Foot Pedal Switch Figure 44. Locations of electrical components. Figure 45. Control box wiring. -38- READ ELECTRICAL SAFETY Model G0707 (Mfd. Since 12/23) ON PAGE 36!
  • Page 41: Other Electrical Component Wiring

    Brown: 10-30 VDC Black: PNP NO Blue: 0V Left Right Door Limit Door Limit Switch Switch Figure 48 Figure 48 OMKQN OMKQN Figure 48. Door limit switch. -39- READ ELECTRICAL SAFETY Model G0707 (Mfd. Since 12/23) ON PAGE 36!
  • Page 42: Air System Diagram

    Circuit Board Control Panel Page 37 Quick Disconnect Fitting To Air Spool Valve Page 37 Fixed Blast Gun Hand-Held Blast Gun Cabinet Hopper with Media Fixed Gun Foot Valve -40- READ ELECTRICAL SAFETY Model G0707 (Mfd. Since 12/23) ON PAGE 36!
  • Page 43: Section 9: Parts

    SECTION 9: PARTS We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown are available for purchase. Call (800) 523-4777 or visit www.grizzly.com/parts to check for availability. Main 56-3 14V2 56V2-1 56V2...
  • Page 44 WINDOW COVER FILM 21-1/2" x 4" 56V2 P0707056V2 DUST COLLECTOR ASSY V2.12.23 83V3 P0707083V3 LEFT DOOR V2.12.23 56V2-1 P0707056V2-1 MOTOR COVER V2.12.23 P0707084 GROMMET M9.5 -42- BUY PARTS ONLINE AT GRIZZLY.COM! Model G0707 (Mfd. Since 12/23) Scan QR code to visit our Parts Store.
  • Page 45 95V2 P0707095V2 PHLP HD SCR M6-1 X 12 V2.01.21 90-1 P0707090-1 BLAST TIP 7MM ID 96V2 P0707096V2 FLANGE NUT M6-1 V2.01.21 -43- BUY PARTS ONLINE AT GRIZZLY.COM! Model G0707 (Mfd. Since 12/23) Scan QR code to visit our Parts Store.
  • Page 46: Labels & Cosmetics

    Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com. -44- BUY PARTS ONLINE AT GRIZZLY.COM!
  • Page 47: Warranty & Returns

    WARRANTY & RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance.
