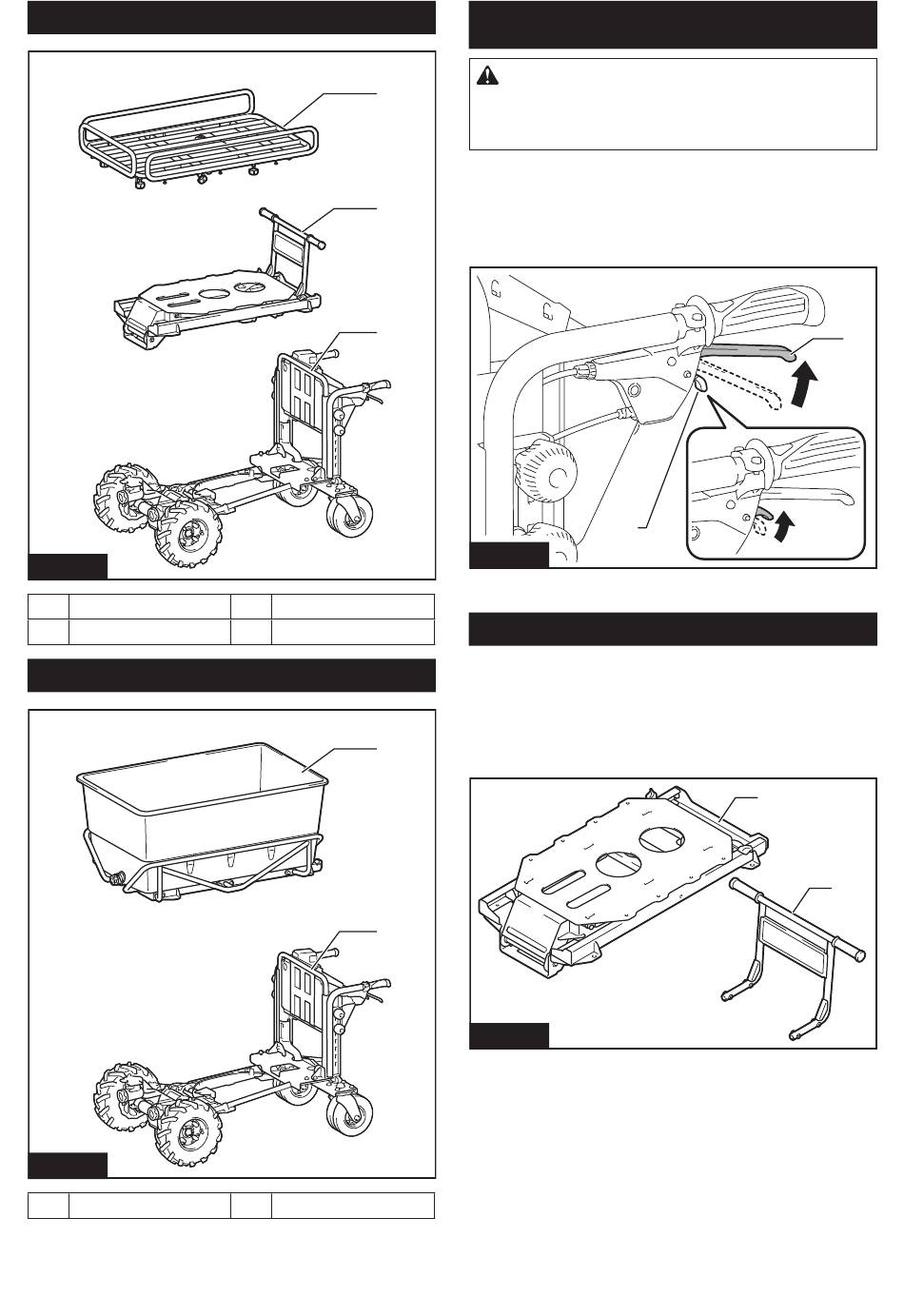

When the carrier is installed
Fig.5
1 Carrier
3 Base unit
When the flat bucket is installed
Fig.6
1 Flat bucket
1
2
3
2 Dump unit
- -
1
2
2 Base unit
ASSEMBLY
CAUTION:
Always be sure that the machine
is switched off and the battery cartridges are
removed before carrying out any work on the
machine.
Before installing or removing the carrier, bucket, flat
bucket, or dump unit, be sure to lock the brake lever.
To lock the brake lever, pull and hold the brake lever,
then pull the lock lever, and then release the brake lever
while pulling the lock lever.
Fig.7
► 1. Brake lever 2. Lock lever
Installing or removing the dump unit
Optional accessory
Installing the dump unit
1. Take out the dump unit and the handle from the
box.
Fig.8
► 1. Dump unit 2. Handle
12 ENGLISH
2
1
1
2
