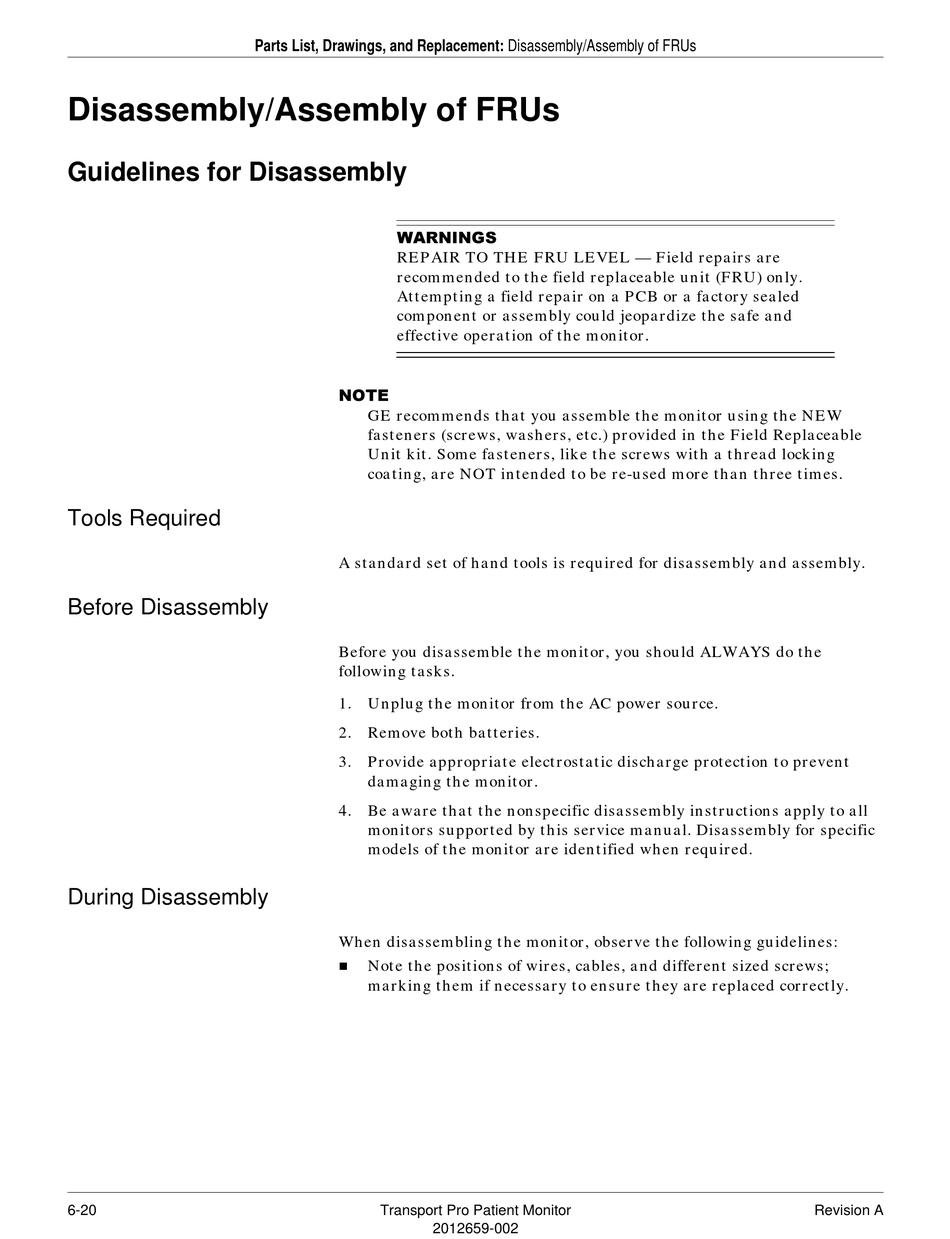

Disassembly/Assembly of FRUs

Guidelines for Disassembly

Tools Required
Before Disassembly
During Disassembly
6-20
Parts List, Drawings, and Replacement: Disassembly/Assembly of FRUs
:$51,1*6
REPAIR TO THE FRU LEVEL — Field repairs are
recommended to the field replaceable unit (FRU) only.
Attempting a field repair on a PCB or a factory sealed
component or assembly could jeopardize the safe and
effective operation of the monitor.
127(
GE recommends that you assemble the monitor using the NEW
fasteners (screws, washers, etc.) provided in the Field Replaceable
Unit kit. Some fasteners, like the screws with a thread locking
coating, are NOT intended to be re-used more than three times.
A standard set of hand tools is required for disassembly and assembly.
Before you disassemble the monitor, you should ALWAYS do the
following tasks.
1. Unplug the monitor from the AC power source.
2. Remove both batteries.
3. Provide appropriate electrostatic discharge protection to prevent
damaging the monitor.
4. Be aware that the nonspecific disassembly instructions apply to all
monitors supported by this service manual. Disassembly for specific
models of the monitor are identified when required.
When disassembling the monitor, observe the following guidelines:
Note the positions of wires, cables, and different sized screws;
marking them if necessary to ensure they are replaced correctly.
Transport Pro Patient Monitor
2012659-002
Revision A
