USER MANUAL

5.5 Network

This menu allows you to configure network parameters, such as PPPoE, DHCP. The most
common types are DHCP. Most probably your network type is DHCP, unless the network is
manually addressed. If you need an authentication user name and password to the Internet,
then choose PPPoE.

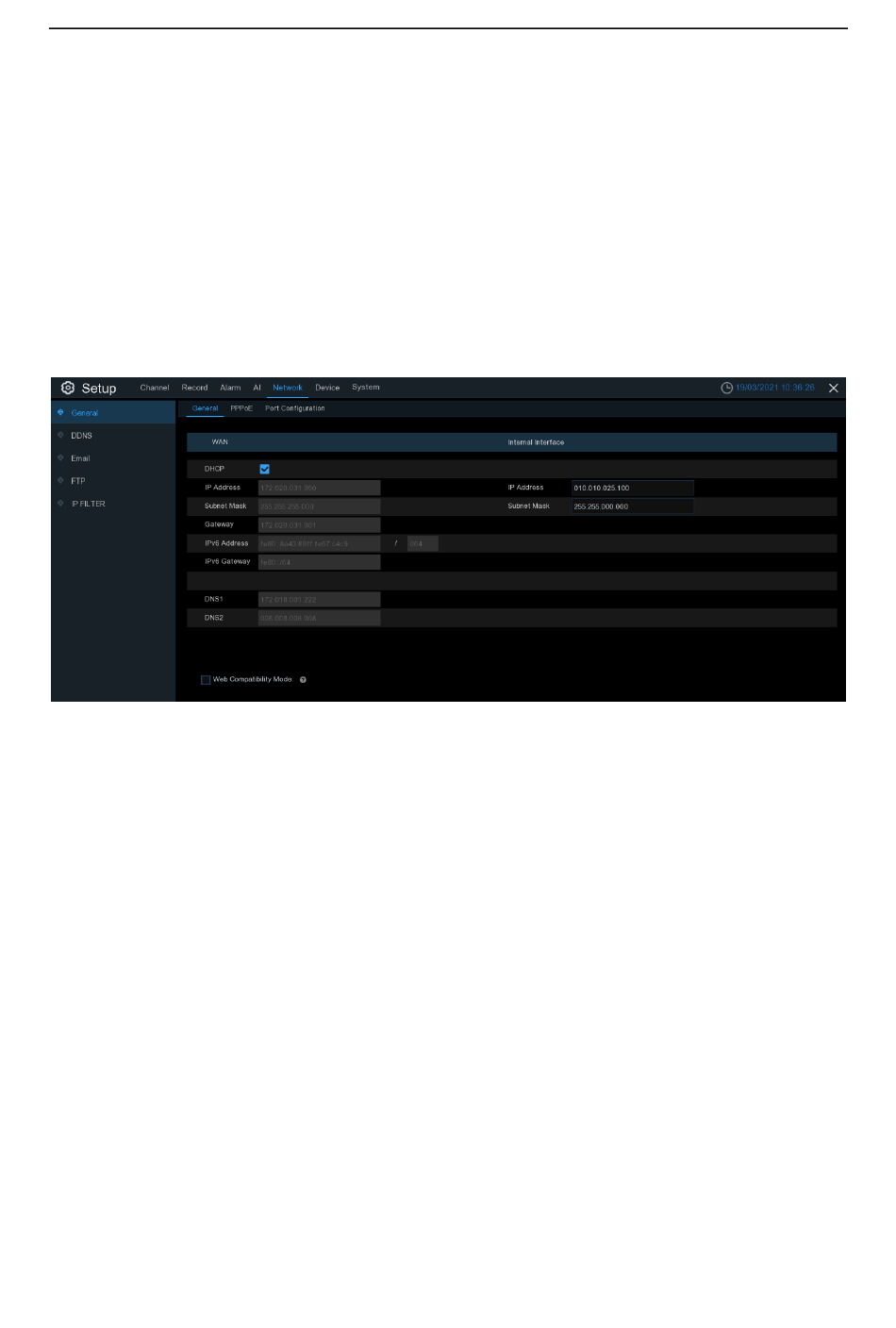

5.5.1 General

5.5.1.1 General
If you connect to a router allows to use DHCP, please check the DHCP box. The router will
assign automatically all the network parameters for your NVR. Unless the network is
manually addressed below parameters:
IP Address: The IP address identifies the NVR in the network. It consists of four groups of
numbers between 0 to 255, separated by periods. For example, "192.168.001.100".
Subnet Mask: Subnet mask is a network parameter which defines a range of IP addresses
that can be used in a network. If IP address is like a street where you live then subnet mask
is like a neighborhood. The subnet address also consists of four groups of numbers,
separated by periods. For example, "255.255.000.000".
Gateway: This address allows the NVR to access the Internet. The format of the Gateway
address is the same as the IP Address. For example, "192.168.001.001".
DNS1/DNS2: DNS1 is the primary DNS server and DNS2 is a backup DNS server. Usually, it
should be enough just to enter the DNS1 server address.
84
