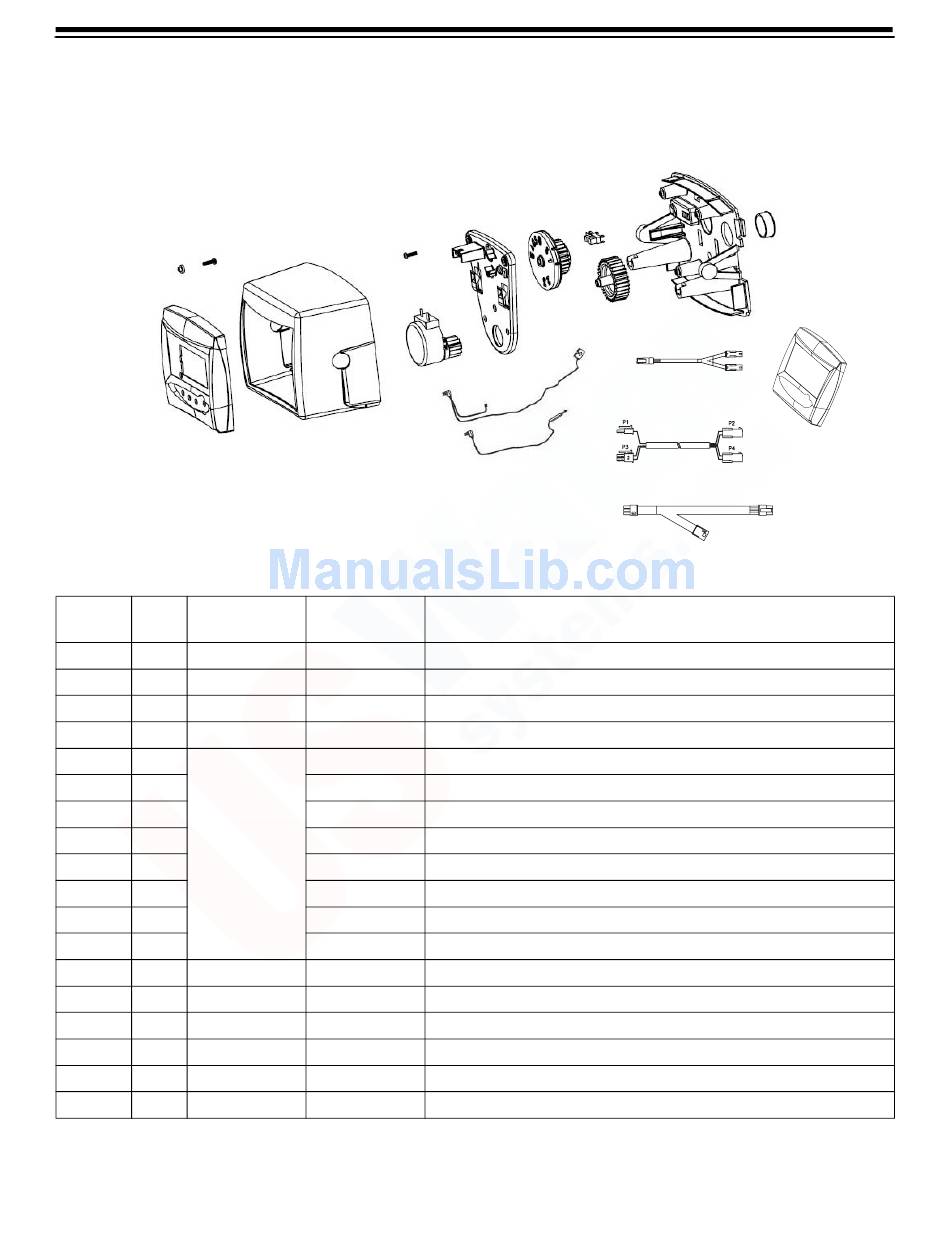

764 Logix Magnum Exploded View

3
2
1
Item Part Number
Qty.
No. - Kits
1 1
2 2
3 2
4 1
5 2
6 1
7 1
8 1
1233809
9 1
10 1
11 1
12 1
13 1
14 1
15 1
16 1
17 1
*
* Not shown.
7
5
4
6
Part Number Description
3020715 764 Series Logix Control
1266224 Bushing, Logix Mount
1005981 Screw
1262674 Cover, Logix Magnum
1005981 Screw
1238861 Motor, Logix Cable Assembly
1262673 Gear Plate, Logix
1262581 Drive Gear, Logix
1235373 Optic Sensor
1262672 Idler Gear, Logix
1262580 Back Plate, Logix Magnum
1239647 Bushing, Cable
1266722 Meter Cable, 32 inches
3016715 Assembly, Sensor Cable Logix Twin
3016775 Assembly, Cable Extension 3 m (9.8 ft) Logix Twin
3020228 Kit, Assembly Cable Remote Start/Multi-Tank Lockout 3 m (9.8 ft)
1254886 Secondary Faceplate
1000827 Outdoor Cover
11
8 9
10
6
13
52
12
14
17
15
16
