Flow Diagrams

The Magnum control valve utilizes a series of pilot valves to
properly position the diaphragm valve cartridges (Figure
21). The pilot valves are activated by the camshaft (Figure
22). The flow diagrams that follow represent the Service
Cycle for a 5-cycle conditioner and
Front
Spring

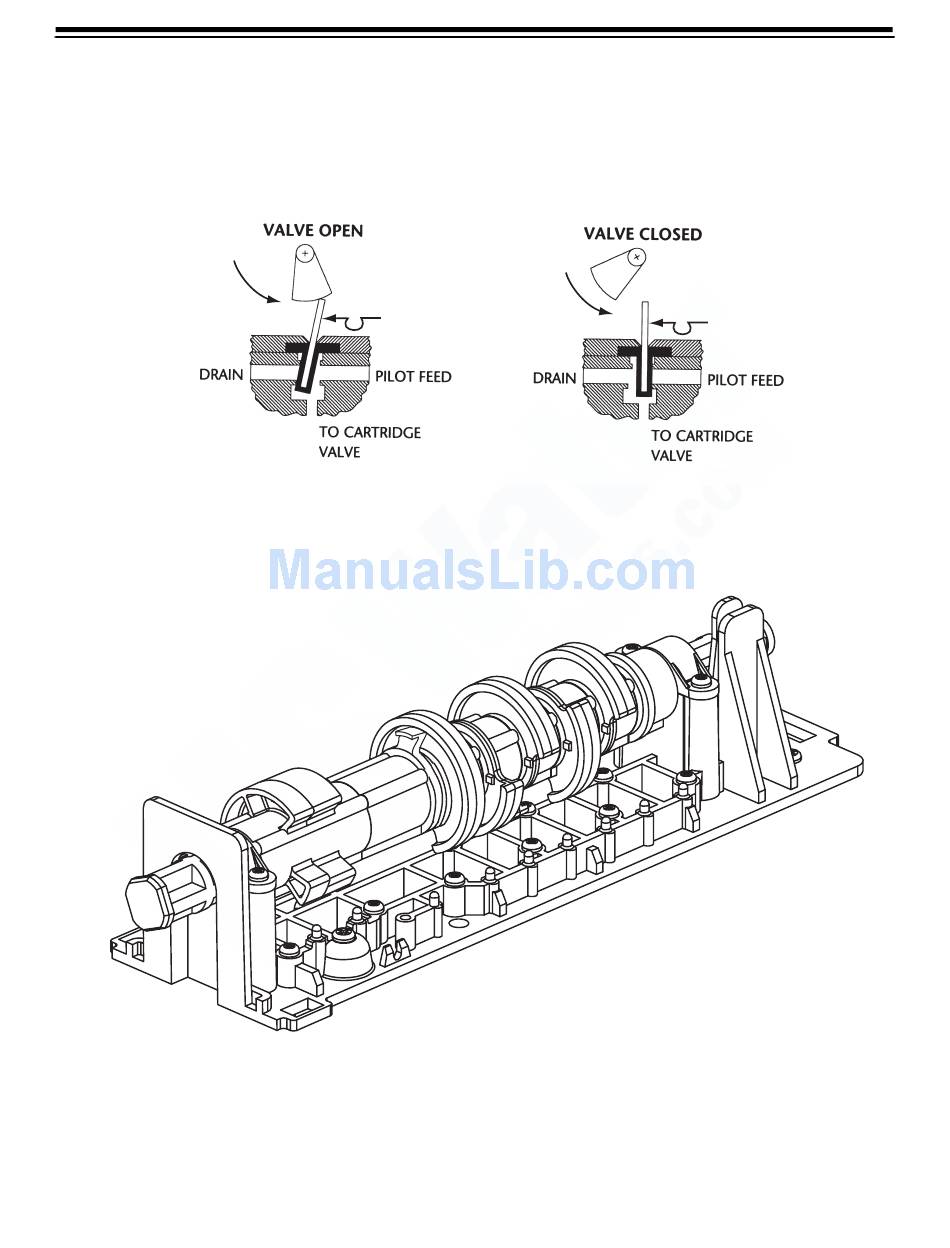

Figure 21 Pilot Valve Principle of Operation, Front View
Figure 22 Cam Assembly
3-cycle filter configuration. Both the Hardwater Bypass
and No Hardwater Bypass service flow diagrams are
presented.
18
Spring
Back
