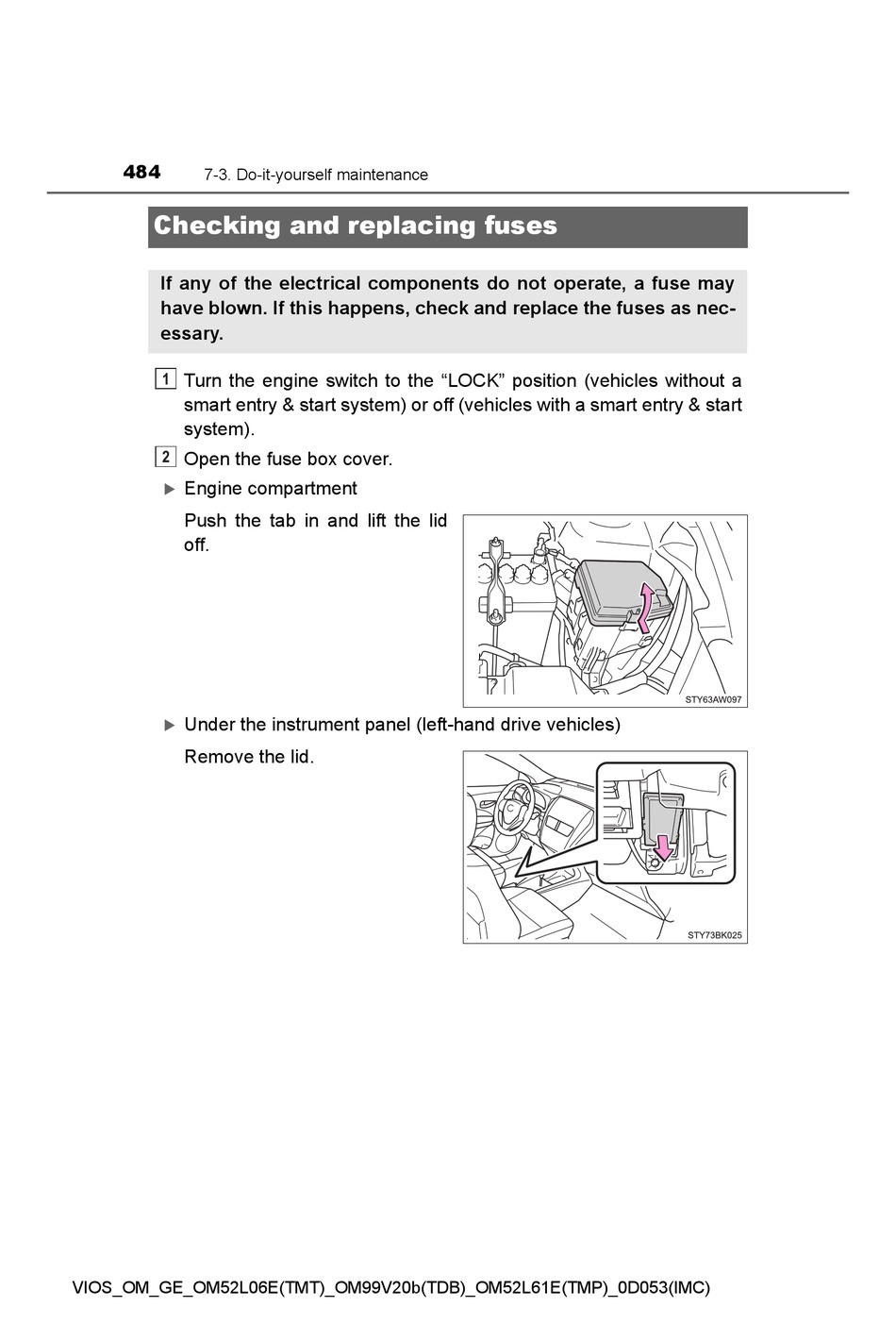

484
7-3. Do-it-yourself maintenance

Checking and replacing fuses

If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
Turn the engine switch to the "LOCK" position (vehicles without a
smart entry & start system) or off (vehicles with a smart entry & start
system).
2 Open the fuse box cover.
 Engine compartment
Push the tab in and lift the lid
off.

Under the instrument panel (left-hand drive vehicles)


Remove the lid.
