UPS2000-G-(6 kVA–20 kVA) User Manual (Lead-Acid Battery) Issue Date 2024-03-15 HUAWEI DIGITAL POWER TECHNOLOGIES CO., LTD.
Page 2
Notice The purchased products, services and features are stipulated by the contract made between Huawei Digital Power Technologies Co., Ltd. and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS"...
About This Document About This Document Purpose This document describes the UPS2000-G-(6 kVA–20 kVA)/UPS2000-G-15KRTL-01/ UPS2000-G-20KRTL-01 in terms of the features, performance, appearance, structure, working principle, installation, operation, and maintenance. UPS is short for uninterruptible power system. Intended Audience This document is intended for: ●...
(208 V/220 V system), all L and N wires change to L1 and L2 wires. ● If the AC input of the UPS2000-G-10 kVA uses dual live wires, connect AC INPUT L1, L2, and L3 that are short-circuited with a short-circuit busbar to live wire L1, and connect AC INPUT N to live wire L2.
Page 32

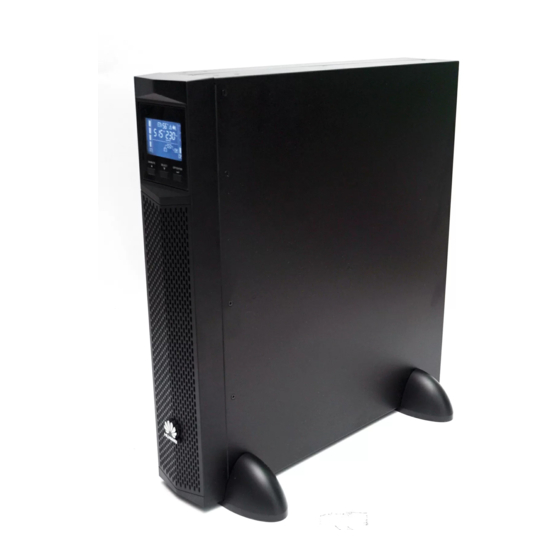

UPS2000-G-(6 kVA–20 kVA) User Manual (Lead-Acid Battery) 2 Product Overview Figure 2-4 Front and rear views of the UPS2000-G-10 kVA (1) Control panel (2) AC input ports (3) AC output ports (4) Parallel ports (pL and sL) (5) CAN (6) Optional card slot...
It is recommended that the length of the cable connected to the MBS port be less than or equal to 10 m. 2.4 Optional Components NO TICE For UPS2000-G-10 kVA/15 kVA/20 kVA, if the AC input and AC output use two live wires, PDC-0038V4ACIOA, PDC-0091V2ACIOA, and PDC-0038V4ACIOA-V2 cannot be used. Issue 23 (2024-03-15)
Page 40
MBS and EPO ports are wrapped with magnetic ring 2 (at least five circles). ● Model of magnetic rings 1 and 2: DN85H or E2F In a UPS2000-G-15 kVA/20 kVA parallel system using the TN-C power distribution system, there are two scenarios for installing magnetic rings on the UPS mains...
L2, and L3 that are short-circuited with a short-circuit busbar to live wire L1, and connect AC INPUT N to live wire L2. ● If the AC input of the UPS2000-G-15 kVA/20 kVA uses two live wires, connect bypass and mains input bL1, bL2, bL3, mL1, mL2, and mL3 that are short- circuited with a short-circuit busbar to live wire L1, and connect the input N and N with a short-circuit busbar to live wire L2.
Page 49
Charger charge ● Batteries are charged to more than 90% in 3 hours for time UPS2000-G-6 kVA/10 kVA standard models. ● It depends on battery capacity for UPS2000-G-6 kVA/10 kVA long backup time models and UPS2000-G-15 kVA/20 kVA. Charger rated Each cell has an equalized charge voltage of 2.35 V and a...
Power distribution TN, TN-C, TN-C-S, TT system Pollution degree NO TE The UPS2000-G-15 kVA/20 kVA (single-phase input single-phase output) supports 3+1 parallel systems at most, instead of 4+0 parallel systems. 3.9 Safety Regulations and EMC Table 3-15 Safety compliance Safety Certification...
Page 59
User Manual (Lead-Acid Battery) 4 Installation UPS2000-G-15 kVA/20 kVA Dimensions Figure 4-2 UPS2000-G-15 kVA/20 kVA installation dimensions UPS Mounting Ear Dimensions Figure 4-3 Dimensions of the mounting ears for the 6 kVA/10 kVA UPS Figure 4-4 Dimensions of mounting ears for the 15 kVA/20 kVA UPS...
You can select an installation mode based on the site requirements. For details about how to install a UPS and UPS2000-G-(6 kVA–10 kVA) Quick Guide and UPS2000- connect cables, see the G-(15 kVA–20 kVA) Quick Guide .
UPS2000-G-(6 kVA–20 kVA) User Manual (Lead-Acid Battery) 4 Installation Figure 4-11 Bypass backfeed protection connections for the UPS2000-G-6 kVA/10 kVA/15 kVA/20 kVA (two live wires) 4.4 Verifying the Installation The following table lists the check items. Table 4-4 Post-installation check items...

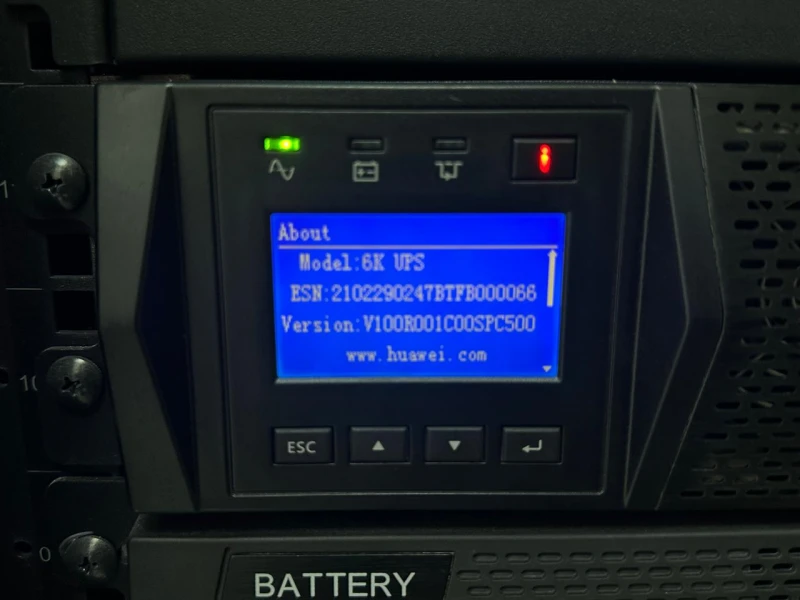

● The menus of the UPS2000-G-15KRTL/UPS2000-G-20KRTL/UPS2000- G-15KRTL-01/UPS2000-G-20KRTL-01 are used as an example. The information in the menu screenshots is for reference only. For details about the parameters, see the actual LCD display of the UPS.
Page 80
● UPS2000-G-15KRTL-01/UPS2000-G-20KRTL-01 If multiple working modes coexist, the priority is as follows: converter mode (CM) > ECO mode > self-load mode (SM) > normal mode (NM). ● a: indicates that only the UPS2000-G-15KRTL-01/UPS2000-G-20KRTL-01 is supported. Table 5-4 describes the icons on the menu screen.
NO TE ● To ensure system security, change the LCD and WebUI passwords after the first login. ● The UPS2000-G-15KRTL-01/UPS2000-G-20KRTL-01 prompts users to change the initial password. If an incorrect password is entered five consecutive times, the account will be logged out for 5 minutes.
Page 106
UPS2000-G-(6 kVA–20 kVA) User Manual (Lead-Acid Battery) 5 Control Panel NO TE The battery sharing setting is available only for the UPS2000-G-15KRTL-01/UPS2000- G-20KRTL-01. Battery sharing is enabled for the UPS2000-G-6KRTS/UPS2000- G-10KRTS/UPS2000-G-15KRTL/UPS2000-G-20KRTL by default. Figure 5-35 Basic screen (UPS2000-G-6KRTS/UPS2000-G-10KRTS/UPS2000- G-15KRTL/UPS2000-G-20KRTL) Table 5-26 Basic screen (UPS2000-G-6KRTS/UPS2000-G-10KRTS/UPS2000-...
Page 129
User Manual (Lead-Acid Battery) 6 Operations NO TICE 1. The UPS2000-G-15KRTL/20KRTL can connect to an external battery string (40 batteries in the standard configuration, and an even number of 32 to 40 batteries are supported). The neutral wire is connected to the middle point of the battery string.
Figure 6-14 EPO cable connection on a single UPS NO TE ● For UPS2000-G-15KRTL-01/UPS2000-G-20KRTL-01, choose Settings > System Parameters > Other Settings and set EPO Enable to Enable. ● Connect an external switch to the EPO port on the UPS. After you turn on the switch, the inverter shuts down, and the UPS will not transfer to bypass mode.
Step 11 Set battery sharing for each UPS based on site requirements. Figure 6-19 Setting battery sharing NO TE This step applies only to the UPS2000-G-15KRTL-01 and UPS2000-G-20KRTL-01. Step 12 After you perform "startup operations" on each UPS in the parallel system, all UPSs transfer to normal mode.
Page 143
Figure 6-20 EPO cable connection in a parallel system NO TE ● For UPS2000-G-15KRTL-01/UPS2000-G-20KRTL-01, choose Settings > System Parameters > Other Settings and set EPO Enable to Enable. ● Connect an external switch to the EPO port on the UPS. After you turn on the switch, the UPS stops inverter output and does not transfer to bypass mode.
The SNMP card has an exquisite, advanced, and unique design, and features high performance and reliability. It has the following functions and features: ● Supports UPS2000-G series and implements parallel system management using only one SNMP card. ● Adapts to the 10 Mbit/s, 100 Mbit/s fast Ethernet (FE) by using an IP address that is configurable on the LCD.
Cleaning or Replacing the Air Filter (6 kVA and 10 kVA) Prerequisites If the model is UPS2000-G-6KRTS, UPS2000-G-6KRTL, UPS2000-G-10KRTS, or UPS2000-G-10KRTL, perform the following steps to clean or replace the air filter. Procedure Step 1 Remove the front panel. Step 2 Remove the air filter.
No generator is connected to the UPS. ● The mains, batteries, charger, and discharger are normal. No overload alarm is generated. ● UPS2000-G-15KRTL-01/UPS2000-G-20KRTL-01: The load rate ranges from 5% to 100% and the load fluctuation does not exceed 10%. ● UPS2000-G-6KRTS/UPS2000-G-10KRTS/UPS2000-G-15KRTL/UPS2000- G-20KRTL: The load rate is 20%–80% and the load fluctuation does not exceed...
