GE ApexPro Service Manual page 144

Parts lists, drawings and replacement
7-26
USB
connector

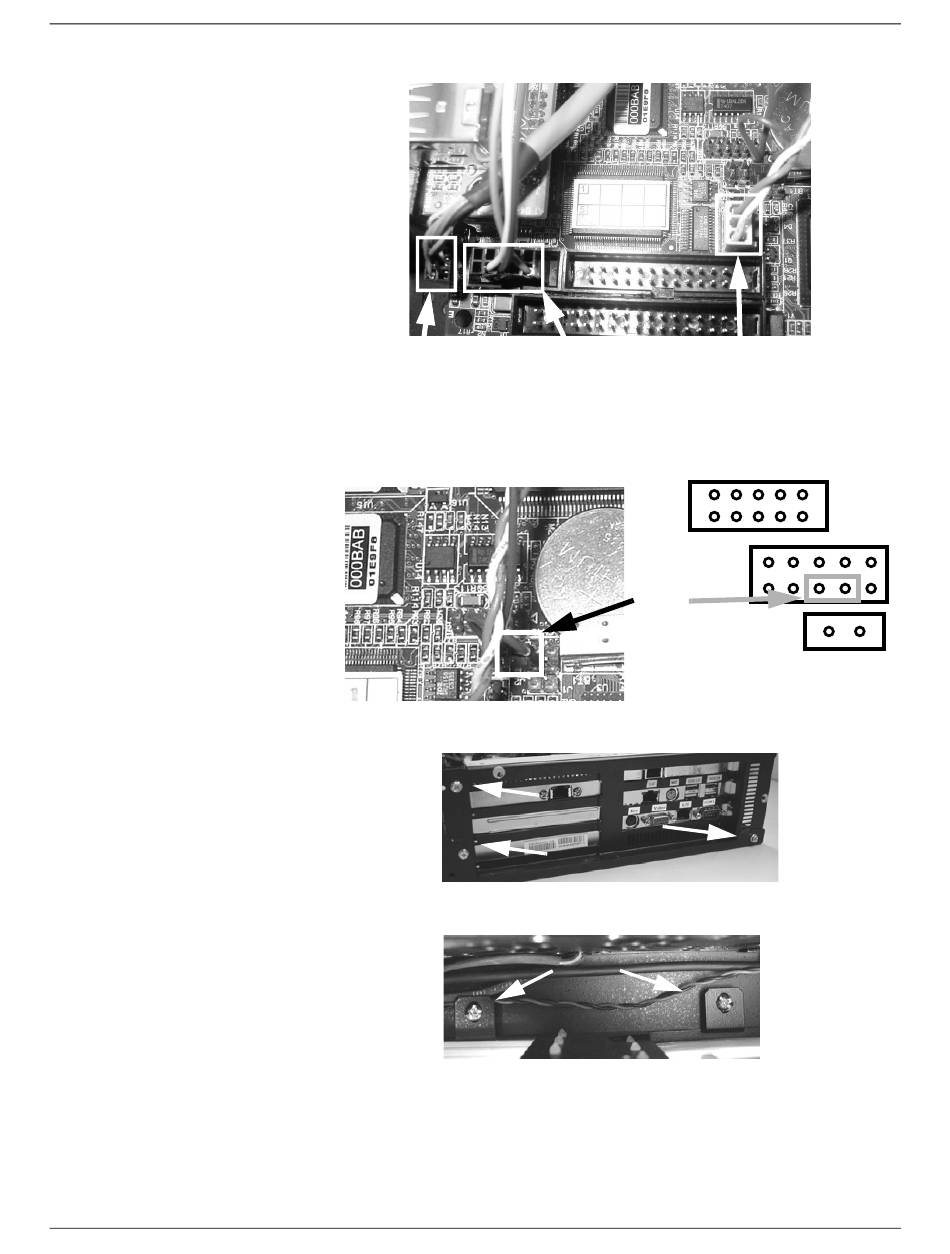

7. Disconnect the watchdog timer from the receptacle near the back left corner of
the main CPU board. Note the pin position and orientation of the watchdog timer
connector for reassembly.
8. Remove the 3 screws securing the back of the CPU module to the chassis.
9. Remove the 2 screws securing the front of the CPU module to the chassis.
10. Carefully move the CPU module far enough to allow card removal.
11. Using a phillips screwdriver, remove the 2 screws securing the USB/mouse/
Unity Network MC network ports and the back of the main CPU board in the
CPU module.
ApexPro™ Telemetry
ATX connector
Serial port
connector
Watchdog
timer
connector
098A
099A, 100A
046A
048A
2001989-203C
