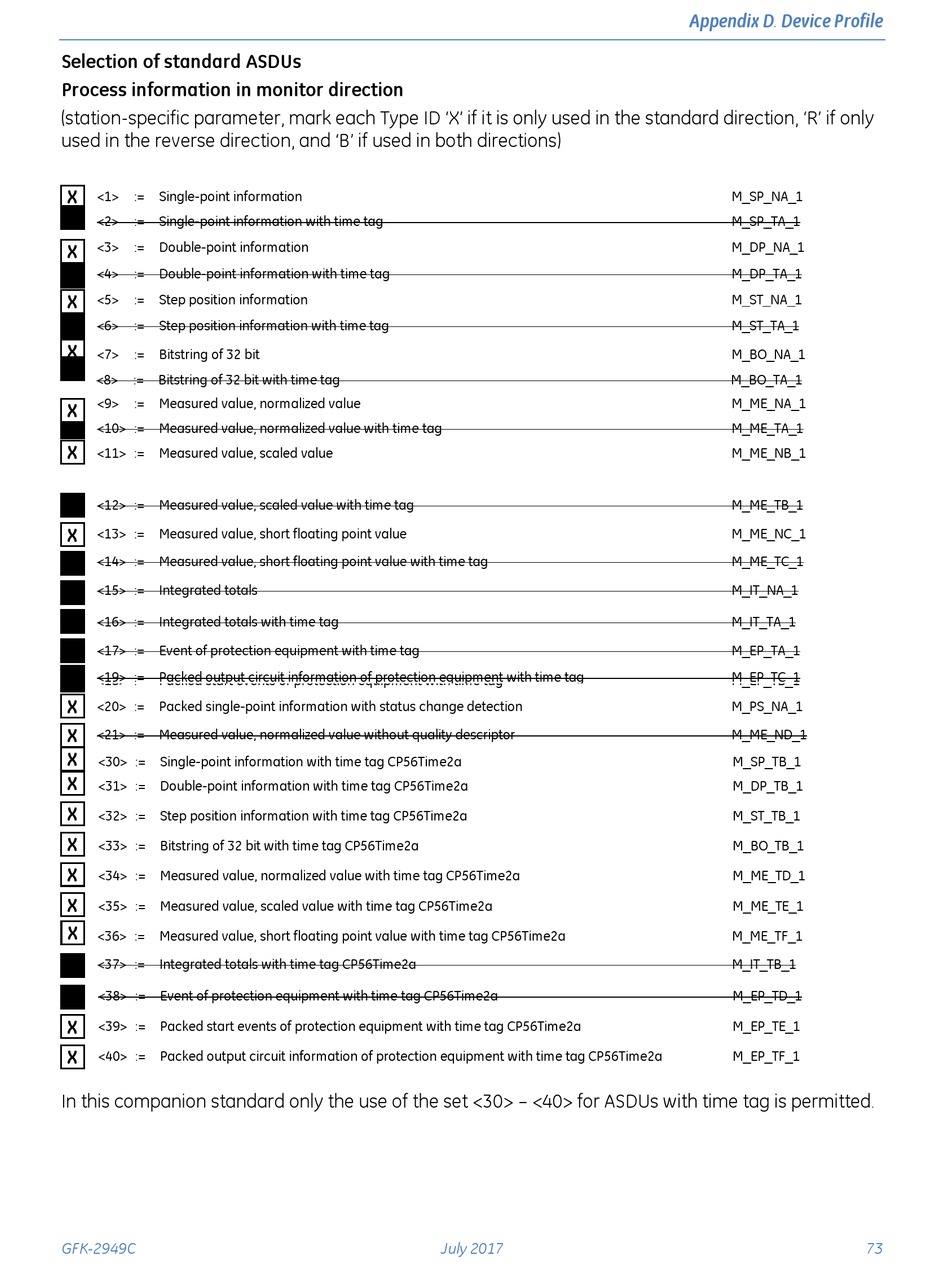

Selection of standard ASDUs
Process information in monitor direction
(station-specific parameter, mark each Type ID 'X' if it is only used in the standard direction, 'R' if only
used in the reverse direction, and 'B' if used in both directions)
X
<1> := Single-point information
<2> := Single-point information with time tag
<3> := Double-point information
X
<4> := Double-point information with time tag
X
<5> := Step position information
<6> := Step position information with time tag
X
<7> := Bitstring of 32 bit
<8> := Bitstring of 32 bit with time tag
<9> := Measured value, normalized value
X
<10> := Measured value, normalized value with time tag
X
<11> := Measured value, scaled value
<12> := Measured value, scaled value with time tag
X
<13> := Measured value, short floating point value
<14> := Measured value, short floating point value with time tag
<15> := Integrated totals
<16> := Integrated totals with time tag
<17> := Event of protection equipment with time tag
<19> := Packed output circuit information of protection equipment with time tag
<18> := Packed start events of protection equipment with time tag
X
<20> := Packed single-point information with status change detection
X
<21> := Measured value, normalized value without quality descriptor
X
<30> := Single-point information with time tag CP56Time2a
X
<31> := Double-point information with time tag CP56Time2a
X
<32> := Step position information with time tag CP56Time2a
X
<33> := Bitstring of 32 bit with time tag CP56Time2a
X
<34> := Measured value, normalized value with time tag CP56Time2a
X
<35> := Measured value, scaled value with time tag CP56Time2a
X
<36> := Measured value, short floating point value with time tag CP56Time2a
<37> := Integrated totals with time tag CP56Time2a
<38> := Event of protection equipment with time tag CP56Time2a
X
<39> := Packed start events of protection equipment with time tag CP56Time2a
X
<40> := Packed output circuit information of protection equipment with time tag CP56Time2a
In this companion standard only the use of the set <30> – <40> for ASDUs with time tag is permitted.
GFK-2949C July 2017
Appendix D. Device Profile
M_SP_NA_1
M_SP_TA_1
M_DP_NA_1
M_DP_TA_1
M_ST_NA_1
M_ST_TA_1
M_BO_NA_1
M_BO_TA_1
M_ME_NA_1
M_ME_TA_1
M_ME_NB_1
M_ME_TB_1
M_ME_NC_1
M_ME_TC_1
M_IT_NA_1
M_IT_TA_1
M_EP_TA_1
M_EP_TC_1
M_EP_TB_1
M_PS_NA_1
M_ME_ND_1
M_SP_TB_1
M_DP_TB_1
M_ST_TB_1
M_BO_TB_1
M_ME_TD_1
M_ME_TE_1
M_ME_TF_1
M_IT_TB_1
M_EP_TD_1
M_EP_TE_1
M_EP_TF_1
