Chapter 3. Configuration

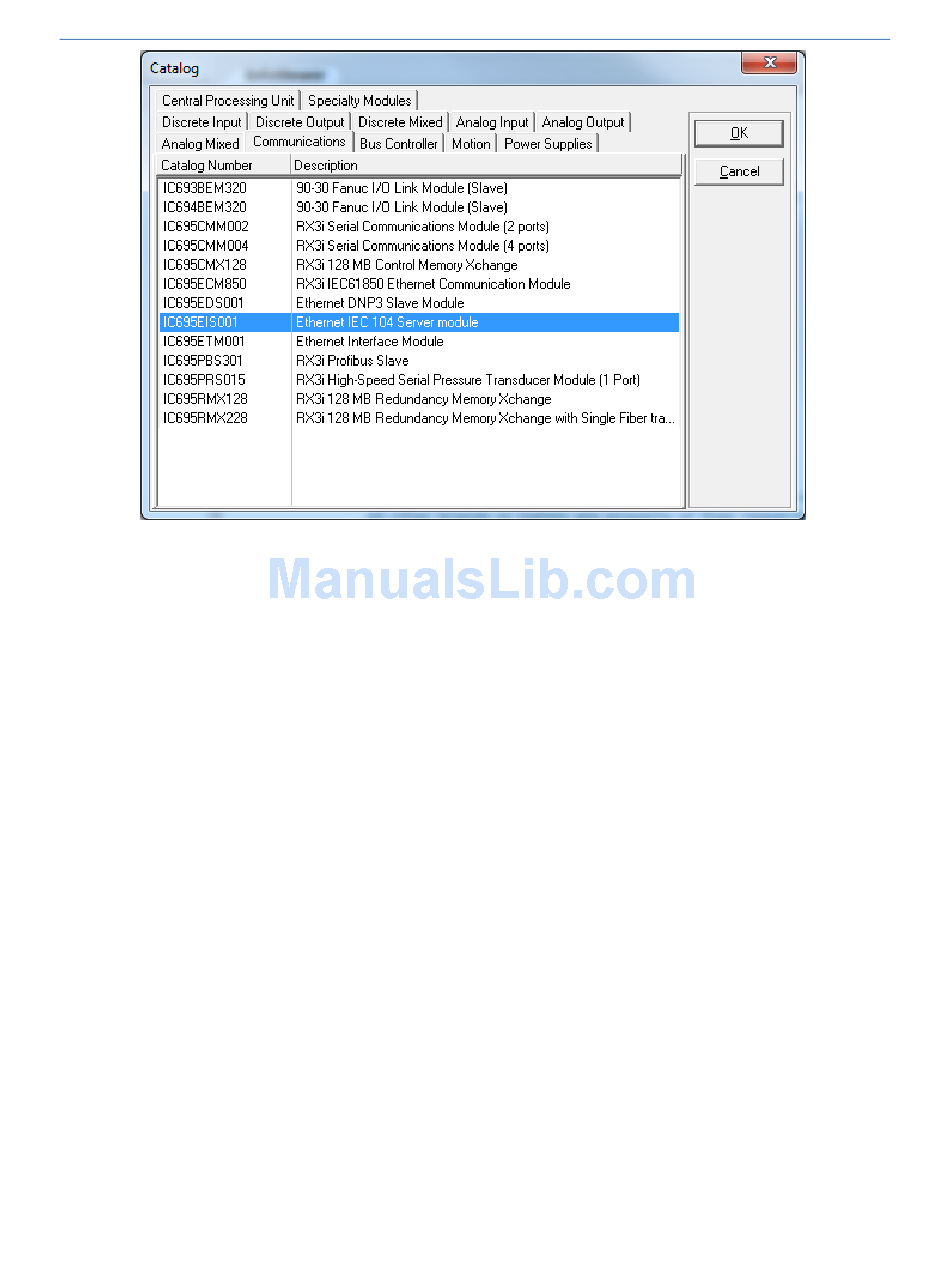

Figure 6: Selection of EIS001 for Installation

Note: that any I/O or registers selected for EIS001 write operations should not be assigned to any
other modules, as they will be overwritten. PME does not check for such potential conflicts. For
example, the %I space allocated to an input module should not be assigned to any IEC 104 object
configured to an EIS001 module. Similarly, where multiple EIS001 modules are present in the same
RX3i system, their configuration ought not to overlap as far as write operations to the CPU is
concerned.
The GEIP-provided examples use variable mode on the EIS001 module to identify the terminals, and
prevent un-intended overlap through the use of symbolic variables.
20 PACSystems RX3i Ethernet 104 Server Module User Manual GFK-2949C
