6.3.3 Configuration Examples for Address Translation

Case 1: Configuring Translation Memory Tables with two Different Offset Values and CPO with a
Non-Zero Value

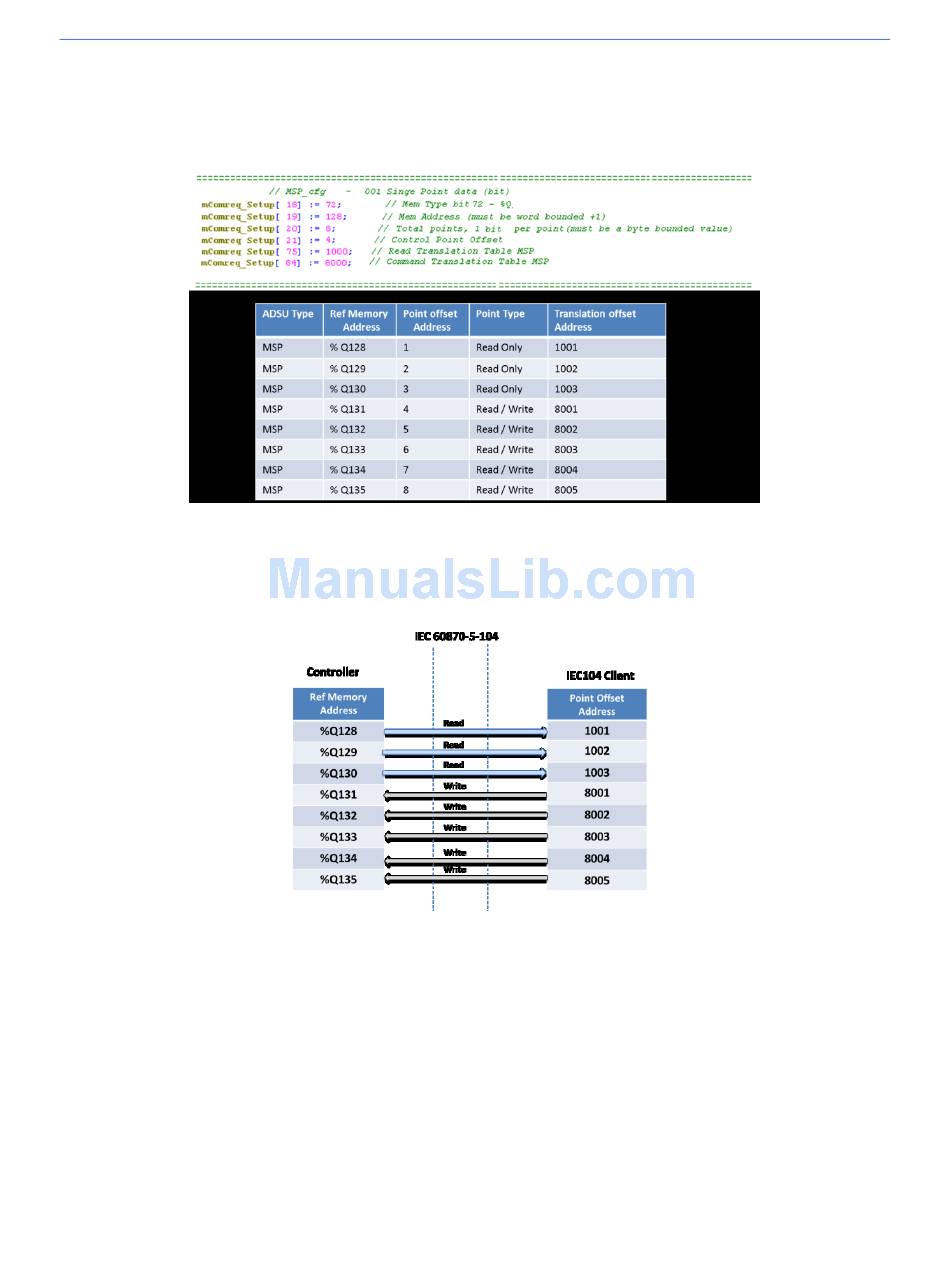

Figure 15: COMMREQ Parameters & Corresponding Read/Write Permissives (Case 1)
Points > = CPO are configured for Read / Write operations.
•
Points < CPO are Configured for Read only.
•

Figure 16: Red/Write Interaction between Controller and IEC104 Client (Case 1)

Master requesting (read & write commands) for corresponding point offset address should
•
be synchronized with translation memory offset address
