Installing The Processor Module Power Pod Mounting Screws; Routing The Turbofan Power Cables Through The Heatsink Posts - HP rp3440 Service Manual

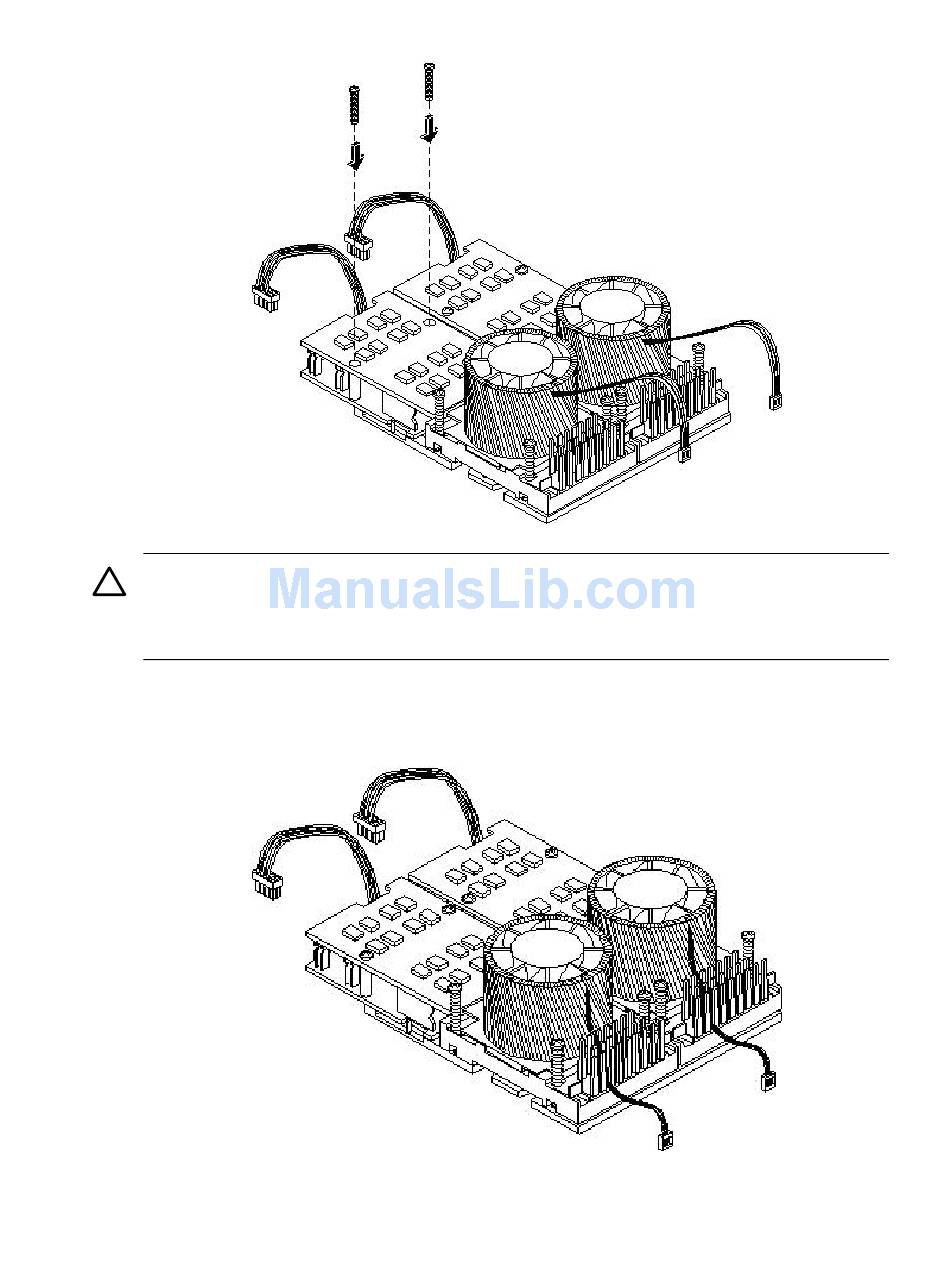

Figure 6-50 Installing the Processor Module Power Pod Mounting Screws
CAUTION:
and the processor airflow guide. Ensure the cables are below the top surface of the heatsink
posts before installing the processor airflow guide by routing the cables through the heatsink
posts (Figure
13. Route the turbo fan power cables through the heatsink posts so the cables will not be pinched
when the processor airflow guide is set in place
Figure 6-51 Routing the Turbofan Power Cables Through the Heatsink Posts
14. Connect the turbo fan power cable to the system board.
15. Connect the power pod cable to the power connector on the system board.
164 Removing and Replacing Components
Turbo fan power cables can be damaged if pinched between the heatsink posts
6-51).
(Figure 6-51).
