Replacing the Processor Airflow Guide

To replace the processor airflow guide, follow these steps:

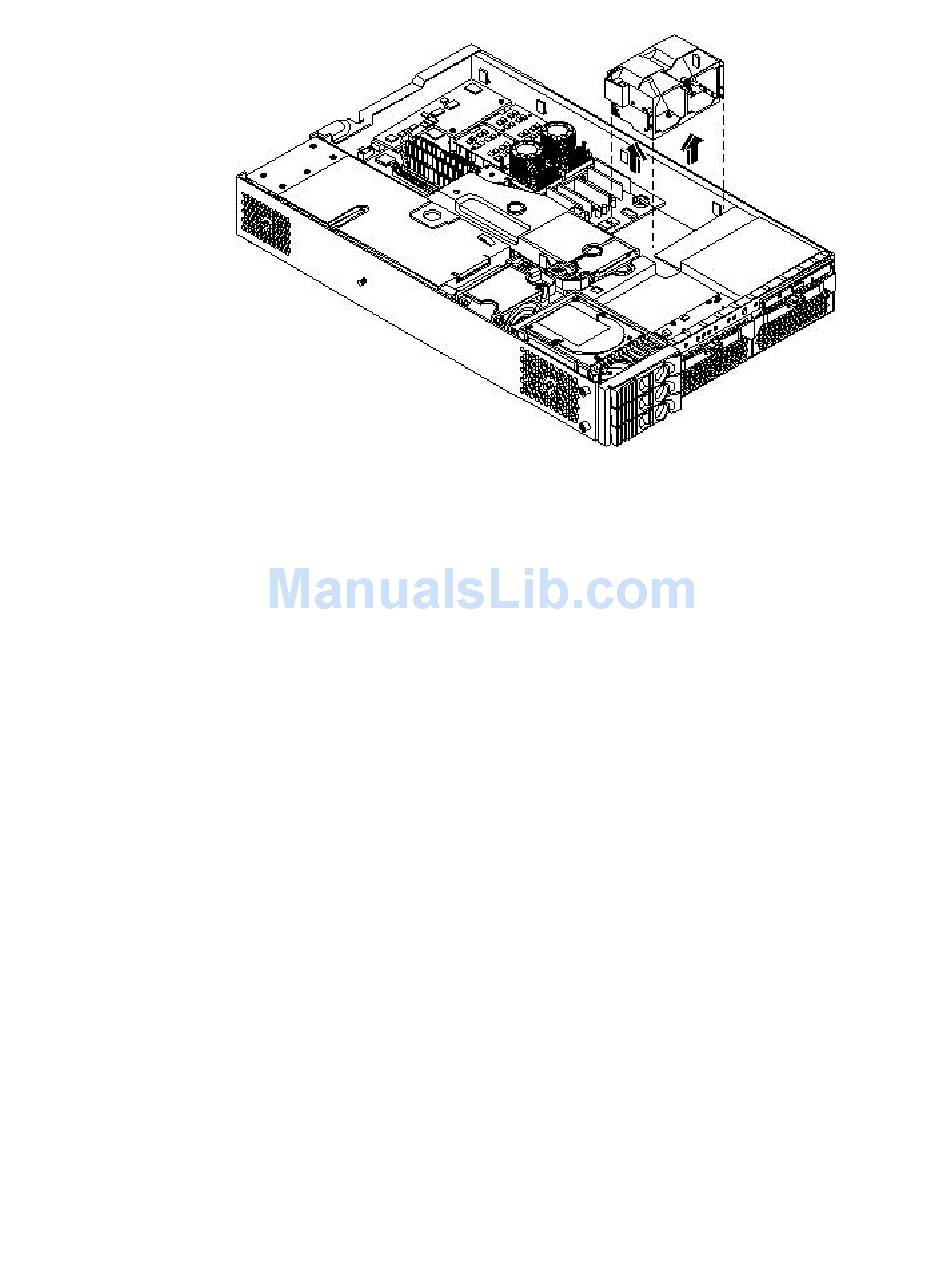

1. Replace the front portion of the airflow guide:
a. Align the release latch of the front half of the airflow guide over the release latch post
and snap it in place.
b. Connect the power connector on the front portion of the guide to the connector on the
system board.
2. Replace system fans 1A and 1B. (See
148 Removing and Replacing Components
"Replacing a System Fan" (page 138).)
