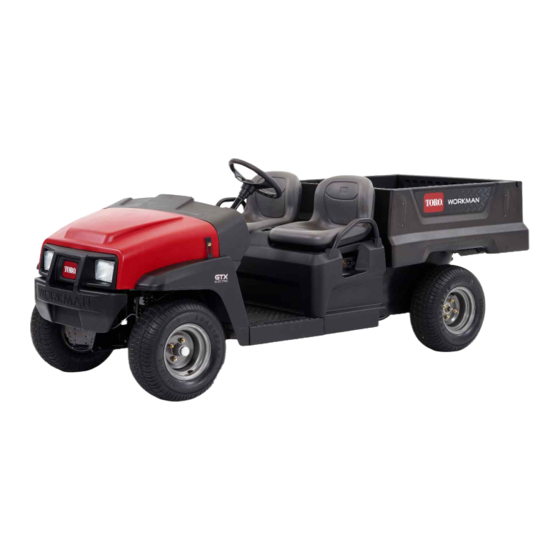

Toro Workman GTX Installation Instructions Manual

Fold-down rear facing seat
Hide thumbs Also See for Workman GTX:

Advertisement

Quick Links

Download this manual
Fold-Down Rear Facing Seat
Workman
Model No. 07123
Safety
Safety and Instructional Decals
Safety decals and instructions are easily visible to the operator and are located near any area
of potential danger. Replace any decal that is damaged or missing.
1. Pinch point, hand—keep hands away.
For machines with a ROPS installed only
1. Tipping hazard—there is no ROPS protection for rear
passengers; avoid tipping the machine; do not turn corners
quickly.
1. Read the Operator's
Manual.
© 2018—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
®
GTX Utility Vehicle
120-0625
138-5554
138-9231
2. Max gross vehicle weight
must be less than 1,403
kg (3,095 lb).
Register at www.Toro.com.
decal120-0625
decal138-5554
decal138-9231
Form No. 3424-532 Rev A
Installation Instructions
Original Instructions (EN)
All Rights Reserved *3424-532* A
Printed in the USA

Advertisement

loading

Related Manuals for Toro Workman GTX

Summary of Contents for Toro Workman GTX

  • Page 1 1. Read the Operator’s 2. Max gross vehicle weight Manual. must be less than 1,403 kg (3,095 lb). © 2018—The Toro® Company Register at www.Toro.com. Original Instructions (EN) All Rights Reserved *3424-532* A 8111 Lyndale Avenue South Printed in the USA...

  • Page 2: Table Of Contents

    Installation Loose Parts Use the chart below to verify that all parts have been shipped. Description Qty. – No parts required Prepare the machine for installation. – No parts required Remove the plastic cargo bed. Flatbed Footrest Carriage bolt (3/8 x 3 inches) Hex nut (3/8 inch) Button-head screw (3/8 x 1 inch) Rear-seat handle...
  • Page 3 Removing the Plastic Cargo Using an overhead hoist, lower the cargo bed. Remove the 2 pivot bolts (1/2 x 4-1/2 inches) and 2 locknuts (1/2 inch) from the pivot bracket located at the rear of the machine (Figure Using an overhead hoist, raise the plastic cargo bed.

  • Page 4: Hex Nut (3/8 Inch)

    Installing the Rear-Facing Seat Install the flatbed onto the frame of the machine using the 2 pivot bolts (1/2 x 4-1/2 inches), 2 locknuts (1/2 inch), 2 flange-head screws (3/8 x 2-1/2 inches), and 2 nuts (3/8 inch) previously removed in steps Removing the Plastic Cargo Bed (page 3).
  • Page 5 Install 4 rubber grommets onto the rear-seat handle (A of Figure Install 2 countersunk screws (1/4 inch) and 2 locknuts (1/4 inch) onto the rear-seat handle (B of Figure Feed the hold-down strap through the bottom of the footrest (C of Figure Install the rear-seat handle onto the footrest (D of Figure...
  • Page 6 Install 4 rubber grommets on the edges of the seat base as shown in Figure g258080 Figure 10 1. Rubber grommet Install the seat assembly onto the flatbed, lining up the holes on the flatbed with the holes on the hinges, and secure the rivet seat assembly to the flatbed (Figure 11).

  • Page 7: Rear-Seat Handle

    Folding the Rear-Facing Seat Remove the rear-seat handle and lay it flat on the footrest lining up the tab on the handle with the handle hole on the footrest (Figure 12). Secure the handle to the footrest using the hold-down strap and countersunk screw on the rear-seat handle (Figure 12).
  • Page 8 Fold the back rest support up and replace the quick pin as shown in Figure Note: The back rest support acts as a back tailgate. g244254 Figure 14 1. Back rest support Applying the Decals Apply the 2 pinch-point warning decals (120-0625) and 2 tipping hazard decals (138-5554) to the rear-facing seat frame using the measurements shown in Figure g258505...
