Installing the microKEYER consists of several steps:
1) Prepare microKEYER to work with your transceiver.
2) Install the necessary driver software for your operating system.
3) Configure the driver and/or application software for your specific system
4) set the audio levels

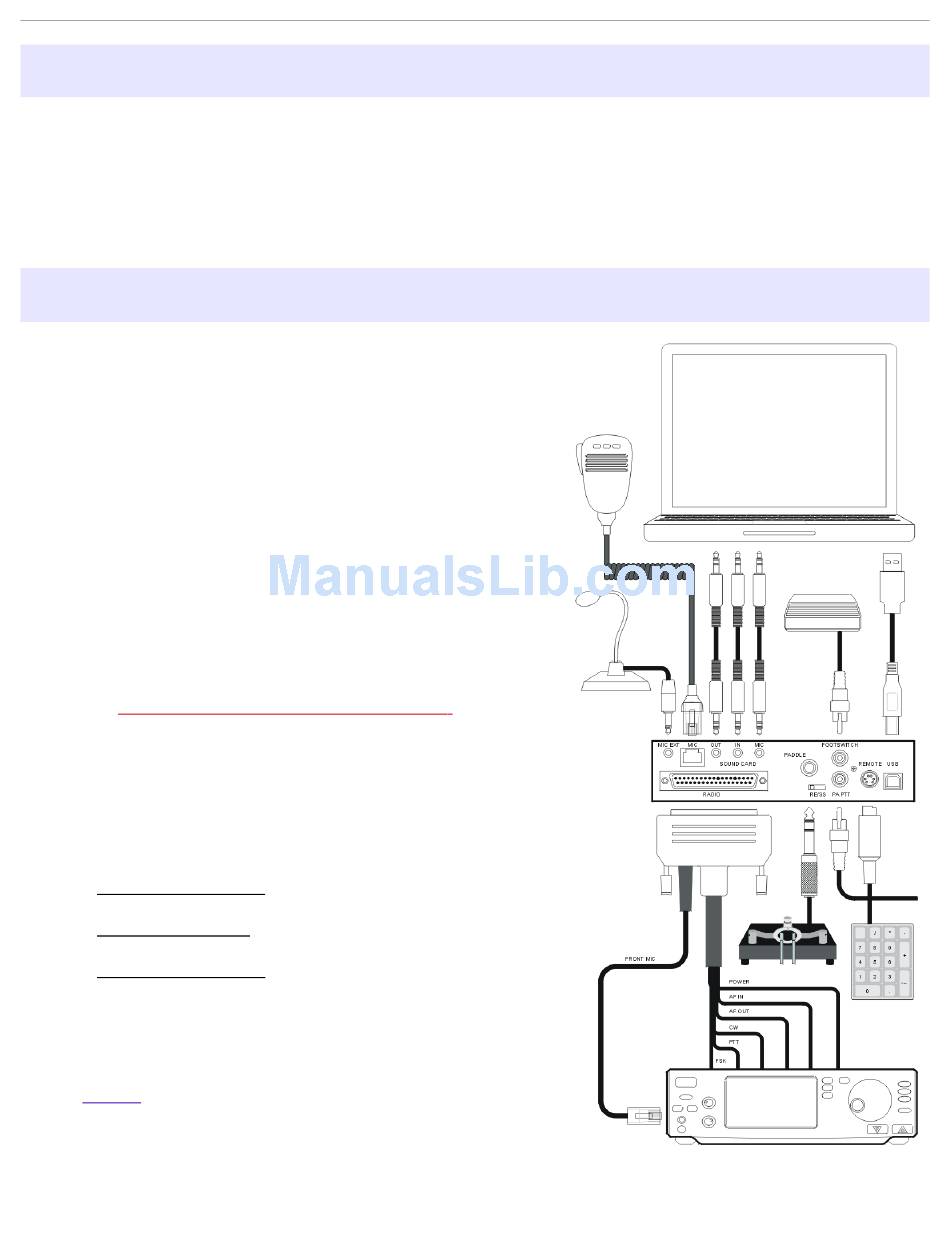

1. Turn off the radio and make microKEYER's rear panel
accessible.
2. Plug the DB37M on the radio cable set into the RADIO
connector on the rear panel of the microKEYER.
3. Connect ALL connectors from the cable set to the matching
jacks on the rear panel of your transceiver. Each connector
on the radio interface cable is marked same as the jack on
your transceiver.
Use only a microphone designed for use with your
radio. Using the wrong microphone can damage the
microphone, the radio or microKEYER.
4. If the radio cable ends with leads for external power,
connect these leads to a 12-16V DC power supply.
Be sure to observe the proper polarity .
5. Connect your paddles to the PADDLE jack.
6. If you use a foot switch, connect it to the foot switch jack.
7. connect microKEYER to the sound card using the three
supplied audio cables:
SOUNDCARD OUT:
connect to the Line Out of the sound card
SOUNDCARD IN:
connect to the Line In of the sound card
SOUNDCARD MIC:
connect to the Mic input of the sound card
8. Locate but do not connect the USB cable from DIGI
KEYER II to your computer.
NOTE: If you will be installing on a Windows computer,
skip to "MICROSOFT WINDOWS (Windows 2000, XP,
Vista, & Windows 7) INSTALLATION."
