Grizzly T26747 Instructions

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T26747 Hand-Operated Grease
Pump is a high-pressure grease delivery system
designed to be completely portable and to oper-
ate hands-free.

Specifications

Grease Outlet ................................................M14
High-Pressure Hose ............................... M14 x 8'
Volume........................................3 Gallons (12 L)
Weight .......................................................26 lbs.
Types of Grease ............................. NLGI #1, 2, 3
Inventory
Description
A. Grease Drum .............................................. 1
B. High-Pressure Hose ................................... 1
C. Grease Nozzle ............................................ 1
D. Handle ........................................................ 1
E. Hand Lever ................................................. 1
F. Hardware Bag (Not Shown) ........................ 1
— Double End Studs M6-1 x 34 ................ 3
— Lock Nuts M6-1 ..................................... 6
A
E
D

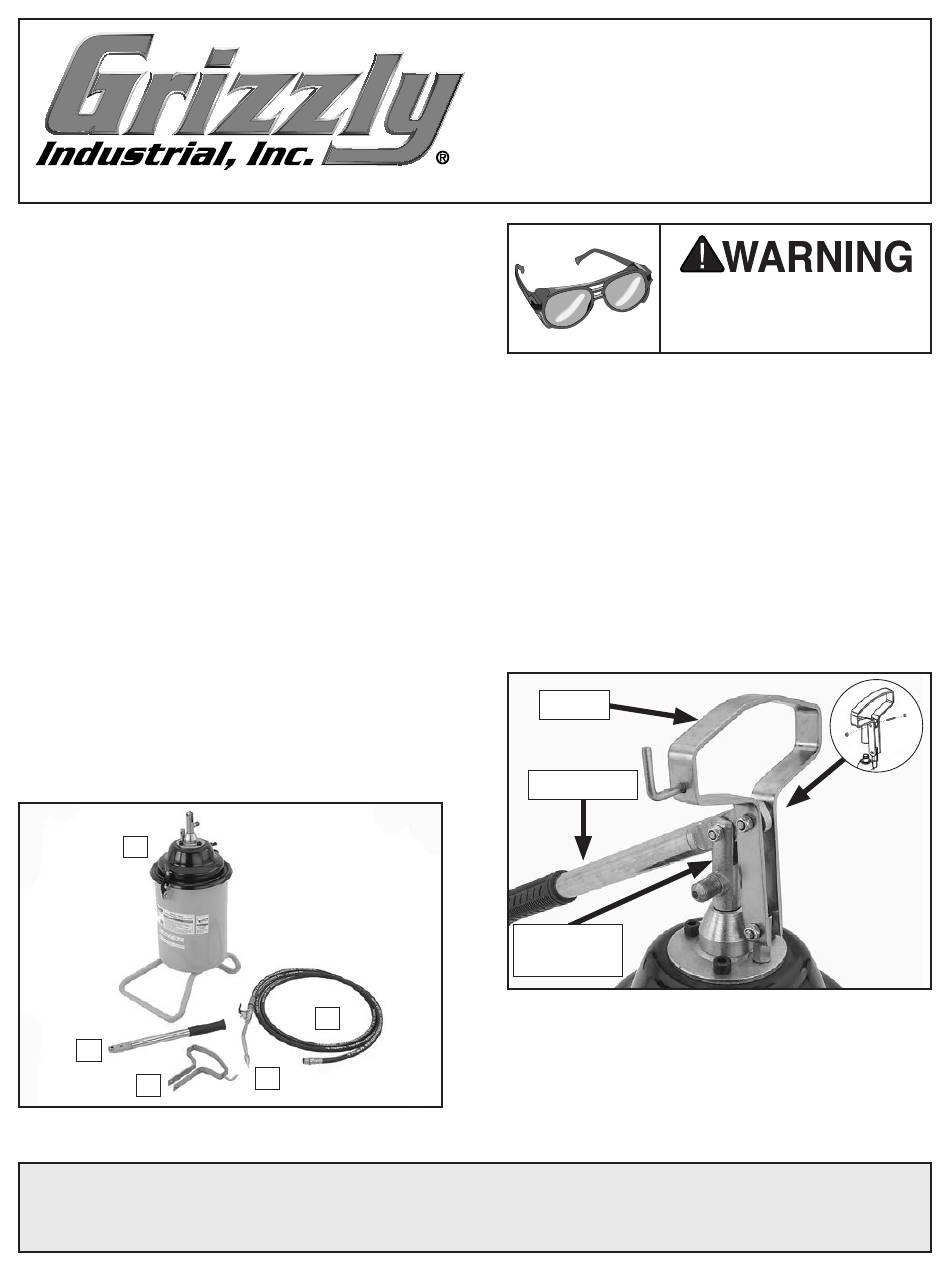

Figure 1. Model T26747 inventory components.
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
B
C
COPYRIGHT © AUGUST, 2014 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
#MN16567 PRINTED IN CHINA
MODEL T26747
HAND-OPERATED
Assembly
Tools Required
Open-End Wrench 17mm ............................1 Ea.
Open-End or Wrench/Socket 10mm ...........2 Ea.
To assemble grease pump:
1.
Attach handle and hand lever to connecting
Qty
rod at top of lid using (3) M6-1 x 34 double-
end studs and (6) M6-1 lock nuts (see Figure
2).
Handle
Hand Lever
Connecting
Rod
Figure 2. Hand lever and handle attached.
GREASE PUMP
INSTRUCTIONS
Eye injury hazard! Always
wear safety glasses when
using this machine.
Qty
x 3
