7.2.3 Configuration with up to eight HDD/SSD modules
(one backplane)
Mounting order

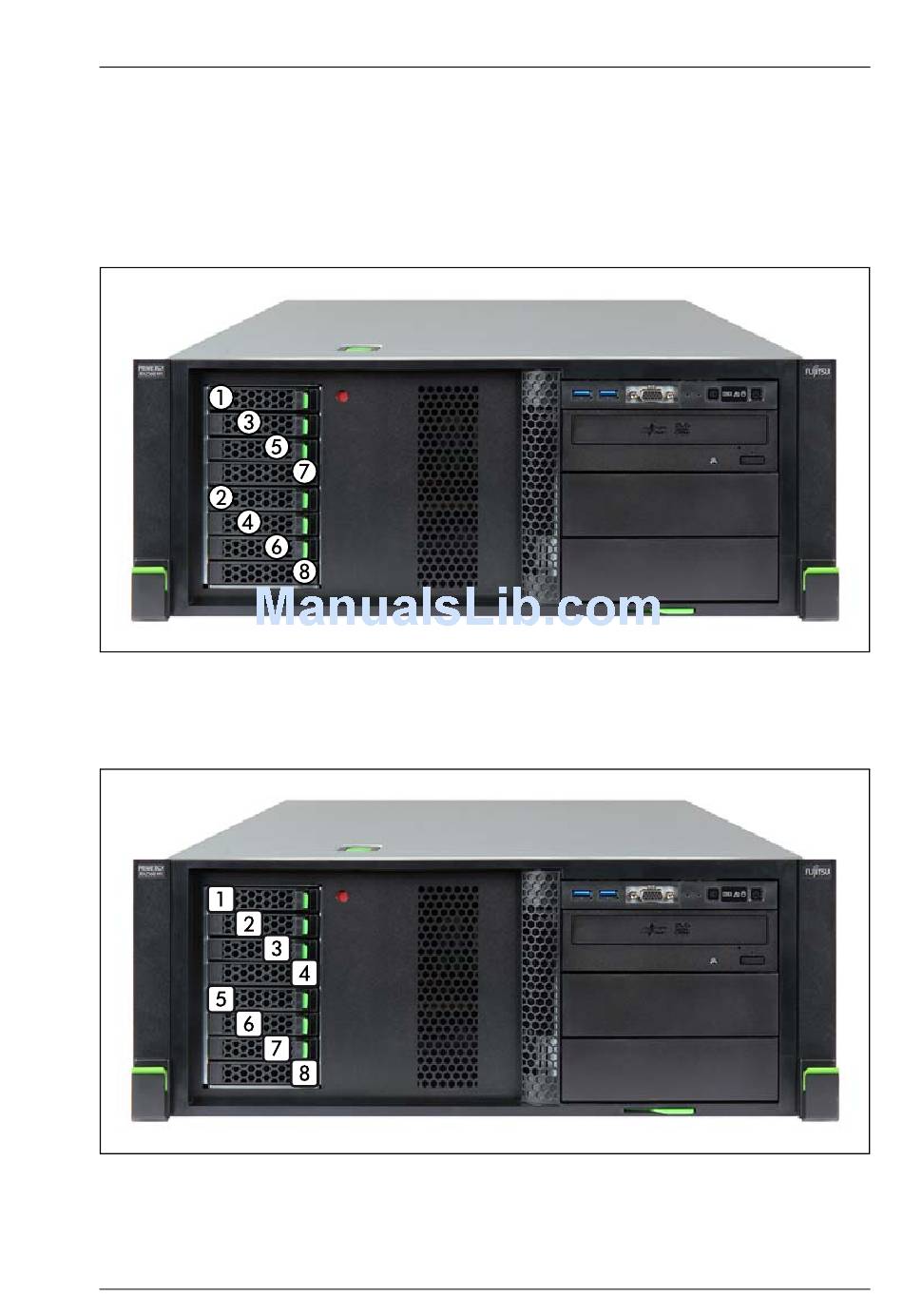

Figure 73: Mounting order for up to 8x 2.5-inch HDDs/SSDs
HDD/SSD naming scheme
Figure 74: Naming scheme for up to 8x 2.5-inch HDDs/SSDs
TX2560 M2 / RX2560 M2
Hard disk drive (HDD) / solid state drive (SSD)
Upgrade and Maintenance Manual
159
