Please note:
Due to their heavy weight, it
is recommended that sizes
2 and 3 are disassembled
before installing in the
section profi le. This
enables the mounting
frame of the HD 2/H to be
installed from below and
the HD 2/H to be added
from above.
1. Mark the position of the
lift rotate unit on the
mounting frame.
2. Remove the lift rotate
unit from the mounting
frame.
Please note:
Use a lifting aid to lift the
product. For example, the
ring bolts (X) in the base
plate serve as lifting points
for a round sling (see Fig. 8)
3. Mark the installation
position of HD 2/H.
4. Install the T-head bolts.
5. Insert the T-bolts into
the section profi le.
6. Hand tighten the collar
nuts
7.5.2

Install lift rotate unit HD 2/H size 2 and size 3 in section ST 2

X
X
=
5
6
SW13
4

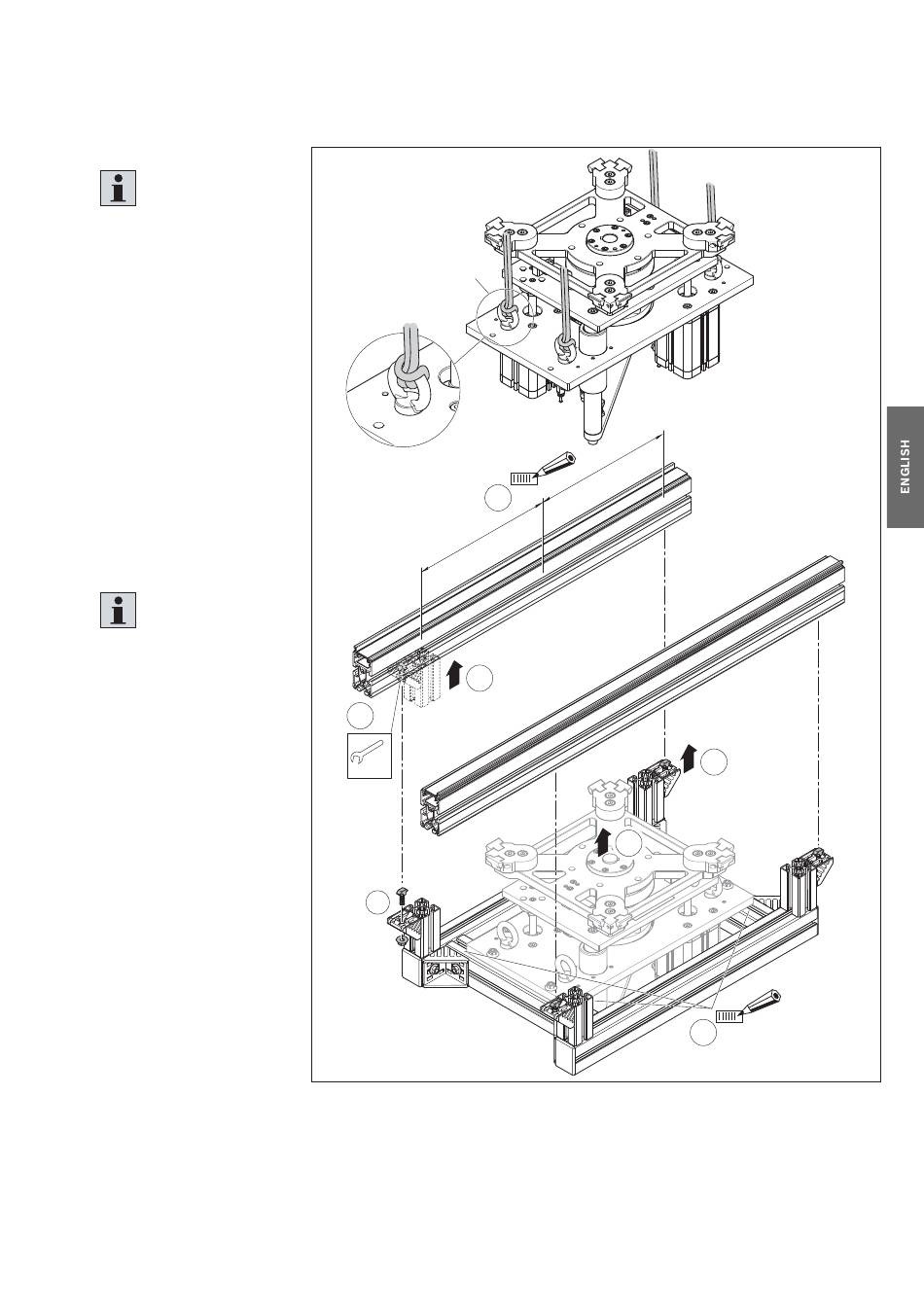

Fig. 8: Install lift rotate unit HD 2/H size 2 and 3 in section ST 2 (example shown here size 2 180°)
=
3
2
3 842 358 796/2015-01, MIT: HD 2/H, Bosch Rexroth AG
Installation 21/56
5
1
358 732-03
