Please note:
• With size 3 ensure that the
additional supports are
installed (mandatory).
• For size 2 with loads of
> 50 kg.
1.
Pre-install the lock nuts.
2.
Lubricate the threaded
spindle.
3.
Install the plates.
4.
Screw in the articulated
feet with a screwdriver.
5.
Mount the remaining
parts of the support.

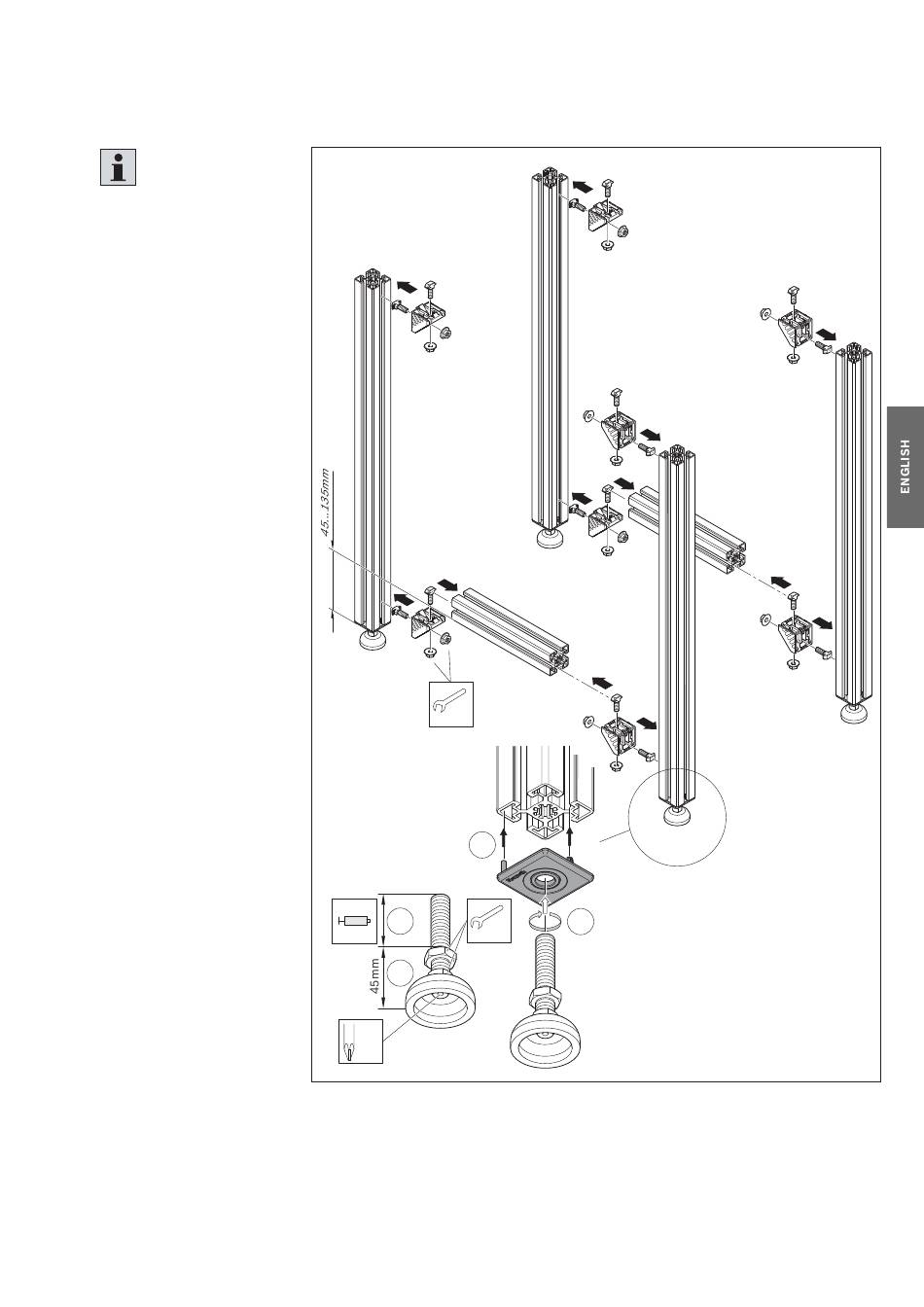

7.5.3
Install the additional supports
SW13
M
= 25Nm
D
3
2
SW13
M
D
1
PH3
Fig. 10:
Install the additional supports
4
= 25Nm
3 842 358 796/2015-01, MIT: HD 2/H, Bosch Rexroth AG
Installation
23/56
358 732-27
