Reference Main Power Fail Output T2-6 & T2-5
This output allows you to indicate the power source status. When there is a power failure from
the 18VAC input source, it will trigger the Main Power Fail Output from normally close contact

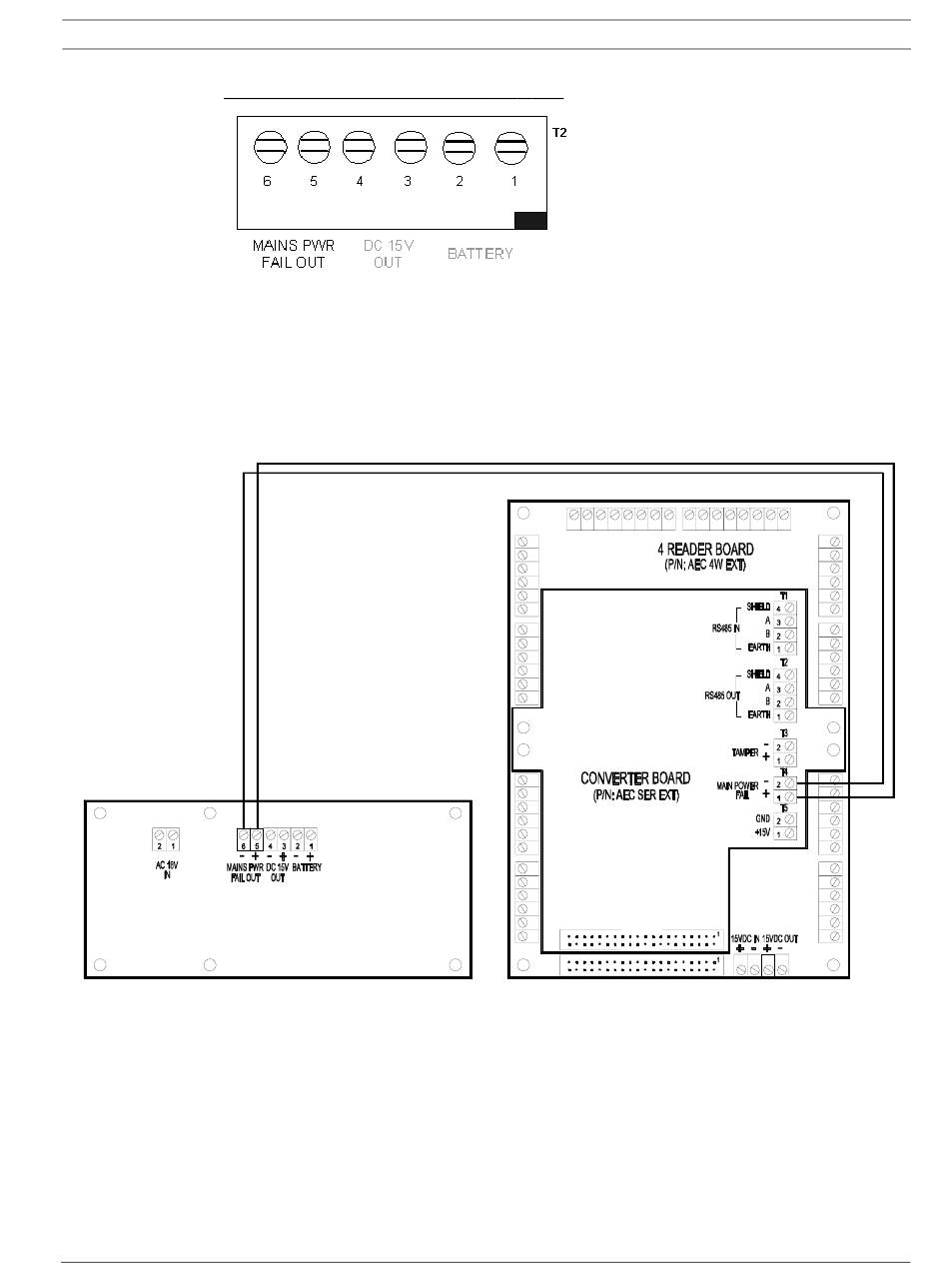

to open. To utilize this feature, you need to connect this output to the Converter Card's Mains
Power Fail input, as shown below.
