4.2 FACEPLATE INTERFACE

4.2 FACEPLATE INTERFACE
The keypad/display/LED interface is one of two alternate human interfaces supported. The other alternate human interface
is implemented via the URPC software. The UR faceplate interface is available in two configurations: horizontal or vertical.
The faceplate interface consists of several functional panels.
The faceplate is hinged to allow easy access to the removable modules. There is also a removable dust cover that fits over
the faceplate which must be removed in order to access the keypad panel. The following two figures show the horizontal
and vertical arrangement of faceplate panels.
STATUS
IN SERVICE
TROUBLE
TEST MODE
TRIP
ALARM
PICKUP
4
4-4
LED PANEL 1 LED PANEL 2
EVENT CAUSE
VOLTAGE
CURRENT RESET
FREQUENCY
OTHER USER 1
PHASE A
PHASE B USER 2
PHASE C
NEUTRAL/GROUND USER 3

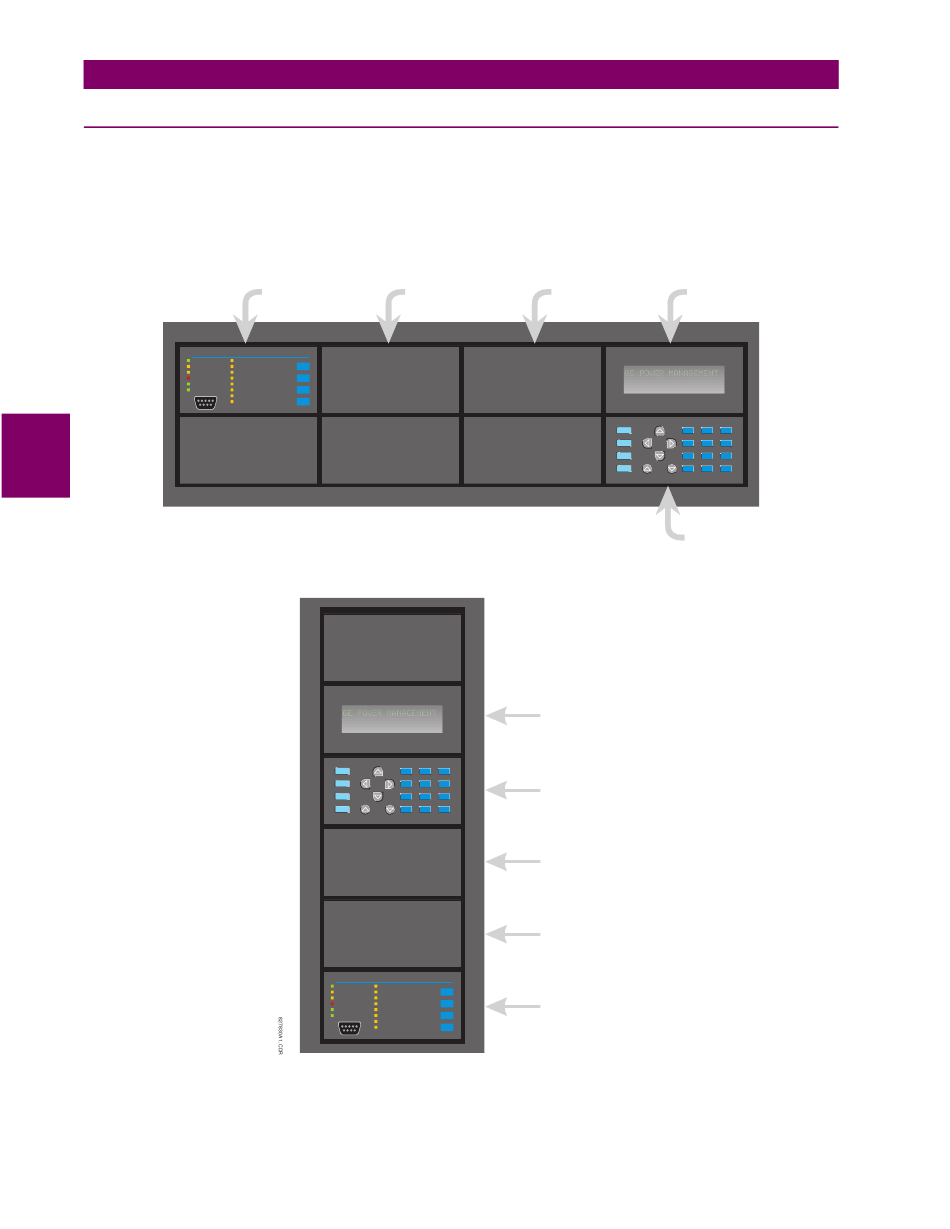

Figure 4–2: UR HORIZONTAL FACEPLATE PANELS
MENU 7
HELP MESSAGE 4
ESCAPE 1
VALUE 0
ENTER
STATUS EVENT CAUSE
IN SERVICE VOLTAGE
TROUBLE CURRENT
TEST MODE FREQUENCY
TRIP OTHER
ALARM PHASE A
PICKUP PHASE B
PHASE C
NEUTRAL/GROUND
Figure 4–3: UR VERTICAL FACEPLATE PANELS
L90 Line Differential Relay
LED PANEL 3
DISPLAY
8 9
5 6
KEYPAD
2 3
.
+/-
LED PANEL 3
LED PANEL 2
RESET
LED PANEL 1
USER 1
USER 2
USER 3
4 HUMAN INTERFACES

4.2.1 FACEPLATE

DISPLAY
MENU 7 8 9
HELP MESSAGE
4 5 6
ESCAPE 1 2 3
.
VALUE
ENTER 0 +/-
KEYPAD
