4 HUMAN INTERFACES
The URPC software main window supports the following primary display components:
a. Title bar which shows the pathname of the active data view
b. Main window menu bar
c. Main window tool bar
d. Site List control bar window
e. Settings List control bar window
f. Device data view window(s), with common tool bar
g. Settings File data view window(s), with common tool bar
h. Workspace area with data view tabs
i. Status bar
GE Power Management

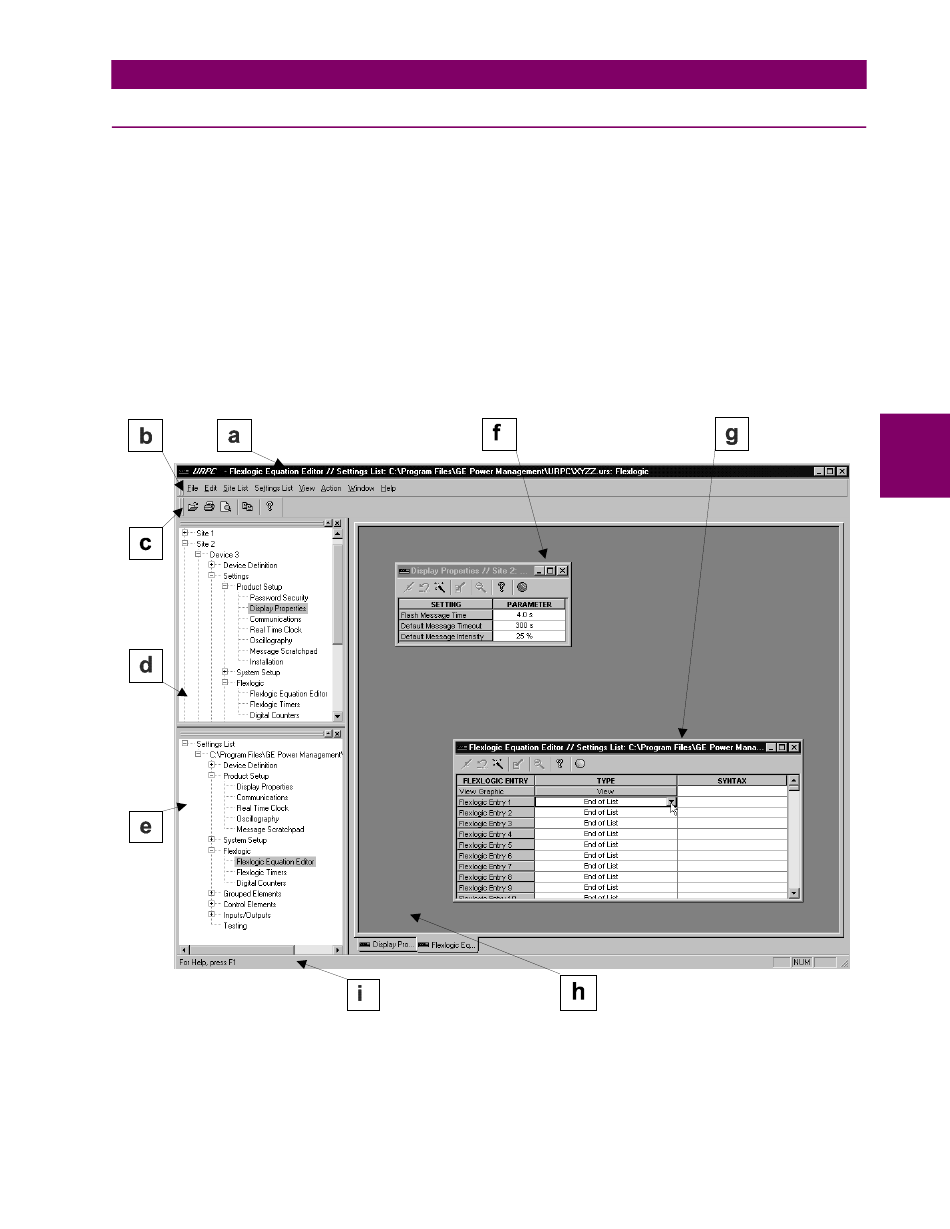

Figure 4–1: URPC SOFTWARE MAIN WINDOW
L90 Line Differential Relay
®
