Additional Information

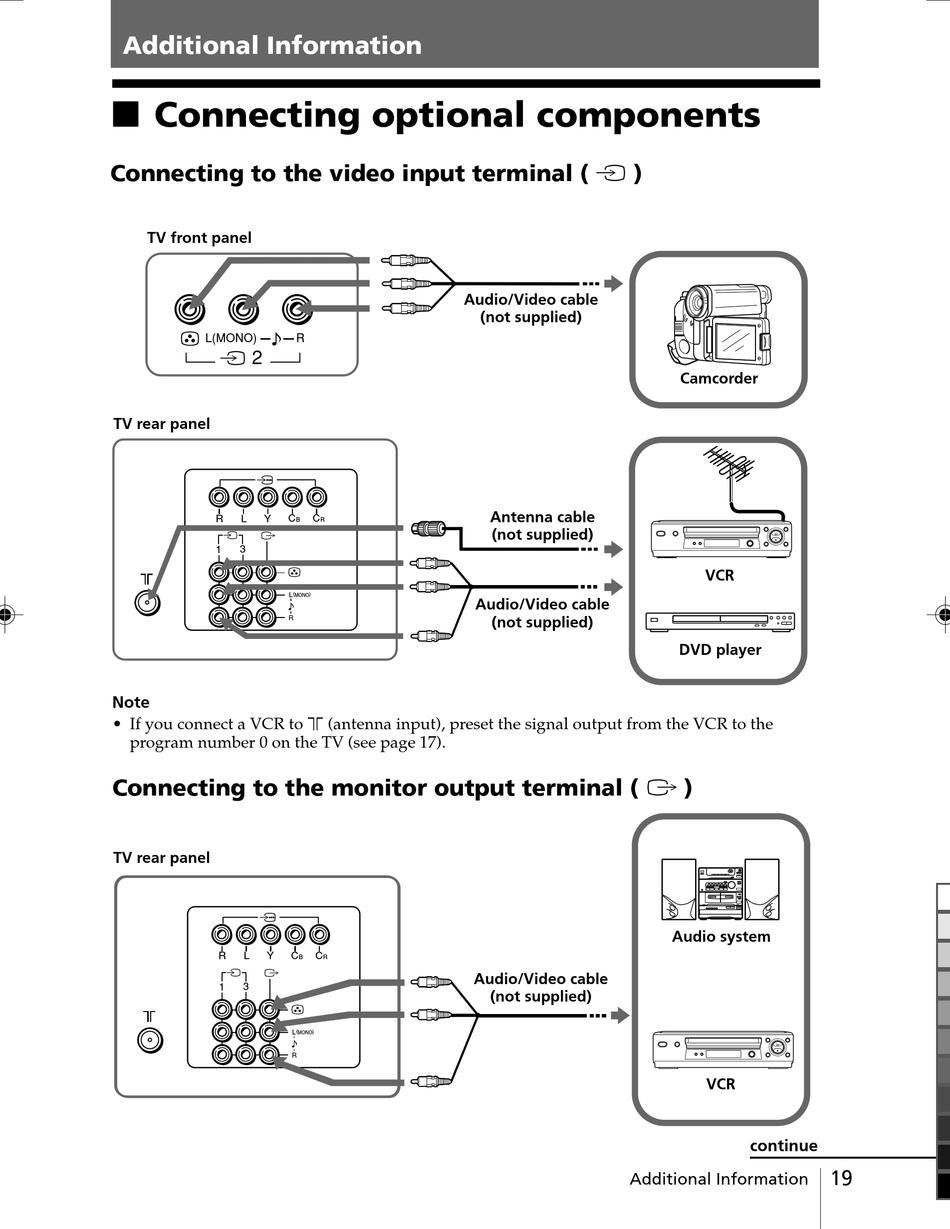

x Connecting optional components
Connecting to the video input terminal ( t )
TV front panel
L(MONO)
2
TV rear panel
R
L
Y
1
3
Note
• If you connect a VCR to 8 (antenna input), preset the signal output from the VCR to the
program number 0 on the TV (see page 17).
Connecting to the monitor output terminal ( T )
TV rear panel
R
L
Y
1
3
R
C
C
B
R
C
C
B
R
Audio/Video cable
(not supplied)
Antenna cable
(not supplied)
Audio/Video cable
(not supplied)
Audio/Video cable
(not supplied)
Camcorder
VCR
DVD player
Audio system
VCR
continue
Additional Information
19
