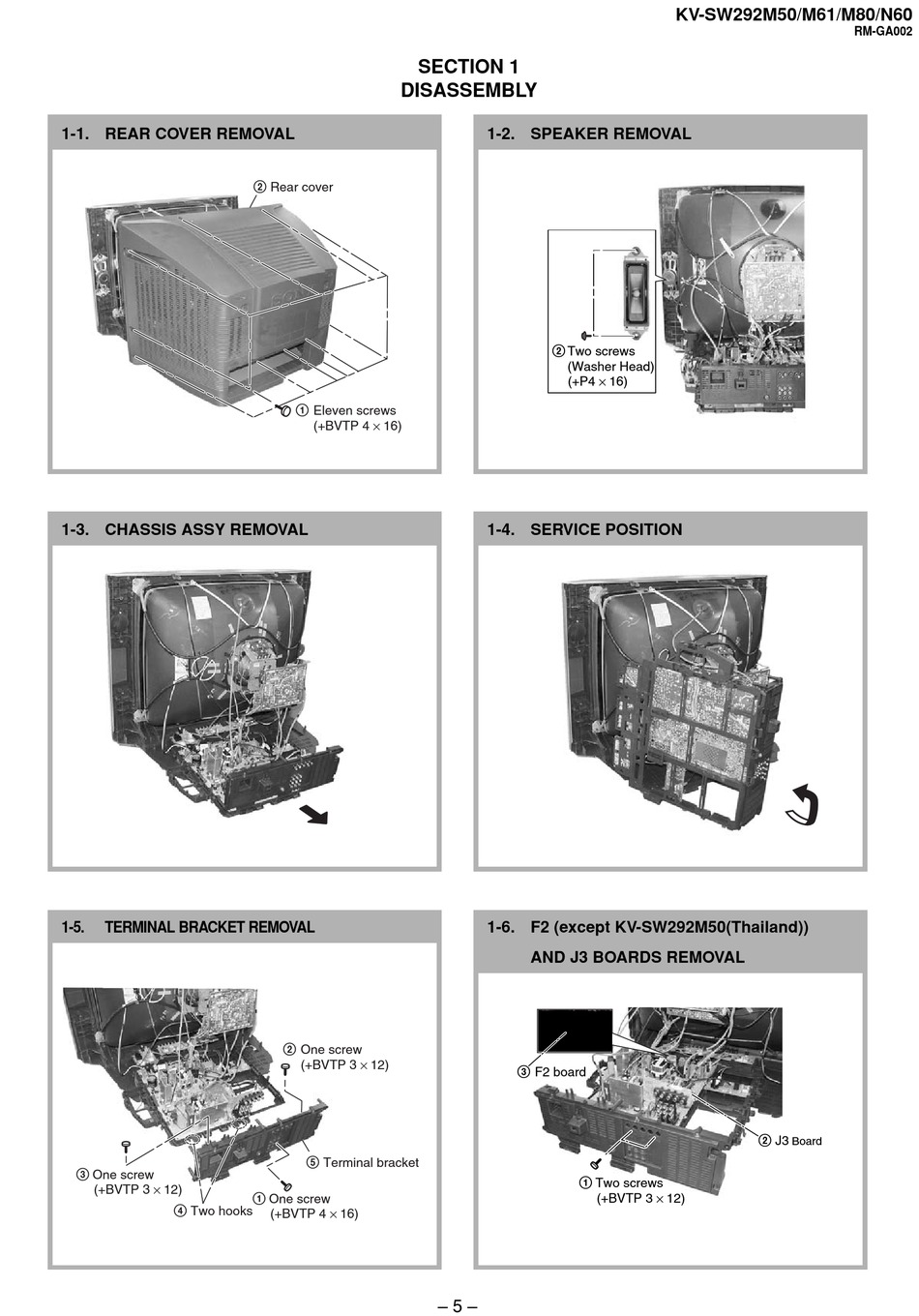

1-1. REAR COVER REMOVAL

1-3. CHASSIS ASSY REMOVAL

1-5.

TERMINAL BRACKET REMOVAL

3 One screw
(+BVTP 3 × 12)
4 Two hooks
SECTION 1

DISASSEMBLY

2 Rear cover
1 Eleven screws
(+BVTP 4 × 16)
2 One screw
(+BVTP 3 × 12)
5 Terminal bracket
1 One screw
(+BVTP 4 × 16)

1-2. SPEAKER REMOVAL

2 Two screws
(Washer Head)
(+P4 × 16)

1-4. SERVICE POSITION

1-6. F2 (except KV-SW292M50(Thailand))
AND J3 BOARDS REMOVAL
3 F2 board
1 Two screws
(+BVTP 3 × 12)
– 5 –
KV-SW292M50/M61/M80/N60
2 J3
Board
RM-GA002
