KV-SW292M50/M61/M80/N60
RM-GA002

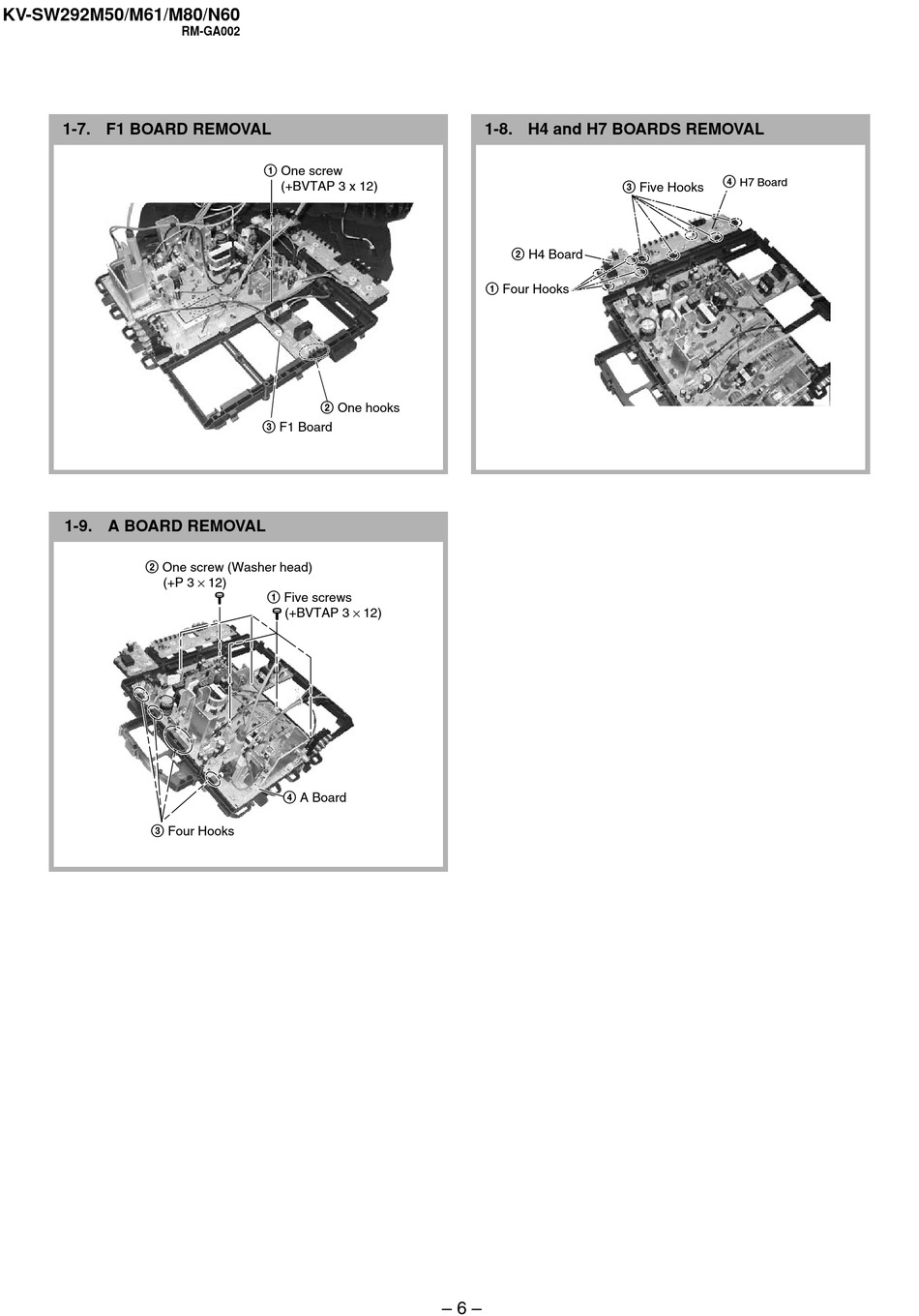

1-7. F1 BOARD REMOVAL

1-8. H4 and H7 BOARDS REMOVAL

1 One screw
4
H7 Board
3 Five Hooks
(+BVTAP 3 x 12)
2 H4 Board
1 Four Hooks
2 One hooks
3 F1 Board

1-9. A BOARD REMOVAL

2 One screw (Washer head)
(+P 3 × 12)
1 Five screws
(+BVTAP 3 × 12)
4 A Board
3 Four Hooks
– 6 –
