Installation

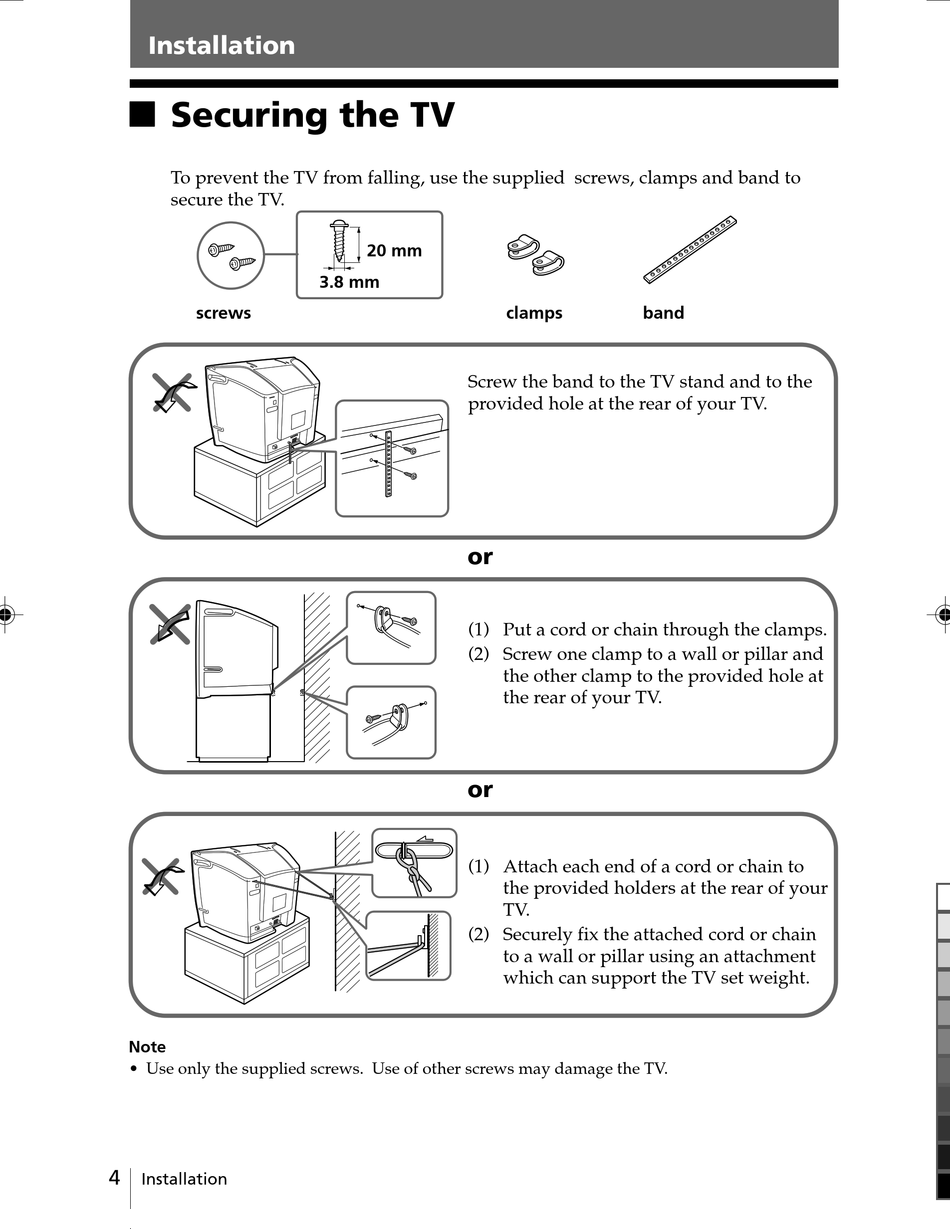

x Securing the TV
To prevent the TV from falling, use the supplied screws, clamps and band to
secure the TV.
screws
Note
• Use only the supplied screws. Use of other screws may damage the TV.
4
Installation
20 mm
3.8 mm
Screw the band to the TV stand and to the
provided hole at the rear of your TV.
or
(1) Put a cord or chain through the clamps.
(2) Screw one clamp to a wall or pillar and
or
(1) Attach each end of a cord or chain to
(2) Securely fix the attached cord or chain
clamps
band
the other clamp to the provided hole at
the rear of your TV.
the provided holders at the rear of your
TV.
to a wall or pillar using an attachment
which can support the TV set weight.
