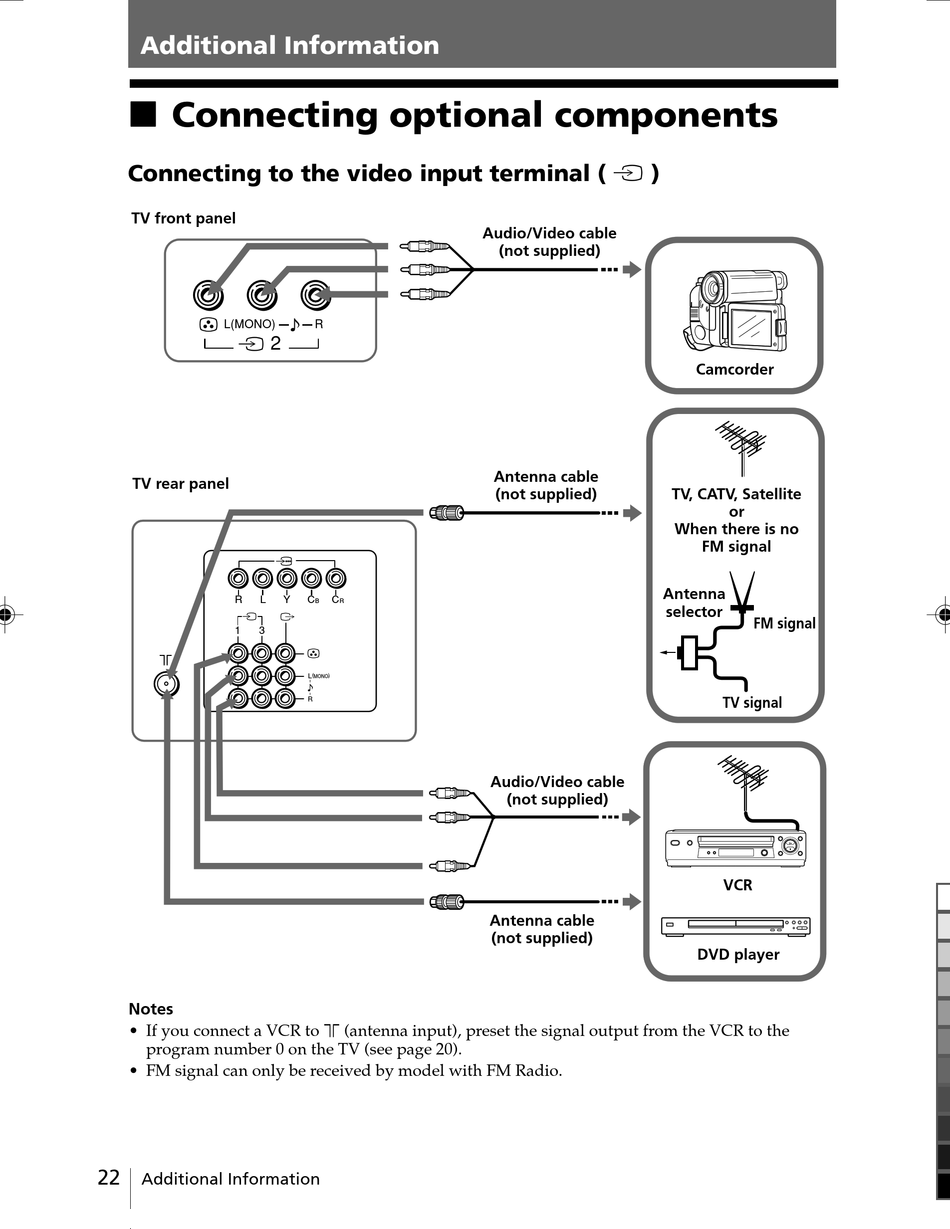

Additional Information

x Connecting optional components
Connecting to the video input terminal ( t )
TV front panel
L(MONO)
TV rear panel
R
L
3
1
Notes
• If you connect a VCR to 8 (antenna input), preset the signal output from the VCR to the
program number 0 on the TV (see page 20).
• FM signal can only be received by model with FM Radio.
22
Additional Information
R
2
C
Y
C
B
R
Audio/Video cable
(not supplied)
Antenna cable
(not supplied)
Audio/Video cable
(not supplied)
Antenna cable
(not supplied)
Camcorder
TV, CATV, Satellite
or
When there is no
FM signal
Antenna
selector
FM signal
TV signal
VCR
DVD player
