KV-SW292M50/M61/M80/N60

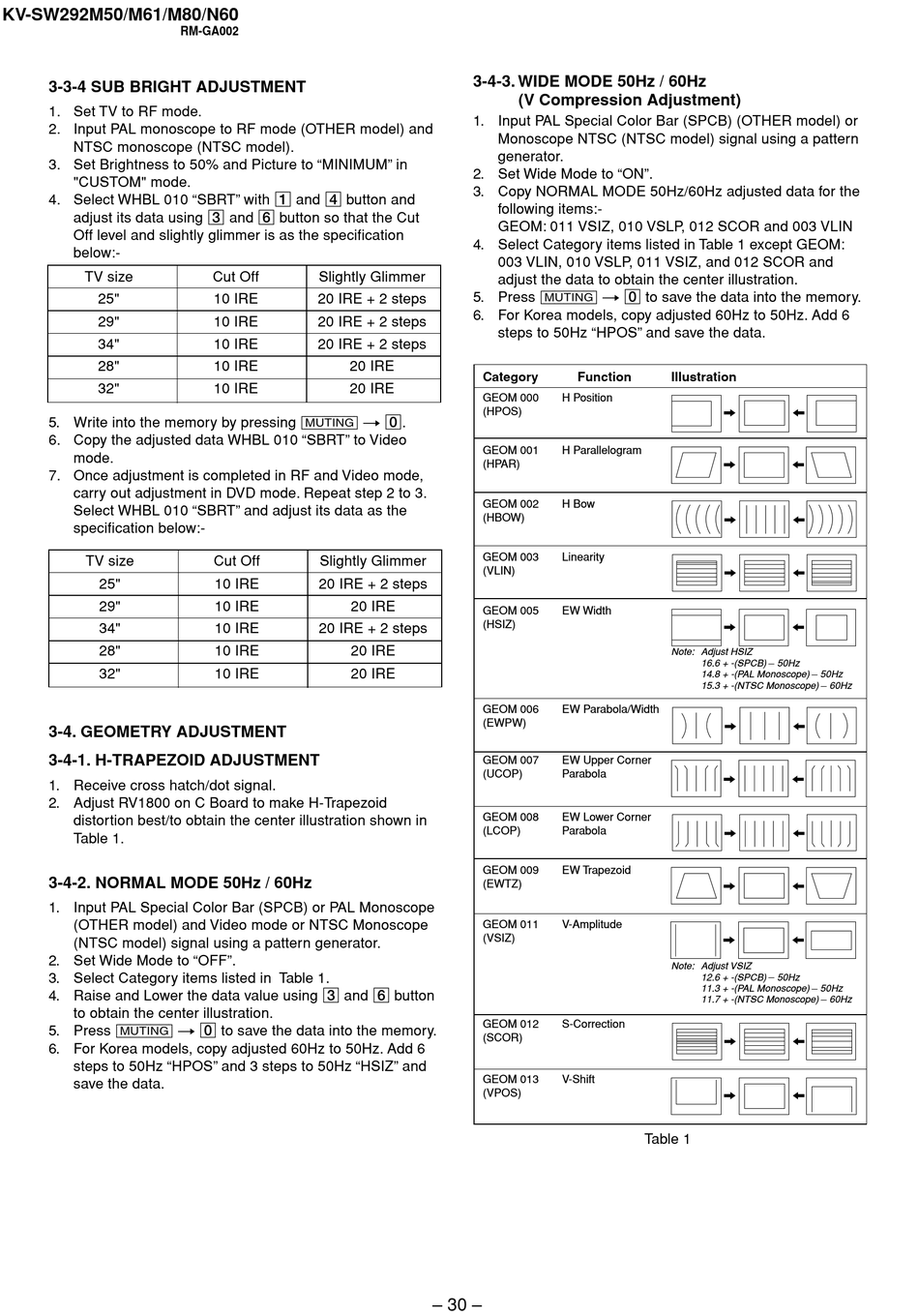

3-3-4 SUB BRIGHT ADJUSTMENT
1. Set TV to RF mode.
2. Input PAL monoscope to RF mode (OTHER model) and
NTSC monoscope (NTSC model).
3. Set Brightness to 50% and Picture to "MINIMUM" in
"CUSTOM" mode.
4. Select WHBL 010 "SBRT" with 1 and 4 button and
adjust its data using 3 and 6 button so that the Cut
Off level and slightly glimmer is as the specification
below:-
TV size
25"
29"
34"
28"
32"
5. Write into the memory by pressing [MUTING] t -.
6. Copy the adjusted data WHBL 010 "SBRT" to Video
mode.
7. Once adjustment is completed in RF and Video mode,
carry out adjustment in DVD mode. Repeat step 2 to 3.
Select WHBL 010 "SBRT" and adjust its data as the
specification below:-
TV size
25"
29"
34"
28"
32"
3-4. GEOMETRY ADJUSTMENT
3-4-1. H-TRAPEZOID ADJUSTMENT
1. Receive cross hatch/dot signal.
2. Adjust RV1800 on C Board to make H-Trapezoid
distortion best/to obtain the center illustration shown in
Table 1.
3-4-2. NORMAL MODE 50Hz / 60Hz
1. Input PAL Special Color Bar (SPCB) or PAL Monoscope
(OTHER model) and Video mode or NTSC Monoscope
(NTSC model) signal using a pattern generator.
2. Set Wide Mode to "OFF".
3. Select Category items listed in Table 1.
4. Raise and Lower the data value using 3 and 6 button
to obtain the center illustration.
5. Press [MUTING] t - to save the data into the memory.
6. For Korea models, copy adjusted 60Hz to 50Hz. Add 6
steps to 50Hz "HPOS" and 3 steps to 50Hz "HSIZ" and
save the data.
RM-GA002
Cut Off
Slightly Glimmer
10 IRE
20 IRE + 2 steps
10 IRE
20 IRE + 2 steps
10 IRE
20 IRE + 2 steps
10 IRE
20 IRE
10 IRE
20 IRE
Cut Off
Slightly Glimmer
10 IRE
20 IRE + 2 steps
10 IRE
20 IRE
10 IRE
20 IRE + 2 steps
10 IRE
20 IRE
10 IRE
20 IRE
3-4-3. WIDE MODE 50Hz / 60Hz
(V Compression Adjustment)
1. Input PAL Special Color Bar (SPCB) (OTHER model) or
Monoscope NTSC (NTSC model) signal using a pattern
generator.
2. Set Wide Mode to "ON".
3. Copy NORMAL MODE 50Hz/60Hz adjusted data for the
following items:-
GEOM: 011 VSIZ, 010 VSLP, 012 SCOR and 003 VLIN
4. Select Category items listed in Table 1 except GEOM:
003 VLIN, 010 VSLP, 011 VSIZ, and 012 SCOR and
adjust the data to obtain the center illustration.
5. Press [MUTING] t - to save the data into the memory.
6. For Korea models, copy adjusted 60Hz to 50Hz. Add 6
steps to 50Hz "HPOS" and save the data.
Category
Function
GEOM 000
H Position
(HPOS)
GEOM 001
H Parallelogram
(HPAR)
GEOM 002
H Bow
(HBOW)
GEOM 003
Linearity
(VLIN)
GEOM 005
EW Width
(HSIZ)
GEOM 006
EW Parabola/Width
(EWPW)
GEOM 007
EW Upper Corner
(UCOP)
Parabola
GEOM 008
EW Lower Corner
(LCOP)
Parabola
GEOM 009
EW Trapezoid
(EWTZ)
GEOM 011
V-Amplitude
(VSIZ)
GEOM 012
S-Correction
(SCOR)
GEOM 013
V-Shift
(VPOS)
– 30 –
Illustration
Note: Adjust HSIZ
16.6 + -(SPCB) _ 50Hz
14.8 + -(PAL Monoscope) _ 50Hz
15.3 + -(NTSC Monoscope) _ 60Hz
Note: Adjust VSIZ
12.6 + -(SPCB) _ 50Hz
11.3 + -(PAL Monoscope) _ 50Hz
11.7 + -(NTSC Monoscope) _ 60Hz
Table 1
