Running The Petalinux Demo - Xilinx Spartan-6 FPGA SP605 Embedded Kit Getting Started

Now you are ready to run the PetaLinux pre-built demo provided with this kit. Follow the
next set of instructions to run the demo.

Running the PetaLinux Demo

7.
X-Ref Target - Figure 6
8.
X-Ref Target - Figure 7
Note:
image for the 12.1 release.
9.
10. The PetaLinux image provided with the Embedded Kit supports many basic Linux
Congratulations! You have now run the PetaLinux demo using the SP605 board with Spartan-6
LX45T FPGA and the MicroBlaze soft processor. Because you are provided with a
fully configured MicroBlaze Processor Subsystem, you can start developing
embedded software. Also because you are using an FPGA, you can fully
customize this processor system. To do this, you have to install the ISE Design
SP605 Getting Started Guide
UG727 (v1.1) June 21, 2010
Press the SYSACE Reset button (SW9).

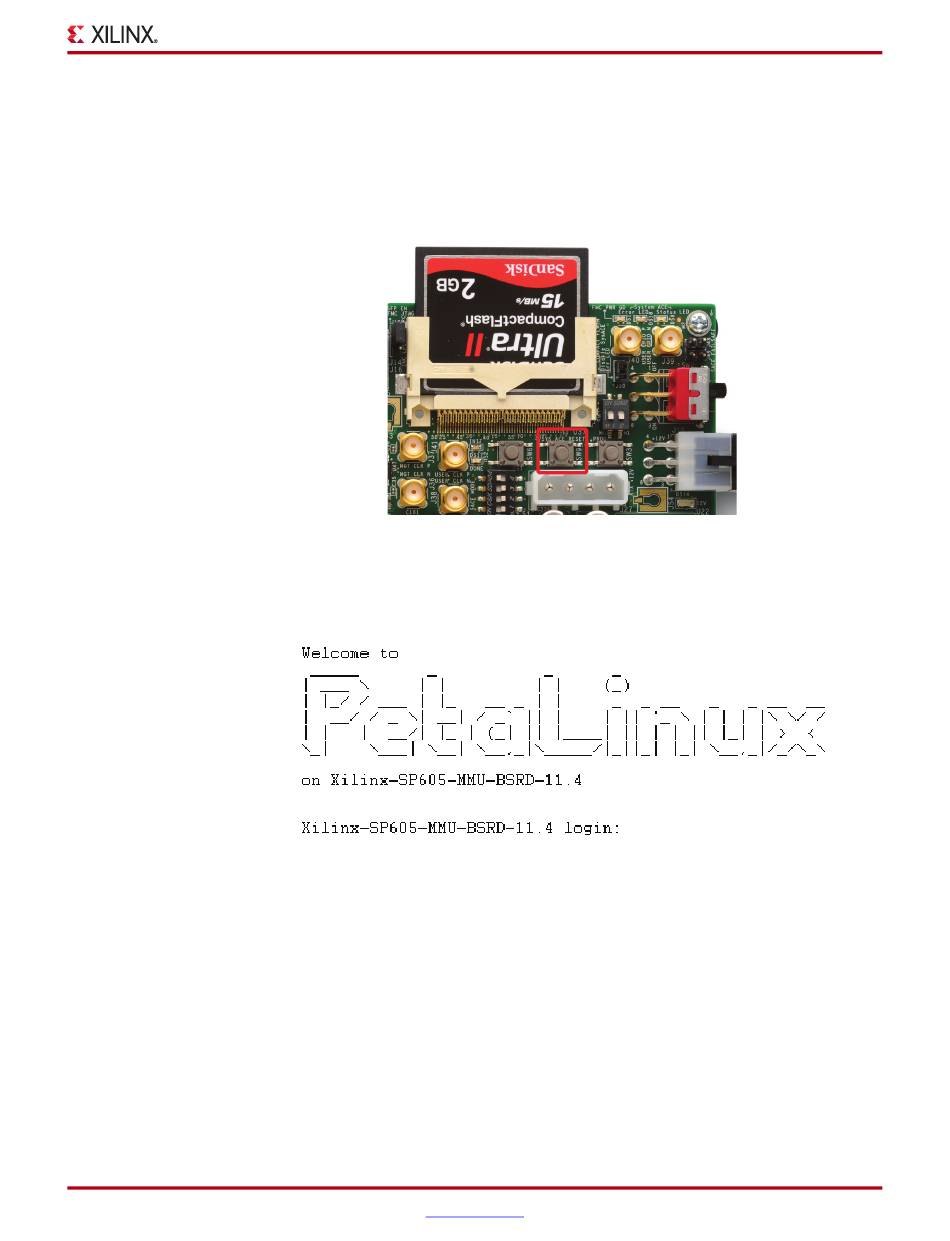

Figure 6: SP605 SYSACE RESET Button
After ~20 seconds, the PetaLinux boot output should be displayed on the serial
communications window as shown in
Figure 7: PetaLinux UART Output
The PetaLinux boot image in
Login with user name as root and password as root.
commands. A list of some of the commands and tools available to be run can be found
in the /bin directory.
www.xilinx.com
Figure 7.
Figure 7
refers to version 11.4. However, this is the valid boot
Introduction
UG727_27_051110
UG727_14_111309
17
