With MK you can define audio switching for each preset. MK can route three audio lines from/to computer
sound card (LINE IN, LINE OUT and MIC IN) and three lines for transceiver AF IN, AF OUT (radio rear
panel) and MIC IN (radio front microphone input). You can define position of audio switching for each
operation state.
States can be:
1. RX = receiving
2. TX - PTT = transmitting (any PTT event except foot switch or hand mic PTT event)
3. TX - Foot switch = transmitting with pressed foot switch or hand mic PTT (foot switch event)
Switching positions are:
microHAM © 2004 All rights reserved

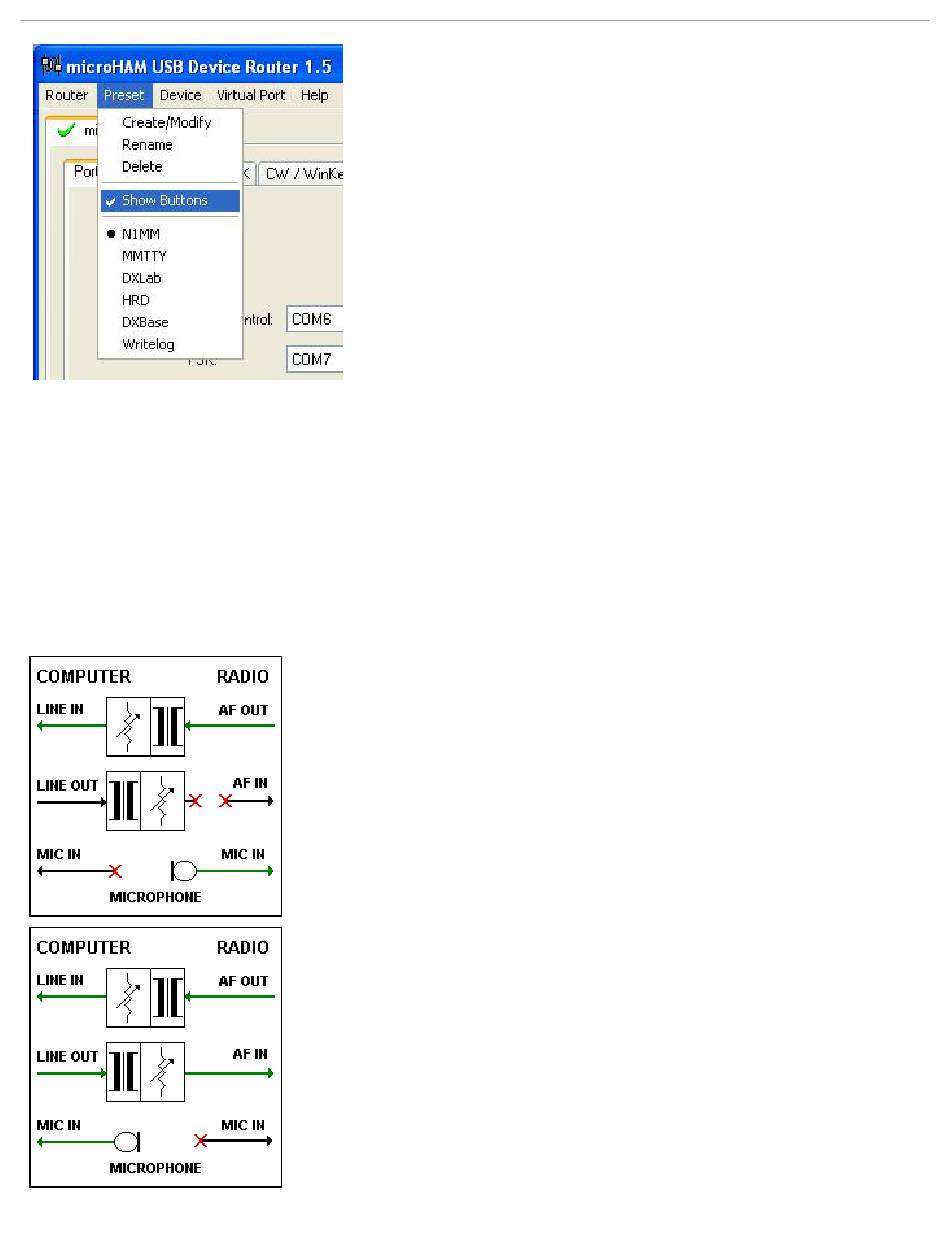

To create, modify, rename or delete a preset use commands from
menu "Preset". Number of presets is limited to twelve (12).
There are several ways to apply some preset. You can use
command from menu "Preset" where all created presets were
added as menu item. Also pop-up menu invoked by right click on
the system tray icon when the router is minimized contains these
items. The another way is to push the preset button. To show
preset buttons the menu item "Preset/Show Buttons" must be
checked. Buttons are placed above the status bar and contain
control lamps that indicate which preset is currently applied.
Presets are stored to the registry at program exit together with the
current router state.
Audio
A - Audio output from radio goes to sound card Line In. Audio output from
computer is disabled and microphone is connected to the radio front mic
jack.
B - Audio output from radio goes to sound card Line In. Audio output from
computer is enabled and goes to rear radio AF In. Microphone is
connected to the computer sound card mic jack.
20
