Chapter 3. Configuration
3.3 RX3i CPU settings
EIS001 modules require some amount of background scan time to efficiently transfer point data to
and from the RX3i CPU. The minimum 5ms setting needs to be set in the Background Window Timer
parameter in the CPU Scan tab of the hardware configuration screen for the CPU. More background
scan time may be needed if multiple EIS001 modules are used.

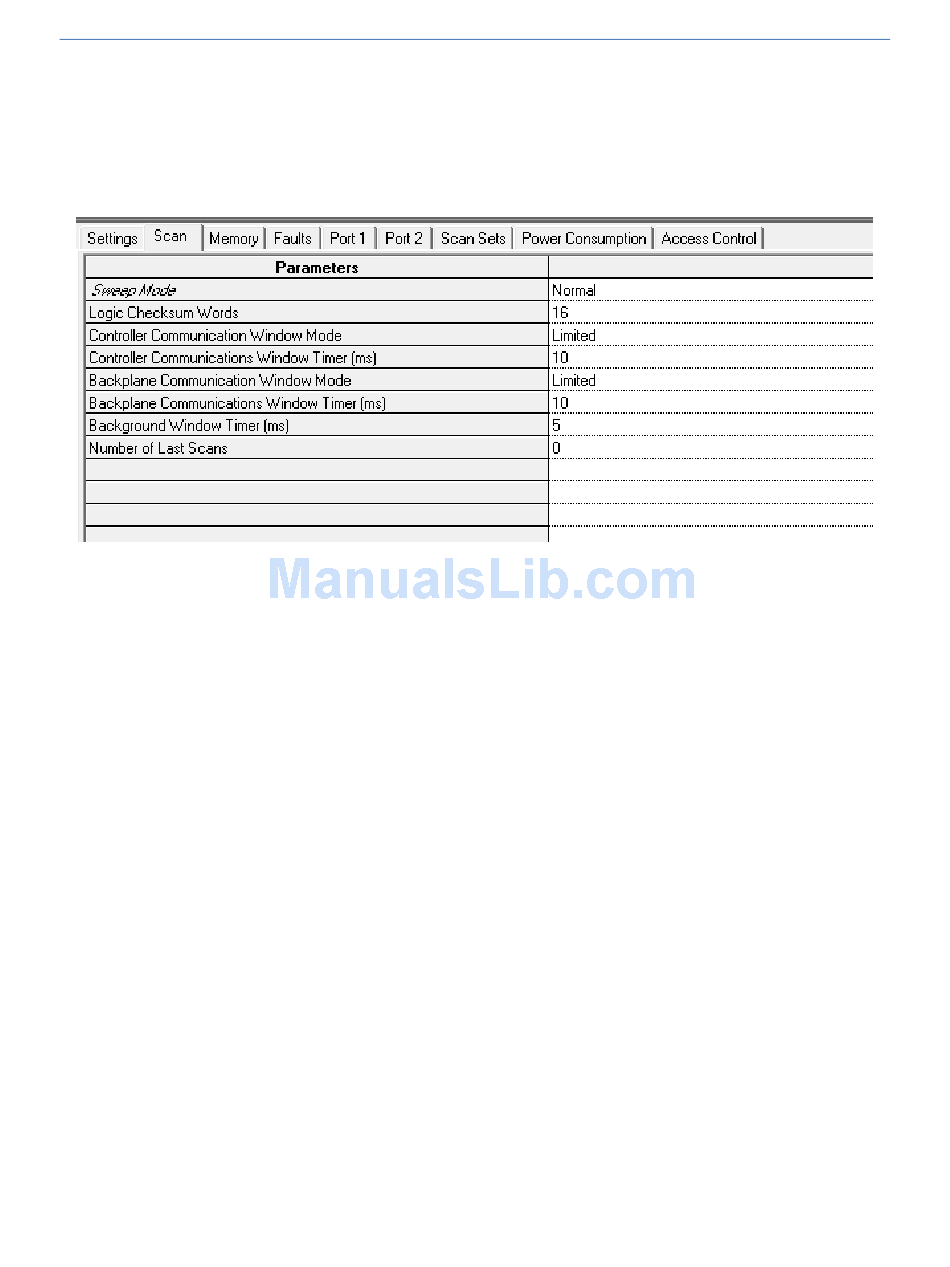

Figure 7: CPU Configuration Showing Example of Scan Settings (Scan Tab)

GFK-2949C July 2017 21
