Chapter 3. Configuration
3.5.2
Configuring PROFINET Controller Parameters
Configure the PROFINET Controller parameters by editing the tabs as appropriate. The parameters are divided
among the tabs, and the options are available in the Inspector view.
3.5.2.1
PROFINET Controller Parameters (Settings Tab)

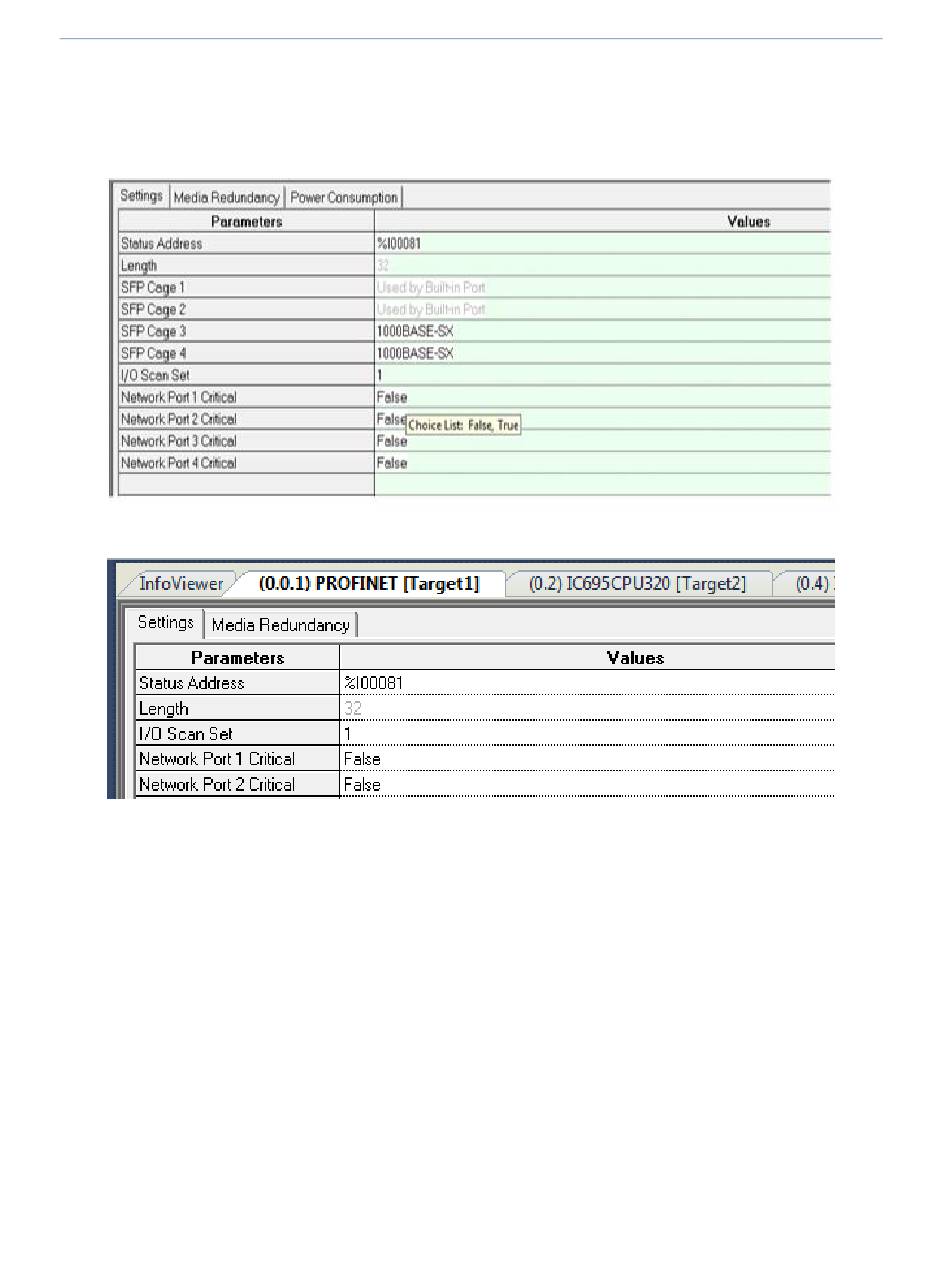

Figure 41: PROFINET Controller Settings Tab (Embedded PNC)
Note that the embedded PROFINET Controller does not have any SFP cages, and therefore has
options for two ports, versus the four ports available in the PNC001.
58
PACSystems* RX3i & RSTi-EP PROFINET IO-Controller User Manual
Figure 40: PROFINET Controller Settings Tab (PNC001)
GFK-2571N
